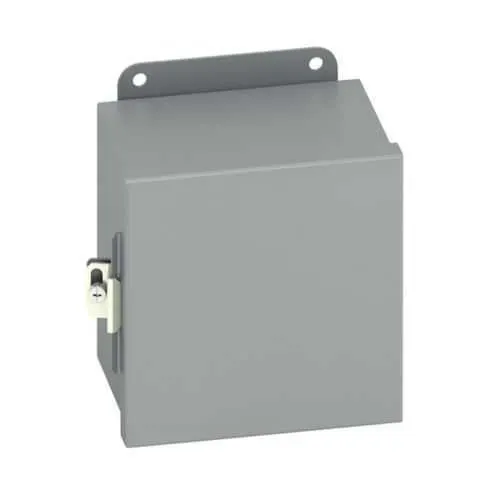

Eaton 643-12CHC JIC Panel Enclosure - NEMA 12
Part Number: 643-12CHC
Quick Summary
Eaton 643-12CHC JIC panel enclosure provides rugged, wall-mounted protection for electrical control panels in light industrial settings. This compact housing helps keep sensitive components safe from dust, moisture, and accidental contact, reducing downtime and maintenance costs. Many projects struggle with cramped spaces and difficult gasket sealing; the 12CHC model provides a tight, reliable seal with a seamless poured-in gasket for effective environmental protection. Built to UL 508A, CSA C22.2, and NEMA 12 standards, it supports compliant, safe installations in harsh environments. With its carbon steel body, 16 gauge walls, and a heavy-duty hinged door, this enclosure delivers durability without sacrificing ease of access or installation speed. It pairs well with wall-mounted control panels and small machine enclosures.
Product Information
Extended Description
643-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 3" length, 4" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
643-12CHC
UPC
782051750102
Product Length/Depth
3 in
Product Height
6 in
Product Width
4 in
Product Weight
2.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
Compact dimensions enable space-conscious installations, reducing cabinet footprint and shortening install time while preserving interior mounting room for electrical components. The 6 in H Ă— 4 in W Ă— 3 in D footprint supports control panels in tight mechanical spaces, enabling efficient layout on equipment carts or factory walls. Carbon steel with 16 gauge walls provides robust, impact-resistant protection against industrial wear, improving uptime in demanding environments and ensuring lasting service life. The seamless poured-in-place gasket delivers enhanced ingress protection, minimizing dust and moisture ingress and lowering maintenance cycles. A hinged cover with a continuous piano hinge promotes quick, tool-free access for routine servicing and repairs, while external mounting feet simplify precise alignment and secure wall mounting. NEMA 12, UL 508A, and CSA C22.2 certifications underpin compliance, safety, and reliability across machine-building and panel-assembly projects. The small single-door design reduces panel depth, easing door clearance in crowded control rooms and aligns with common field-service configurations. Painted ANSI 61 gray finish adds surface protection against corrosion and environmental exposure, delivering a durable, professional appearance on shop walls.
Get a Quick Quote for a Eaton 643-12CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 643-12CHC?
Enquire Now
FAQs
The 643-12CHC is designed for wall mounting with external mounting feet, supporting quick alignment and secure attachment. Ensure ventilation and clearance for hinge operation; allow room for a hinged door to open fully and access internal components. Use appropriate fasteners for carbon steel, and verify surface flatness to maintain seal integrity.
Dimensions are 6 in high, 4 in wide, 3 in deep, with a 16 gauge carbon steel body and a painted ANSI 61 gray finish. The enclosure weighs about 2.7 lb and features a hinged cover with a continuous piano hinge, external feet, and NEMA 12 protection for dust and moisture.
Yes. The NEMA 12 rating, plus a seamless poured in-place gasket and a hinged door, provides a secure seal against dust and moisture ingress, making it appropriate for factory floors, machine enclosures, and panel housings in challenging settings.
The 643-12CHC complies with UL 508A and CSA C22.2 safety standards, and it carries a NEMA 12 rating, ensuring safe operation in harsh environments and simplifying regulatory approvals for electrical installations.
External mounting feet simplify wall mounting, allow precise positioning, and reduce the effort required to level the enclosure. They also facilitate field wiring and panel mounting checks, improving serviceability and reducing downtime during upgrades or maintenance.
