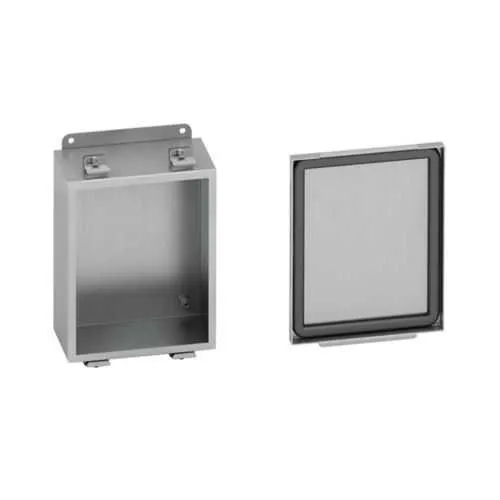

Eaton 643-4XALC JIC panel enclosure - NEMA 4X
Part Number: 643-4XALC
Quick Summary
Eaton 643-4XALC JIC panel enclosure is a rugged aluminum enclosure designed to protect electrical controls in harsh industrial environments. That protection helps prevent costly downtime when dust, moisture, and other contaminants threaten sensitive gear. With UL 50, CSA C22.2, and NEMA 4X ratings, it delivers reliable safety and corrosion resistance for both indoor and outdoor installations. As a wall-mounted, small single door enclosure with external mounting feet, it simplifies retrofits and new builds while the screw cover reduces field sealing time. The compact 6x4x3 in footprint and 1.5 lb weight support quick, installer-friendly deployments in space-constrained areas. It also integrates with panel mounting provisions and stainless door clamps for additional security.
Product Information
Extended Description
643-4XALC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 3" length, 4" width, NEMA 4X, Screw cover, 4XALC enclosure, Wall mount, Small single door, External mounting feet, Aluminum, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
643-4XALC
UPC
782051700886
Product Length/Depth
3 in
Product Height
6 in
Product Width
4 in
Product Weight
1.5 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Aluminum
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XALC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4X
Country of origin
US
Aluminum construction with a 14-gauge wall delivers durable protection while keeping weight manageable, reducing shipping costs for the Eaton JIC panel enclosure. This translates to faster installation on demanding plant walls and simpler handling in equipment rooms. The 6x4x3 in footprint makes it a compact solution for space-constrained control panels in manufacturing lines and packaging areas. A seamless poured-in-place gasket and NEMA 4X rating provide robust ingress protection, lowering maintenance downtime in dusty or washdown environments and enhancing reliability of electrical controls. The screw cover and small single-door design enable quick field sealing and easy access for routine maintenance, reducing service time without compromising enclosure integrity. Panel mount provisions and stainless door clamps improve compatibility with installed equipment and secure closure in vibration-prone settings, supporting retrofits and new-build projects. Finish, color, and material choices help meet site aesthetics and inspection requirements while delivering long-term protection.
Get a Quick Quote for a Eaton 643-4XALC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 643-4XALC?
Enquire Now
FAQs
The 643-4XALC is designed for wall mounting with external mounting feet, enabling straightforward installation on different wall types and orientations. This setup supports secure mounting for control panels in tight spaces and retrofit projects.
Yes. Rated NEMA 4X and featuring a seamless gasket, UL 50 and CSA C22.2 certifications, the enclosure provides reliable ingress protection for both indoor and sheltered outdoor installations, including washdown areas.
The enclosure measures 6 inches high, 4 inches wide, and 3 inches deep, with a weight of approximately 1.5 pounds, making it compact for space-constrained control panels.
It carries UL 50, CSA C22.2, and NEMA ratings, which verify electrical enclosure safety and performance. This helps with regulatory compliance, procurement approvals, and reducing risk in industrial installations.
Ideal for small control panels in manufacturing, packaging lines, and other industrial environments, the enclosure supports panel mounting provisions, stainless door clamps, and a screw cover for quick maintenance and secure closure.
