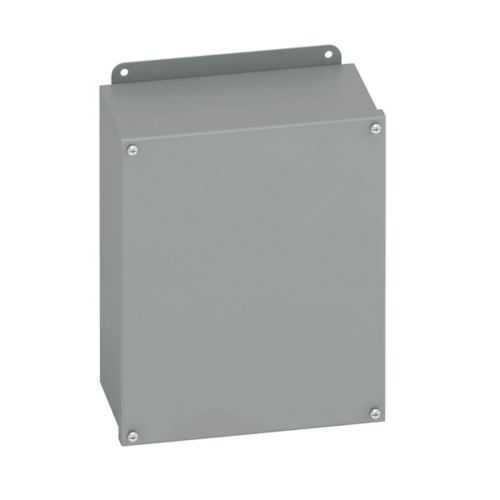

Eaton 644-12SC JIC Panel Enclosure - UL 50 / NEMA 12
Part Number: 644-12SC
Quick Summary
The Eaton 644-12SC JIC panel enclosure is a compact wall-mounted carbon steel enclosure designed for electrical control panels. For engineers faced with space constraints and demanding environments, reliable mounting, gasket integrity, and seal durability matter most. UL 50, CSA C22.2, and NEMA 12 ratings ensure safe, compliant protection in harsh environments. Its wall-mount design with external feet and a screw cover supports quick installation and easy service, reducing downtime and lifecycle costs. With carbon steel construction, 16-gauge walls, and an ANSI 61 gray painted finish, it withstands everyday industrial handling while maintaining a professional enclosure appearance. This makes it a reliable choice for panel builders.
Product Information
Extended Description
644-12SC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 4" width, NEMA 12, Screw cover, 12SC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
644-12SC
UPC
782051320008
Product Length/Depth
4 in
Product Height
6 in
Product Width
4 in
Product Weight
2.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12SC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Captive plated screws, panel mount provisions
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: The enclosure utilizes a NEMA 12 rating with UL 50 and CSA C22.2 certifications to deliver ingress protection suitable for dusty and oil-containing environments, enhancing system reliability and reducing field service calls in manufacturing lines. Application: ideal for industrial control panels in machine shops and processing plants. Feature → Business Impact → Application: Its compact 6 in height, 4 in width, and 4 in depth (2.8 lb) enable space-efficient installations and straightforward retrofits in crowded control enclosures. Application: retrofitting existing panels in tight spaces. Feature → Business Impact → Application: Carbon steel, 16 gauge walls with ANSI 61 gray painted finish provide robust mechanical protection and corrosion resistance, lowering replacement costs and sustaining a professional look. Application: panel housings in service corridors and production floors. Feature → Business Impact → Application: External mounting feet and a screw cover simplify field mounting and maintenance, minimizing installation time and hardware loss. Application: wall-mounted installations in new builds or upgrades. Feature → Business Impact → Application: Captive plated screws and panel mount provisions improve maintenance efficiency and reduce hardware misplacement, supporting fast door access during audits or repairs. Application: routine inspections in regulated environments.
Get a Quick Quote for a Eaton 644-12SC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 644-12SC?
Enquire Now
FAQs
The 644-12SC is designed for wall mounting with external mounting feet, and it features a screw cover for secure closure. This combination supports rapid installation in tight spaces and straightforward field maintenance, while preserving panel integrity in dusty or oily environments commonly found in manufacturing or packaging lines.
Yes. The enclosure carries a NEMA 12 rating and UL 50 with CSA C22.2 certification, ensuring protection against dust, light splashes, and non-hazardous oil environments. It is well suited for indoor industrial settings such as machine rooms, process floors, and control panels in manufacturing environments where reliable enclosure protection is essential.
The enclosure measures 6 inches high, 4 inches wide, and 4 inches deep, with a weight of approximately 2.8 pounds. The compact footprint and light weight simplify handling, mounting, and retrofits into tight spaces, enabling efficient panel layouts and easier service access during routine maintenance.
Constructed from carbon steel with 16-gauge walls and a painted ANSI 61 gray finish, the enclosure provides durable mechanical protection and corrosion resistance. This combination is suitable for daily industrial use, helping to extend component life and maintain a professional exterior appearance in workshop and plant environments.
The screw-covered door, captive plated screws, and panel mount provisions minimize hardware loss and simplify field maintenance. External feet facilitate rapid mounting and servicing, reducing downtime. Over the enclosure’s life cycle, this translates to lower maintenance costs, faster repairs, and improved overall equipment uptime in demanding industrial settings.
