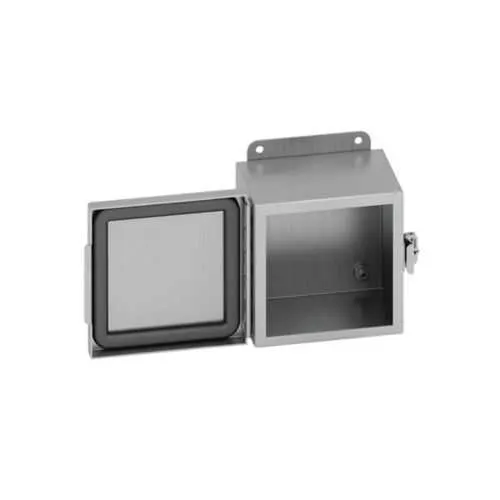

Eaton 644-4XSCHC JIC panel enclosure - NEMA 4X
Part Number: 644-4XSCHC
Quick Summary
The Eaton 644-4XSCHC JIC panel enclosure is a compact wall-mount solution designed to protect electrical controls in harsh industrial environments. It helps prevent corrosion, moisture ingress, and dust intrusion, reducing unplanned downtime and maintenance costs. With UL 50, CSA C22.2 approvals and a NEMA 4X rating, this stainless steel enclosure meets stringent reliability and safety requirements for demanding applications. The 304 stainless steel construction and seamless gasket optimize protection while keeping a small footprint. By combining durable materials with straightforward installation, this enclosure supports compact control panels and panel-mounted devices, delivering long-term value for automation projects and facilities that require clean, compliant protection.
Product Information
Extended Description
644-4XSCHC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 4" width, NEMA 4X, Hinged cover, 4XSCHC enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
644-4XSCHC
UPC
782051702804
Product Length/Depth
4 in
Product Height
6 in
Product Width
4 in
Product Weight
3 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSCHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Material and construction: The enclosure uses 304 stainless steel with a 16 gauge wall, delivering exceptional corrosion resistance and durability. Business impact: extends service life in wet, humid, or chemically aggressive environments, reducing replacement costs. Application: ideal for small control panels in food processing, water/wastewater, and outdoor automation stations. Sealed integrity and gasket design: Seamless poured-in-place gasket and a hinged door provide robust ingress protection. Business impact: minimizes washdown risk and moisture intrusion, ensuring ongoing equipment reliability. Application: washdown areas and coastal facilities where contamination control is critical. Access and maintenance efficiency: Hinged cover with contoured piano hinge and external mounting feet offer quick, tool-free access to internal components. Business impact: lowers maintenance time and downtime during maintenance cycles or panel upgrades. Application: production lines and field service environments requiring fast service turns. Mounting versatility in a compact footprint: Wall-mount capability with external feet enables flexible installation while saving space. Business impact: simplifies retrofits and new builds by accommodating tight enclosures with standard mounting hardware. Application: compact control panels in automated systems with limited wall space. Compliance and reliability: UL 50 and CSA C22.2 approvals coupled with NEMA 4X rating provide regulatory confidence for industrial applications. Business impact: accelerates project approvals and reduces compliance risk. Application: industrial automation, process control rooms, and light to moderate washdown environments.
Get a Quick Quote for a Eaton 644-4XSCHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 644-4XSCHC?
Enquire Now
FAQs
Plan for external mounting feet and level mounting to ensure solid support. The unit is designed for wall installation with a hinge-access door, requiring adequate clearance for the hinged cover and door clamps. Use compatible fasteners suited to 304 stainless steel to maintain corrosion resistance and seal integrity over the life of the enclosure.
Construction from 304 stainless steel with a 16 gauge wall and a seamless gasket delivers superior corrosion resistance and ingress protection. The NEMA 4X rating further ensures protection against water, dust, and hose-down exposure, making it an excellent choice for washdown areas, food processing, and outdoor installations.
This enclosure carries UL 50 and CSA C22.2 certifications, paired with a NEMA 4X rating. These standards verify electrical and mechanical safety, as well as ingress protection in demanding environments. Compliance reduces risk in regulated industries and supports faster project approvals and insurer confidence.
Yes. The enclosure is designed as a compact small single-door unit with wall mounting and external feet, accommodating compact control panels and panel-mounted accessories. The hinged cover and internal clearance support routine maintenance and upgrades, while the sturdy 304 stainless steel construction maintains integrity during service.
The corrosion-resistant stainless steel construction reduces corrosion-related maintenance and replacement costs. The sealed gasket and durable hinge minimize ingress-related failures, lowering downtime. Over the lifecycle, you benefit from longer service intervals, lower maintenance labor, and improved reliability for automated processes.
