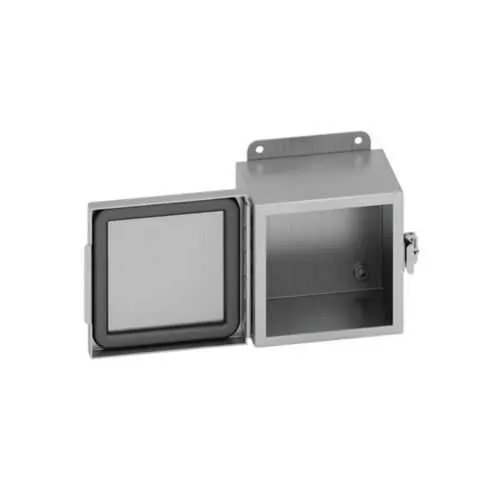

Eaton 644-4XSS6CHC JIC Panel Enclosure - NEMA 4X
Part Number: 644-4XSS6CHC
Quick Summary
The Eaton 644-4XSS6CHC JIC panel enclosure protects critical control gear in demanding environments while enabling compact, wall-mounted installations. Engineers often contend with corrosion, washdown exposure, and downtime when enclosures fail to seal, driving maintenance costs. UL 50, CSA C22.2, and NEMA 4X ratings ensure reliable protection against water, dust and corrosion across industrial settings. Built from 316 stainless steel with a 16 gauge wall and a seamless gasket, it supports longer maintenance intervals and lower total cost of ownership. The hinged, external-mount feet design simplifies service in tight spaces, and the enclosure integrates easily with standard panels for fast installation and predictable performance. This combination delivers compliance and durability for harsh environments such as food processing, chemical handling, and logistics automation.
Product Information
Extended Description
644-4XSS6CHC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 4" width, NEMA 4X, Hinged cover, 4XSS6CHC enclosure, Wall mount, Small single door, External mounting feet, 316 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
644-4XSS6CHC
UPC
782051094770
Product Length/Depth
4 in
Product Height
6 in
Product Width
4 in
Product Weight
3 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSS6CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction with 16 gauge wall provides outstanding corrosion resistance. Business Impact: Reduces maintenance cycles and replacement costs in washdown and corrosive environments. Application: Ideal for food & beverage processing, pharmaceutical facilities, and outdoor control panels. Feature: Seamless poured-in-place gasket and cont. piano hinge improve sealing and door durability. Business Impact: Minimizes ingress risk and extends service intervals, lowering downtime. Application: Suitable for control enclosures facing frequent cleaning and washdown cycles in manufacturing. Feature: Hinged cover with external mounting feet and wall-mount capability. Business Impact: Faster installation and easier access during maintenance, saving labor time on project timelines. Application: Perfect for compact control panels in tight machinery spaces. Feature: 6 in height, 4 in width, 4 in depth with 3 lb weight. Business Impact: Compact footprint reduces cabinet footprint and simplifies retrofits without sacrificing protection. Application: Suitable for small single-door enclosures in modular automation setups. Feature: NEMA 4X rating with UL 50 and CSA C22.2 certification. Business Impact: Meets regulatory and safety requirements, enabling easier procurement and project approval. Application: Deploy in harsh environments requiring reliable water, corrosion, and dust protection.
Get a Quick Quote for a Eaton 644-4XSS6CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 644-4XSS6CHC?
Enquire Now
FAQs
This enclosure is designed for wall mounting with external mounting feet. Use standard fasteners suitable for 316 stainless steel and clean gasket mating surfaces before installation. Align the hinged cover and secure with the external feet to maintain a tight seal. Verify gasket seating after installation to ensure NEMA 4X protection is achieved during operation.
The enclosure measures 6 inches in height, 4 inches in width, and 4 inches in depth, weighing 3 pounds. It is constructed from 316 stainless steel with a 16 gauge wall and a seamless gasket. The finish is a #4 brushed appearance, and the door is hinged for easy access.
Yes. The enclosure carries a NEMA 4X rating and UL 50/CSA C22.2 certification, providing robust protection against water, dust, and corrosion in washdown environments. Its 316 stainless steel construction and gasketed hinge design support frequent cleaning and sanitation without compromising enclosure integrity.
It carries UL 50, CSA C22.2, and NEMA ratings, confirming electrical enclosure safety and performance standards. These certifications help ensure code compliance, ease supplier approvals, and reduce project risk when specifying enclosures for regulated industries such as food, beverage, and chemical processing.
316 stainless steel delivers superior corrosion resistance, extending service life in harsh environments and reducing replacement costs. The sealed gasket and hinged door enable quick cleaning with minimal downtime. While the upfront material cost is higher, the long-term maintenance savings and uptime gains improve total cost of ownership for long-running automation systems.
