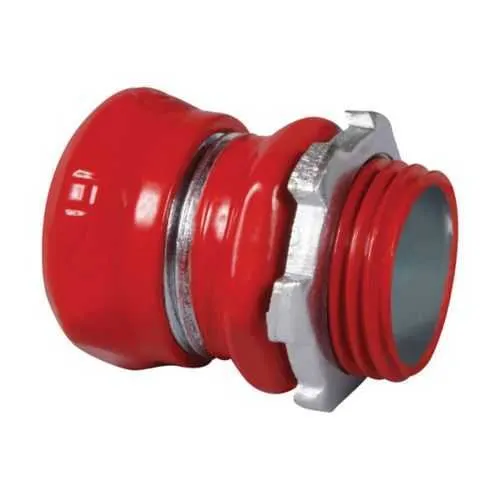

Eaton 651SRED EMT compression connector - NEC/CEC
Part Number: 651SRED
Quick Summary
The Eaton 651SRED EMT compression connector provides a secure, straight termination for 3/4" EMT conduit in industrial panels. It addresses the common challenge of loose fittings and time-consuming field adjustments in tight spaces by delivering a solid, compression-lock solution that speeds installation. This connector is designed for NEC/CEC compliance and suitable for ordinary/non-hazardous locations, with additional Canadian certification references to support multi-region deployment. By leveraging a steel body with a non-insulated, threadless design, it reduces maintenance needs, minimizes spare parts, and improves overall panel reliability. For automation projects that demand consistent performance and fast turnaround, 651SRED delivers clear business value without compromising safety or compliance.
Product Information
Extended Description
651SRED Eaton: Eaton Crouse-Hinds series EMT compression connector, Red, EMT, Straight, Non-insulated, Steel, Threadless, 3/4"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
651SRED
UPC
662277089982
Product Length/Depth
1.22 in
Product Height
1.31 in
Product Width
1.31 in
Product Weight
0.16 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Non-insulated
Trade size
3/4"
Color
Red
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 651SRED 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT Canadian certification
Connectors and Couplings - EMT Canadian certification
Eaton Specification Sheet - 651SRED
Feature: Straight EMT compression connector design. Business Impact: Provides a secure, vibration-resistant termination that reduces rework and warranty claims. Application: Ideal for control panels and machine enclosures where space is limited and EMT runs require a robust, reliable fitting. Feature: Red color coding. Business Impact: Quick visual identification improves job-site speed and reduces misrouting during installations. Application: Wiring closets and industrial plants where color-coded fittings simplify maintenance. Feature: Threadless, non-insulated construction. Business Impact: Simplifies assembly with fewer torque requirements and easier conductor routing. Application: Industrial automation panels with dense conduit networks. Feature: 3/4" trade size for standard EMT. Business Impact: Ensures compatibility with common conduit inventories, reducing part diversity and procurement time. Application: New-build and retrofit projects in environments governed by NEC/CEC standards. Feature: Steel material and compression style. Business Impact: Delivers durable, long-life performance with strong mechanical strength and reliable electrical contact. Application: Harsh factory floors and panel assemblies subject to routine maintenance. Feature: Compliance to NEC/CEC and ordinary/non-hazardous location rating. Business Impact: Supports regulatory alignment and safe operation across North American facilities. Application: Industrial facilities with multi-site operations requiring consistent fittings across panels and enclosures. Industry context: The 651SRED aligns with Eaton Crouse-Hinds series EMT fittings, offering compatibility with EMT conduits and related accessories, enabling faster installation cycles, lower total cost of ownership, and improved field serviceability.
Get a Quick Quote for a Eaton 651SRED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 651SRED?
Enquire Now
FAQs
To install the 651SRED, slip the EMT conduit into the straight, compression-style connector, align the conductors, and secure with the appropriate compression tooling per Eaton's guidelines. The threadless design simplifies assembly and minimizes risk of cross-threading, while the red color aids quick identification in crowded panels. Ensure مطابق NEC/CEC requirements are met for ordinary locations and verify full seating before enclosure sealing.
Performance is driven by conduit type (EMT), connector style (compression), trade size (3/4"), material (steel), and finish (non-insulated). Its straight connector geometry ensures a consistent path for conductors, while the threadless design reduces installation torque and potential damage. Compliance with NEC/CEC and suitability for ordinary locations underpin reliable electrical performance in automation environments.
Yes. The 651SRED is specified for Ordinary/Non-Hazardous Locations under NEC/CEC standards, making it appropriate for most industrial control panels and machinery enclosures. Its steel construction and compression mechanism provide a secure termination that meets regulatory expectations while supporting efficient panel assembly and serviceability.
The connector is aligned with NEC/CEC standards and is designed for ordinary locations. Additional Canadian certification references are available via UL/ULC documentation for EMT fittings, supporting cross-border use. Always verify project-specific certification requirements and consult Eaton’s specification sheets for the latest compliance data.
The 651SRED’s steel, non-insulated, threadless design reduces potential wear from rework and simplifies field maintenance. Its compression mechanism provides a stable, long-lasting termination that resists loosening under vibration typical in automation environments. The result is lower maintenance costs, fewer panel reseals, and improved uptime for automated systems.
