Eaton 652RED EMT Compression Connector - NEC/CEC
Part Number: 652RED
Quick Summary
652RED is an EMT compression connector designed for straight, 1-inch conduit joints in industrial electrical installations. It delivers a secure, fast-to-install path between EMT runs, reducing field labor and rework. Many projects suffer from misfits or slow, threaded installations; the compression style and threadless design of 652RED streamline assembly while maintaining a robust ground path. This connector supports NEC/CEC compliance and is approved for Ordinary/Non-Hazardous locations, with UL certification options available to bolster regulatory confidence. By leveraging Eaton’s Crouse-Hinds series, engineers gain a reliable, color-coded fit that simplifies panel wiring, minimizes inventory variety, and supports scalable installation across machines and facilities.
Product Information
Extended Description

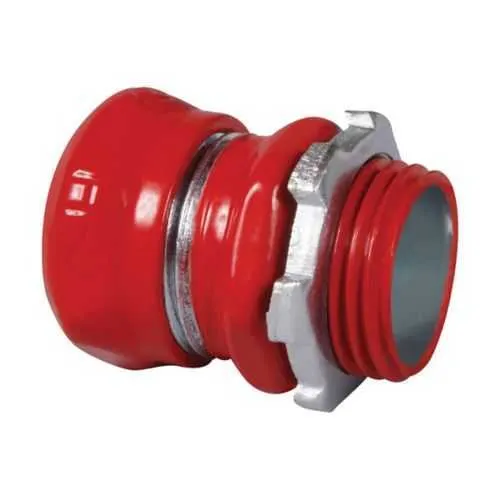

652RED Eaton: Eaton Crouse-Hinds series EMT compression connector, Red, EMT, Straight, Non-insulated, Steel, Threadless, 1"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
652RED
UPC
662277089999
Product Length/Depth
1.44 in
Product Height
1.56 in
Product Width
1.56 in
Product Weight
0.25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Non-insulated
Trade size
1"
Color
Red
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 652RED 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT UL certification
Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 652RED
The 652RED EMT compression connector is a straight, steel, red-coated fitting sized for 1 inch trade size EMT conduit. It delivers a secure joint through compression, reducing field rework and ensuring reliable ground continuity. The threadless design simplifies installation and eliminates cross-threading risks, while the non-insulated construction trims bulk in tight spaces. Its compact footprint—approximately 1.44 in long, 1.56 in high and wide, and about 0.25 lb—lets you pack more connections into control panels and equipment enclosures. NEC/CEC compliance and Ordinary/Non-Hazardous area ratings offer regulatory peace of mind, with UL certification options available for Canada and the US. Compatibility with Crouse-Hinds EMT fittings and easy access to catalogs, CAD drawings, and spec sheets accelerate design validation and procurement. This combination supports faster project timelines and reduced total cost of ownership.
Get a Quick Quote for a Eaton 652RED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 652RED?
Enquire Now
FAQs
Yes. 652RED is designed for straight 1 inch EMT conduit and uses a threadless compression connection that delivers a secure joint with minimal risk of cross-threading. It is well-suited for control panels, machine wiring, and equipment enclosures where a reliable, space-efficient conduit tie-in is required.
652RED is a steel, red-coded, non-insulated compression connector for EMT conduit. It is a straight 1 inch trade-size fitting with a compact footprint of about 1.44 inches long and 1.56 inches in height and width, weighing roughly 0.25 pounds. The design supports NEC/CEC compliance for ordinary locations.
652RED is intended for ordinary/non-hazardous locations and complies with NEC/CEC standards. It is compatible with EMT conduit systems and can be used in factory floors, control panels, and equipment enclosures where standard regulatory compliance is required, with UL certifications available to supplement safety validation.
Threadless compression connectors like 652RED simplify installation by eliminating threaded engagement and insulation. Use the appropriate compression tool and torque as specified by Eaton. The result is a faster, more reliable joint with fewer misalignments, ideal for dense panel wiring and cable management in industrial environments.
Eaton provides downloadable resources for 652RED, including 3D CAD drawings, EMT catalog pages, UL certification references, and the official specification sheet. Accessing these assets accelerates design validation, reduces field errors, and streamlines procurement for projects involving EMT fittings and Crouse-Hinds connectors.
