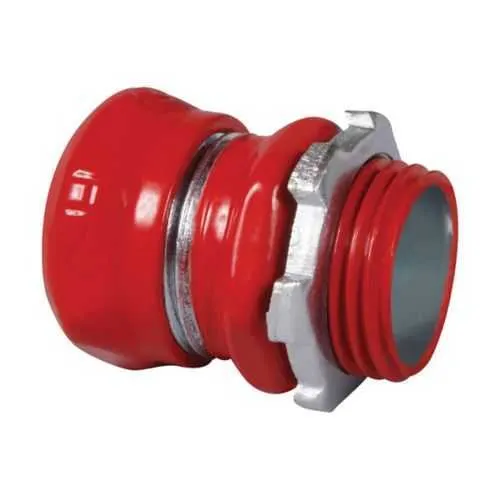

Eaton 652WHITE EMT Compression Connector - Straight, NEC/CEC
Part Number: 652WHITE
Quick Summary
The Eaton 652WHITE EMT compression connector is designed for secure straight EMT terminations in commercial and industrial wiring. Engineers often struggle with installation speed and long-term reliability in vibration-prone or moisture-exposed installations. This connector carries NEC/CEC conformance, UL listings for USA and Canada, and ordinary/non-hazardous location ratings, ensuring broad regulatory compliance. By integrating with standard EMT systems and leveraging a steel, threadless design, it reduces field hardware, speeds assembly, and improves overall project ROI. It also aligns with broader industry best practices for fleet upgrades and panel modernization, while offering compatibility with Crouse-Hinds series fittings to simplify procurement for larger projects.
Product Information
Extended Description
652WHITE Eaton: Eaton Crouse-Hinds series EMT compression connector, White, EMT, Straight, Non-insulated, Steel, Threadless, 1"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
652WHITE
UPC
662277091954
Product Length/Depth
1.44 in
Product Height
1.56 in
Product Width
1.56 in
Product Weight
0.25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Non-insulated
Trade size
1"
Color
White
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 652WHITE 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT UL certification
Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 652WHITE
Feature: Compression style provides a secure, threadless connection for EMT. Business Impact: Reduces alignment errors and stripping risk during field terminations, delivering faster installs and lower rework costs. Application: Use this straight connector on 1" EMT conduit runs in control panels, motor starters, and machinery enclosures. Feature: Steel construction and white finish offer rugged durability and easy site identification. Business Impact: The metal-to-metal contact improves mechanical integrity in vibration-heavy environments while white color enhances visibility for inspections. Application: Suitable for ordinary locations and cleanroom-adjacent spaces where color coding aids maintenance teams. Feature: Non-insulated design eliminates insulating sleeves, reducing part count. Business Impact: Cuts material costs and simplifies inventory. Application: Useful in standard power distribution and panel wiring. Feature: Compact dimensions provide a small footprint for crowded enclosures. Business Impact: Enables easier routing in tight spaces, reducing panel depth requirements. Application: Ideal for machine enclosures and compact control panels. Feature: NEC/CEC compliance and UL certifications for USA/Canada. Business Impact: Streamlines code compliance and project approvals, minimizing audits. Application: Widely compatible with EMT systems in industrial facilities and commercial buildings.
Get a Quick Quote for a Eaton 652WHITE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 652WHITE?
Enquire Now
FAQs
To install, insert the 652WHITE onto the EMT conduit, align with the cable run, and use the compression mechanism to secure the straight fitting without threading. Ensure metal-to-metal contact and verify the termination with a pull test. Use appropriate compression tools and inspect for full seating to prevent future loosening in vibration environments.
Yes. The 652WHITE is UL-listed for EMT fittings in both the USA and Canada, with certification data referenced in Eaton’s documentation and UL certification reports. This supports compliance for NEC/CEC projects and regulatory audits.
The connector is rated for ordinary/non-hazardous locations per NEC/CEC. It is intended for use with EMT conduit and is a straight, compression-style, non-insulated steel fitting designed for 1" trade size applications in standard electrical installations.
The connector has a length of 1.44 inches, height of 1.56 inches, and width of 1.56 inches, with a product weight of 0.25 pounds. It is a 1" trade-size straight EMT fitting made from steel and finished white.
Download options include the Eaton EMT catalog page, the 3D CAD drawing package, UL certification reports for EMT fittings, and the Eaton specification sheet for 652WHITE. These resources help with design validation, procurement, and compliance checks.
