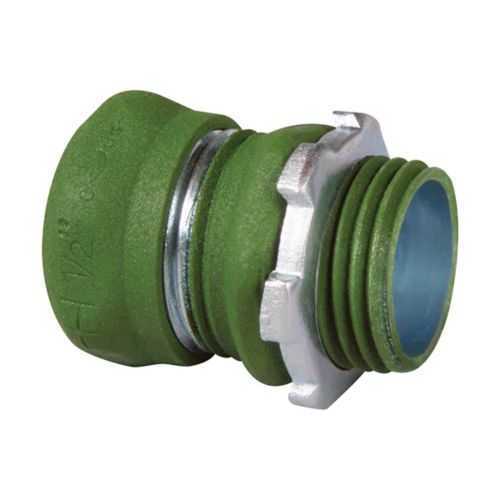

Eaton 653DC EMT Compression Connector - Zinc Die Cast
Part Number: 653GREEN
Quick Summary
The Eaton 653DC EMT compression connector securely terminates EMT conduits in commercial and industrial electrical installations. Installing threaded fittings can be time-consuming and prone to misalignment, especially in crowded panels and shielded enclosures. Backed by NEC/CEC standards and UL certification for EMT fittings, it supports safe, compliant terminations in ordinary locations. With 1-1/4 inch trade size and zinc die-cast construction, this connector reduces inventory variety and speeds installs for contractors, OEMs, and installers. Its non-insulated design simplifies termination in low-voltage paths and minimizes insulation interference. The straight, threadless style supports rapid field routing in control panels. This helps ensure faster turnover on projects, better risk management, and consistent performance under NEC/CEC compliance.
Product Information
Extended Description
653GREEN Eaton: Eaton Crouse-Hinds series EMT compression connector, Green, EMT, Straight, Non-insulated, Steel, Threadless, 1-1/4"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
653GREEN
UPC
662277091565
Product Length/Depth
1.81 in
Product Height
2.13 in
Product Width
2.13 in
Product Weight
0.43 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Non-insulated
Trade size
1-1/4"
Color
Green
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 653GREEN 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT UL certification
Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 653GREEN
Feature: Compression design delivers a secure, vibration-resistant termination with robust mechanical strength. Business Impact: Reduces rework and material waste while improving long-term conduit integrity. Application: Ideal for EMT runs in control panels and industrial enclosures where reliability matters. Feature: Threadless, straight configuration enables quick alignment without threading steps. Business Impact: Cuts installation time and minimizes tool requirements, boosting crew productivity. Application: Directs EMT into fittings in tight spaces and shared conduits. Feature: Zinc die-cast body provides corrosion resistance and durability in non-hazardous environments. Business Impact: Extends service life and lowers maintenance costs in everyday industrial settings. Application: Preferred in ordinary locations where exposure is minimal. Feature: 1-1/4 inch trade size with 7.4 in length and 0.31 lb weight offers predictable fitment and handling. Business Impact: Streamlines BOM planning and reduces库存 variety for distributors and installers. Application: Fits standard EMT systems and simplifies inventory management. Feature: NEC/CEC compliance and UL certification underpin safe, compliant terminations. Business Impact: Supports regulatory adherence and reduces risk of non-compliance audits. Application: Suitable for commercial and light-industrial installations requiring certified EMT fittings.
Get a Quick Quote for a Eaton 653GREEN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 653GREEN?
Enquire Now
FAQs
To install the 653DC, ensure EMT conduit ends are clean and square, insert the conduit into the compression connector, and tighten using the designated compression mechanism until the fit is secure. The threadless design eliminates threading steps, reducing setup time and minimizing misalignment. This approach is ideal for panel wet-dry zones and confined spaces where quick, reliable terminations are essential.
Key specs include EMT conduit type, straight connector style, compression mechanism, threadless connection, and zinc die-cast body. Trade size is 1-1/4", product length 7.4 in, height 3.43 in, width 4.99 in, and weight 0.31 lb. UPC is 784564004093. Compatible with standard 1-1/4 in EMT installations in ordinary locations per NEC/CEC.
The 653DC is designed for straight EMT conduits in commercial and light-industrial settings, particularly inside control panels, junction boxes, and equipment enclosures. It excels in ordinary/non-hazardous locations, delivering quick terminations with reliable grounding paths and robust mechanical strength, while meeting NEC/CEC requirements and UL certifications for EMT fittings.
The 653DC complies with NEC/CEC standards and carries UL certification for EMT fittings, with area classification designated as Ordinary/Non-Hazardous Locations. This ensures regulatory alignment for typical commercial and industrial spaces, simplifies audit readiness, and supports safe, code-compliant conduit terminations across equipment and facilities.
ROI benefits come from faster installations due to threadless compression, reduced parts mix, and lower risk of misthreading or rework. Maintenance needs are minimized because zinc die-cast construction resists corrosion and the non-insulated design reduces insulation interference. Overall, expect shorter project timelines, fewer callbacks, and consistent, compliant outcomes.
