Eaton 653RED EMT Compression Connector - NEC/CEC
Part Number: 653RED
Quick Summary
653RED EMT compression connector securely joins EMT conduit in electrical installations. Installers often face misalignment and space constraints that slow projects; this straight, threadless design simplifies termination and improves consistency. It carries NEC/CEC compliance, UL certification for EMT fittings, and Ordinary/Non-Hazardous Location suitability, giving you safety and regulatory confidence. The steel construction and red color coding align with Crouse-Hinds series fittings and support a 1-1/4 inch trade size, delivering durable, corrosion-resistant terminations in demanding environments. By reducing field adjustments and rework, this connector lowers installation time and total project cost while maintaining robust mechanical integrity and electrical continuity.
Product Information
Extended Description

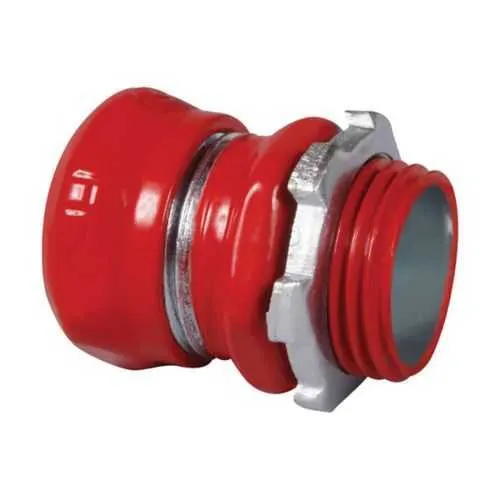

653RED Eaton: Eaton Crouse-Hinds series EMT compression connector, Red, EMT, Straight, Non-insulated, Steel, Threadless, 1-1/4"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
653RED
UPC
662277090001
Product Length/Depth
1.81 in
Product Height
2.13 in
Product Width
2.13 in
Product Weight
0.43 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Non-insulated
Trade size
1-1/4"
Color
Red
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 653RED 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT UL certification
Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 653RED
Feature: Straight EMT compression connector design with threadless, non-insulated steel body. Business Impact: Simplifies alignment and termination, reducing install time and field rework. Application: Ideal for 1-1/4 inch EMT conduit runs in control panels and industrial enclosures. Feature: Red color coding and Crouse-Hinds series compatibility. Business Impact: Improves part recognition and inventory control, speeding up assembly in high-volume environments. Application: Works with other Crouse-Hinds EMT fittings in commercial facilities.Feature: Compression style with non-insulated insulator. Business Impact: Delivers solid mechanical grip and reliable electrical contact without insulating material interference. Application: Suitable for ordinary/non-hazardous locations with NEC/CEC requirements.Feature: Steel construction, 1-1/4 inch trade size. Business Impact: Provides rugged durability and mechanical strength for demanding installations. Application: Suitable for heavy conduit runs in industrial machinery and building services. Feature: UL certification and NEC/CEC compliance. Business Impact: Ensures regulatory approval and reduces risk during audits and inspections. Application: Essential for compliance-heavy projects and panel installations in regulated facilities. Feature: Compatibility with EMT conduit fittings and ease of installation. Business Impact: Minimizes tool time and training needs, improving job efficiency and reducing commissioning delays. Application: Widely applicable in wiring closets, switchgear rooms, and field installations.
Get a Quick Quote for a Eaton 653RED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 653RED?
Enquire Now
FAQs
The 653RED uses a straight, threadless compression design in steel, delivering a consistent grip on EMT conduit. This reduces field adjustments and misalignment, speeding upTerminations while maintaining electrical continuity. Its non-insulated nature simplifies inspection and compatibility with standard panel wiring practices in industrial facilities.
The 653RED is sized for a 1-1/4 inch trade size EMT run and features a straight connector body designed for direct, inline terminations. Its 1-1/4 inch dimension aligns with standard EMT catalogs, ensuring straightforward pairing with corresponding conduits and accessories in Crouse-Hinds series installations.
Yes. The connector is specified for Ordinary/Non-Hazardous locations and adheres to NEC/CEC standards, providing regulatory alignment for commercial and general industrial wiring. This makes it a dependable choice for non-hazard environments where compliant fittings are required for code-approved installations.
The 653RED carries NEC/CEC compliance and UL certification for EMT fittings, supporting safety and performance in regulated settings. It is designed for Ordinary/Non-Hazardous locations, which is essential for panel wiring, control cabinets, and building infrastructure projects that demand certified, reliable conduit connections.
Using the 653RED can reduce installation time due to its straight, threadless compression design and straightforward termination process. The robust steel construction minimizes rework and wear, while NEC/CEC and UL certifications lower compliance risk. In turn, this translates to faster project completion, fewer field service visits, and lower total cost of ownership over the system lifetime.
