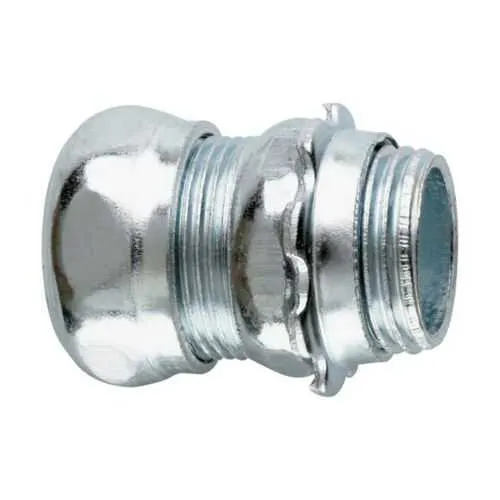

Eaton 654 EMT Compression Connector - NEC/CEC Standards
Part Number: 654
Quick Summary
EMT compression connector by Eaton provides a secure straight connection for EMT conduits in industrial wiring installations. A common challenge is fittings loosening under vibration, which drives maintenance costs and increases downtime. This model aligns with NEC/CEC standards and UL listings for both the US and Canada, and it is rated for Ordinary/Non-Hazardous Locations. As part of the Eaton Crouse-Hinds series, it delivers compatible performance with 1-1/2" EMT and compression-style terminations, while offering durable steel construction designed for long service life in panel feeds and machinery wiring. By combining robust materials with code-compliant design, it supports scalable conduit networks and reduces total cost of ownership for panel builders and integrators.
Product Information
Extended Description
654 Eaton: Eaton Crouse-Hinds series EMT compression connector, EMT, Straight, Non-insulated, Steel, Threadless, 1-1/2"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
654
UPC
784564106544
Product Length/Depth
4.14 in
Product Height
1.15 in
Product Width
2.61 in
Product Weight
0.54 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Non-insulated
Trade size
1-1/2"
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 654 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT UL certification
Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 654
Feature: Steel construction and non-insulated, threadless compression design. Business Impact: Delivers a durable, vibration-tolerant termination that resists corrosion and reduces maintenance frequency. Application: Ideal for 1-1/2" EMT runs in industrial panels and machinery wiring where rugged performance is required. Feature: Straight EMT connector for 1-1/2" trade size. Business Impact: Ensures a predictable, simple alignment during installation, cutting assembly time and minimizing misfit risk. Application: Fast-term installations on control panels and equipment housings in tight or crowded conduit runs. Feature: Compression style, non-insulated connector. Business Impact: Creates a secure, vibration-resistant joint without fine-thread torque challenges, lowering torque-related damage. Application: High-vibration environments in manufacturing lines and process equipment. Feature: NEC/CEC compliance and UL certification. Business Impact: Guarantees code-conforming terminations with UL-listed assurance for US and Canada, reducing approval cycles. Application: Compliance-driven deployments in commercial and industrial facilities. Feature: Crouse-Hinds series compatibility. Business Impact: Streamlines spares and inventory when integrating with other EMT fittings, improving project scalability and reducing overall lifecycle cost. Application: System expansions and retrofit projects in automation and controls.
Get a Quick Quote for a Eaton 654
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 654?
Enquire Now
FAQs
The 654 is designed for 1-1/2" EMT conduit in straight, compression terminations. It uses a threadless design that simplifies installation and creates a secure, vibration-resistant connection suitable for standard EMT runs in industrial environments.
Compression fittings eliminate complex threading, allowing quicker field assembly and fewer torque-related issues. The result is faster terminations with reliable clamping force, reducing the risk of loosening over time in machinery and control panels.
The 654 adheres to NEC/CEC standards and carries UL certifications for both the US and Canada, with suitability for Ordinary/Non-Hazardous Locations, ensuring compliant installations in diverse facilities.
Yes. It is designed to be compatible within the Eaton Crouse-Hinds EMT family, enabling scalable conduit networks. For best results, use matching material, finish, and conduit type to maintain performance and welding-free terminations.
The steel, non-insulated, threadless design provides durable terminations with reduced maintenance and downtime. Faster installation lowers labor costs, while NEC/CEC and UL compliance reduces rework and warranty issues for panel builders and integrators.
