Eaton 656GREEN EMT compression connector - NEC/CEC
Part Number: 656GREEN
Quick Summary
656GREEN EMT compression connector delivers a reliable EMT termination for industrial electrical installations. It addresses the common challenge of field threading and insulation gaps by offering a threadless, compression-based fit that speeds assembly. This connector supports NEC/CEC standards and UL-listed EMT fittings, making it suitable for Ordinary/Non-Hazardous Locations. With a robust steel construction and distinctive green color for quick identification, it provides durable terminations and straightforward compatibility with standard EMT fittings, helping accelerate panel wiring and conduit runs while maintaining code compliance.
Product Information
Extended Description

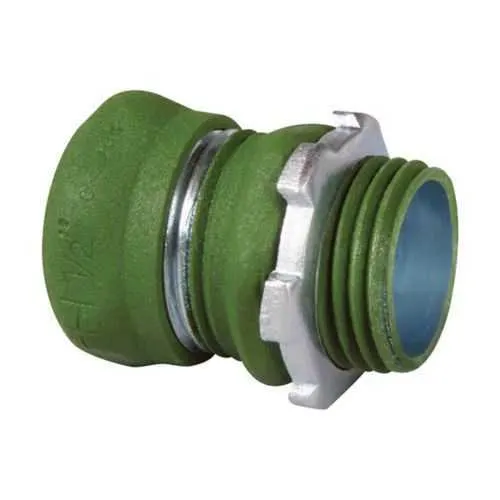

656GREEN Eaton: Eaton Crouse-Hinds series EMT compression connector, Green, EMT, Straight, Non-insulated, Steel, Threadless, 2-1/2"
Product Name
Eaton Crouse-Hinds series EMT compression connector
Catalog Number
656GREEN
UPC
662277091596
Product Length/Depth
3.31 in
Product Height
3.75 in
Product Width
3.75 in
Product Weight
1.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Connector type
Straight
Style
Compression
Insulator
Non-insulated
Trade size
2-1/2"
Color
Green
Thread
Threadless
Material
Steel
Eaton Crouse-Hinds 656GREEN 3D drawing
Crouse-Hinds series Connectors and Couplings - EMT catalog page
Connectors and Couplings - EMT UL certification
Connectors and Couplings - EMT UL certification
Eaton Specification Sheet - 656GREEN
Feature: Compression, threadless design in a steel connector Facilitates faster installation and reduces risk of cross-threading; Business Impact: Shorter wiring cycles and improved reliability in tight electrical enclosures; Application: Used in control panels and distribution boxes where EMT needs a quick, secure termination. Feature: Green color and non-insulated steel construction Improves circuit identification and enduring service life in non-hazardous areas; Business Impact: Easier maintenance and long-term durability in light-industrial environments; Application: Color-coded terminations for plant wiring looms and switchgear. Feature: 2-1/2 inch trade size with 3.31 in length and 3.75 in height/width Provides compatibility with selected EMT runs and predictable fit; Business Impact: Reduces rework and inventory complexity; Application: Conduit terminations for mid-size industrial installations. Feature: NEC/CEC compliance and UL certification for EMT fittings Ensures code adherence and safety; Business Impact: Simplifies project approvals and risk management; Application: New builds and retrofit projects in ordinary locations. Feature: Ordinary/Non-Hazardous Locations suitability and steel durability Supports reliable service in general industrial environments; Business Impact: Lower life-cycle costs and guaranteed performance; Application: Factory floor wiring, panels, and electrical rooms. Feature: Compatibility with Crouse-Hinds series fittings and available CAD datasheets Encourages seamless integration and fast engineering validation; Business Impact: Accelerates design reviews and procurement; Application: System-level installations and BOM planning.
Get a Quick Quote for a Eaton 656GREEN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 656GREEN?
Enquire Now
FAQs
What steps should I follow to install the 656GREEN EMT compression connector? Start by preparing the EMT conduit and gauge its fit, place the connector, and compress using a compatible tool until the conductor seats firmly. Verify alignment, secure with the proper clamps if required, and test continuity after installation to ensure a reliable, code-compliant connection.
Yes. The 656GREEN is designed for EMT conduit with a 2-1/2" trade size, offering a straight, compression, threadless connection that fits standard EMT runs commonly found in control panels and industrial wiring.
The connector is compliant with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations. It is UL-listed for EMT fittings, reinforcing safety and regulatory compliance for industrial installations and panel wiring.
The 656GREEN measures approximately 3.31 inches in length, with a width and height near 3.75 inches, and weighs about 1.9 pounds. These dimensions support planning for space and enclosure clearance in mid-size electrical installations.
The threadless compression design reduces installation time and cross-thread risk, which lowers labor costs and rework. Its steel construction and non-insulated profile simplify inventory, while NEC/CEC and UL listings help with faster approvals and ongoing compliance in non-hazardous environments.
