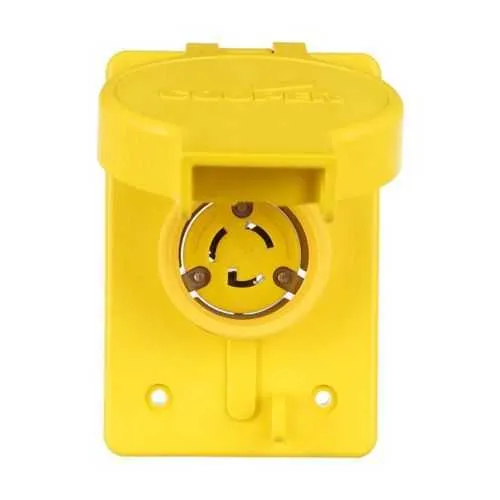

Eaton 65W34BK Watertight Locking Receptacle - cULus Listed
Part Number: 65W34BK
Quick Summary
65W34BK locking receptacle provides watertight electrical connections for industrial enclosures and outdoor equipment. In harsh environments, moisture, dust, and vibration can cause loose connections and downtime; this unit is built to resist those challenges with a rugged body, reliable locking mechanism, and durable terminals. It carries cULus Listing and is compatible with IP66 and multiple NEMA ratings, ensuring safe operation in washdown zones and exterior installations. Designed for #18-10 AWG back wiring, 15A at 277V (L7-15), two-pole with grounding, it supports fast, secure field terminations. By upgrading to this Eaton component, maintenance costs can drop and uptime can improve across industrial machines, conveyors, and packaging lines, delivering long-term total-cost-of-ownership benefits for plant operations.
Product Information
Extended Description
65W34BK Eaton: Eaton Arrow Hart watertight locking receptacle, #18-10 AWG, 15A, Industrial, 277V, Back wiring, Black, Single, Watertight, L7-15, Two-pole, Three-wire, grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
65W34BK
UPC
032664708602
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
0.77 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L7-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
277 V
Environmental resistance
IP66 NEMA 3 NEMA 4X NEMA 12 NEMA 3R NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Feature: Watertight construction paired with IP66 and compatibility with NEMA 3, 4X, 12, and 4 environments. Business Impact: protects expensive equipment from moisture and dust, extending service life and reducing corrosion-related failures. Application: ideal for outdoor enclosures, washdown zones, and harsh factory floors where reliability matters. Feature: Locking mechanism provides positive retention in vibration-prone applications like conveyors and CNC setups. Business Impact: minimizes accidental disconnections and unplanned downtime, improving line throughput. Application: suitable for industrial power distribution panels, outdoor machinery, and marine or wet-dusty environments. Feature: 15A, 277V, L7-15, two-pole with grounding, back wiring for #18-10 AWG. Business Impact: enables compatible, code-compliant connections to common industrial loads with straightforward field terminations. Application: supports standard industrial equipment and control circuits, while maintaining safe, code-compliant performance. Feature: Glass-filled nylon face/body with nickel-plated bronze contacts. Business Impact: delivers high resistance to impact, heat, and chemical exposure, reducing replacement cycles and downtime. Application: suits harsh environments such as washdown areas and chemical exposure zones. Feature: Clear dimensions and back-wiring wiring method improve fit and installation efficiency. Business Impact: faster upgrades, standardized components, and predictable maintenance planning across site-wide power distribution. Application: designed for single receptacle use in industrial applications with extra heavy-duty industrial specification grade.
Get a Quick Quote for a Eaton 65W34BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 65W34BK?
Enquire Now
FAQs
Install the 65W34BK using the back-wiring method with #18-10 AWG conductors as specified. Maintain the 15A rating at 277V and secure conductors under the terminal clamps to the nickel-plated bronze contacts. Torque should be matched to the wire size (14–16 lbf-in for #10-14 AWG; 20 lbf-in for #8 AWG) to ensure a reliable, long-term connection and minimize looseness from vibration.
The L7-15 locking configuration is a two-pole, grounding arrangement designed for 277V systems. Its locking design resists accidental disconnections in vibration-heavy environments such as conveyors and outdoor equipment. This leads to safer operation, fewer unexpected outages, and consistent power delivery for critical industrial machinery and control circuits.
Yes. The 65W34BK features IP66 environmental resistance along with compatible NEMA ratings (3, 4, 4X, 12, 3R). This combination safeguards against dust, water ingress, and washdown exposure, making it appropriate for outdoor enclosures, wet facilities, and harsh manufacturing environments where reliability and compliance are essential.
The receptacle is cULus Listed, with IP66 and multiple NEMA ratings (3, 4, 4X, 12). These certifications validate safety, performance, and suitability for industrial environments. Compliance reduces risk during audits, supports hazardous-area installations where required, and ensures standardized cross-site compatibility for maintenance and procurement teams.
Investing in the 65W34BK reduces downtime due to secure connections and robust sealing. The back-wiring capability speeds field terminations, while the locking design minimizes accidental disconnections in vibration-prone equipment. Over time, this lowers maintenance labor, extends component life in washdown zones, and improves overall equipment availability and plant productivity.
