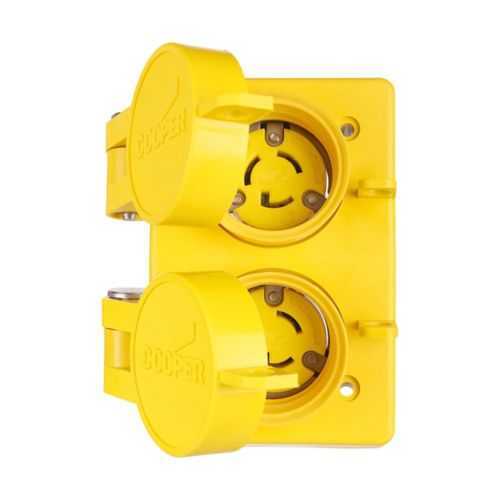

Eaton 65W34DPLX Watertight Locking Receptacle - cULus Listed
Part Number: 65W34DPLX
Quick Summary
Eaton 65W34DPLX watertight locking receptacle delivers secure, splash-proof power connections for industrial equipment in harsh environments. Facilities often contend with moisture, dust, and vibration that compromise safety and uptime; a robust locking and sealing solution is essential. This unit carries cULus listing and provides IP66 and NEMA 4X/4 protection, offering proven reliability in washdown and outdoor applications. With back wiring and a durable thermoplastic, glass-filled nylon body, installation remains straightforward while maintaining electrical integrity. Designed for #18-10 AWG conductors, it helps reduce maintenance costs and extends service intervals for demanding industrial settings.
Product Information
Extended Description
65W34DPLX Eaton: Eaton Arrow Hart watertight locking receptacle, #18-10 AWG, 15A, Industrial, 277V, Back wiring, Yellow, Duplex, Watertight, L7-15, Two-pole, Three-wire, grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
65W34DPLX
UPC
040893687605
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.29 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L7-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
277 V
Environmental resistance
NEMA 3R NEMA 12 IP66 NEMA 3 NEMA 4X NEMA 4
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Duplex receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Watertight and locking design enhances safety and uptime by preventing moisture ingress and accidental disconnections in harsh environments, reducing downtime and maintenance costs. The 15A, 277V L7-15 configuration supports standard industrial equipment, enabling quick matches with existing power systems and minimizing installation risk. The unit’s glass-filled nylon housing and nickel-plated bronze contacts resist corrosion and wear, improving long-term reliability in washdown or outdoor facilities. Back wiring simplifies field wiring, supports common #18-10 AWG conductors, and speeds up commissioning while reducing labor costs. IP66/NEMA 4X protection provides robust environmental resistance for areas with high moisture, dust, or chemical exposure, ensuring compliant operation in demanding industries. The compact 6.75 inch length and 4.25 inch width fit standard enclosures, delivering a space-efficient solution without sacrificing performance. Industry-grade construction and UL/cUL listing reassure maintenance teams and procurement about long-term ROI and safety compliance.
Get a Quick Quote for a Eaton 65W34DPLX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 65W34DPLX?
Enquire Now
FAQs
Begin by confirming enclosure suitability for IP66/NEMA 4X protection. Use back wiring with #18-10 AWG conductors and connect to the L7-15 terminals. Tighten specified torque: 14-16 lbf-in for #10-14 AWG or 20 lbf-in for #8 AWG. Verify ground continuity and secure the device to the mounting surface to maintain environmental seals.
The receptacle is a 15A, 277V locking device configured as L7-15 with two poles and a grounding conductor. It supports back wiring and accepts #18-10 AWG conductors. This combination is designed for industrial equipment requiring secure, high-visibility power connections under demanding conditions.
It provides IP66 environmental resistance and NEMA protection ratings including NEMA 3R, NEMA 12, NEMA 3, NEMA 4X, and NEMA 4. This makes it suitable for washdown environments, outdoor installations, and areas requiring robust protection against moisture, dust, and corrosion.
Yes, the unit is cULus Listed, signaling compliance with applicable UL and Canadian standards. This certification supports safer integration into industrial electrical systems and aligns with procurement requirements for quality and reliability in regulated environments.
Use back wiring with #18-10 AWG conductors per installation specs. For torques, apply 14-16 lbf-in for #10-14 AWG conductors and 20 lbf-in for #8 AWG. Ensure proper strain relief and verify all connections are tight to maintain sealing and electrical performance.
