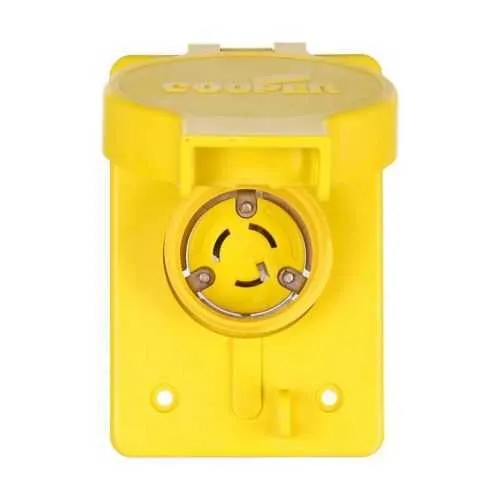

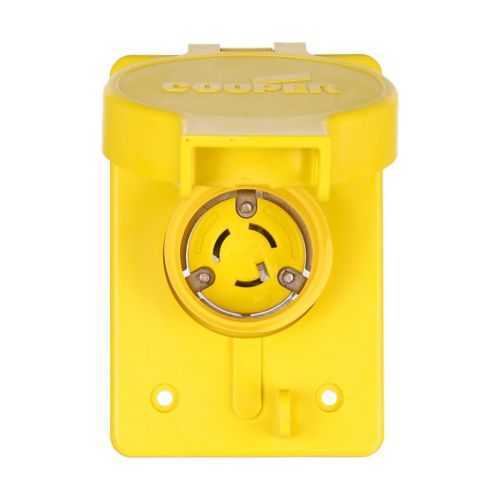

Eaton 65W47BK Watertight Locking Receptacle - cULus Listed
Part Number: 65W47BK
Quick Summary
The Eaton 65W47BK watertight locking receptacle delivers reliable, industrial-grade power connections in harsh environments. Engineers and maintenance teams often confront moisture ingress and unreliable terminations in wet locations, leading to downtime and higher maintenance costs. This unit is cULus Listed and offers IP66/NEMA protections, including NEMA 12, 3R, 4, and 4X, ensuring robust ingress protection for washdown and outdoor use. Designed for back and side wiring and compatible with #14-10 AWG conductors, it speeds installation and reduces field rework. With a glass-filled nylon housing and nickel-plated bronze contacts, it delivers lasting durability and dependable electrical performance in tough industrial environments.
Product Information
Extended Description
65W47BK Eaton: Eaton Arrow Hart watertight locking receptacle, #14-10 AWG, 15A, Industrial, 125V, Back and side wiring, Black, Single, Watertight, L5-15, Two-pole, Three-wire, grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking receptacle
Catalog Number
65W47BK
UPC
032664708626
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
0.78 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L5-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125 V
Environmental resistance
NEMA 12 NEMA 3R NEMA 4 NEMA 4X NEMA 3 IP66
Allowable wire size
#14-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Single receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Feature: Watertight locking design provides secure, vibration-resistant connections. Business Impact: Reduces moisture-related faults and downtime in challenging environments. Application: Ideal for washdown areas and outdoor installations where reliability matters. Feature: Back and side wiring compatibility with #14-10 AWG conductors. Business Impact: Simplifies installation, shortens panel build time, and lowers field rework costs. Application: Panel assemblies and equipment hookups in industrial facilities. Feature: Rugged housing and contact materials (glass-filled nylon body; nickel-plated bronze contacts). Business Impact: Enhanced corrosion resistance and long-term durability, lowering replacement cycles. Application: Heavy-use manufacturing lines and equipment bays. Feature: NEMA/IP protection (NEMA 12, 3R, 4, 4X; IP66). Business Impact: Improved ingress protection reduces protective enclosures needs and extends service life. Application: Environments with washdowns, dust, and harsh contaminants. Feature: Electrical specs match common industrial power systems (125 V, 15 A, L5-15, two-pole, three-wire grounding). Business Impact: Streamlined selection and compatibility with standard wiring practices, reducing mis-specification risk. Application: New builds and retrofits across industrial automation and control panels.
Get a Quick Quote for a Eaton 65W47BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 65W47BK?
Enquire Now
FAQs
The 65W47BK supports back and side wiring with allowable conductors #14-10 AWG. It is designed for two-pole, three-wire grounding (L5-15) and has torque recommendations for #10-14 AWG as 14-16 lbf-in and #8 AWG as 20 lbf-in to ensure secure, code-compliant terminations.
Yes. It is rated IP66 and listed to NEMA protections including 12, 3R, 4, and 4X, making it appropriate for washdown areas, outdoor installations, and other demanding environments where moisture and dust are present.
The receptacle is cULus Listed, and its IP66/NEMA ratings provide robust ingress protection for challenging facilities, aligning with common industrial safety and performance standards.
The locking receptacle design provides a secure connection that resists vibration and accidental disconnection, which is critical for equipment stability in manufacturing lines and mobile machinery deployments.
With corrosion-resistant nickel-plated bronze contacts, a rugged glass-filled nylon body, and flexible wiring options, the unit reduces maintenance cycles, minimizes field rework, and extends service life in harsh industrial environments, delivering lower total cost of ownership.
