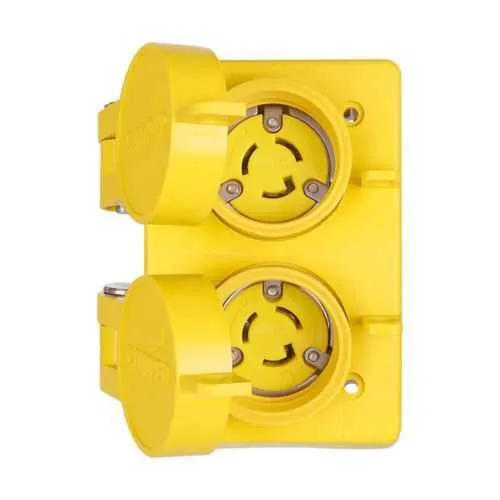

Eaton 65W47DPLX Locking Duplex Receptacle - Watertight
Part Number: 65W47DPLX
Quick Summary
The Eaton 65W47DPLX watertight locking duplex receptacle provides rugged, reliable power delivery for industrial enclosures and wet outdoor applications. Operators and engineers often battle water intrusion, corrosion, and accidental disconnections on harsh sites; this unit mitigates those issues with a true locking mechanism and weather-resistant construction. It carries cULus listing and is designed to meet IP66 and NEMA ratings (including 12, 4, and 4X), supporting safe operation in demanding environments. Back wiring flexibility and durable nickel-plated bronze contacts help installers reduce field failures, while the glass-filled nylon housing delivers long-term reliability and lower maintenance costs.
Product Information
Extended Description
65W47DPLX Eaton: Eaton Arrow Hart watertight locking receptacle, #14-10 AWG, 15A, Industrial, 125V, Back and side wiring, Yellow, Duplex, Watertight, L5-15, Two-pole, Three-wire, grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking duplex receptacle
Catalog Number
65W47DPLX
UPC
040893687568
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.3 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L5-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125 V
Environmental resistance
NEMA 12 NEMA 4 NEMA 3R IP66 NEMA 3 NEMA 4X
Allowable wire size
#14-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Duplex receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Watertight locking design: reduces water ingress and accidental disconnections in outdoor enclosures, improving uptime and safety on critical equipment sites. This translates to less downtime and lower maintenance costs in challenging environments. Glass-filled nylon housing paired with nickel-plated bronze contacts delivers corrosion resistance and durable performance, enhancing overall reliability in exposed industrial settings. Back wiring with support for #14-10 AWG simplifies installation and maintenance, while a 14-16 lbf-in torque range for typical wires ensures reliable, repeatable terminations. The rugged, extra-heavy industrial specification design minimizes field failures and extends service life, supporting long-term total cost of ownership improvements. IP66 and multiple NEMA ratings (12, 4, 4X) provide confident performance in dirt, water, and wash-down environments, reducing enclosure contamination and ensuring compliance with demanding safety standards. Color and material choices improve visibility and durability in harsh environments, aiding quick identification and safer operation across the facility.
Get a Quick Quote for a Eaton 65W47DPLX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 65W47DPLX?
Enquire Now
FAQs
The 65W47DPLX supports back wiring with allowable wire sizes of #14-10 AWG. For secure terminations, torque ratings are 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG, ensuring a reliable, code-compliant connection during field installation.
Yes. It is designed for harsh environments with IP66 protection and NEMA ratings including 12, 4, and 4X, plus cULus listing, making it suitable for wet locations and wash-down areas.
The receptacle uses the NEMA L5-15 configuration, is a two-pole, three-wire grounding unit, and is rated for 125V and 15A, ideal for industrial equipment and power distribution in controlled outdoor settings.
The device features a thermoplastic, glass-filled nylon face/body with nickel-plated bronze contacts, delivering high impact and corrosion resistance suitable for demanding environments.
Locking functionality reduces accidental disconnections, while the watertight, rugged construction lowers replacement and maintenance costs. Combined with durable materials and reliable wiring, it supports lower downtime and a faster return on investment in harsh facilities.
