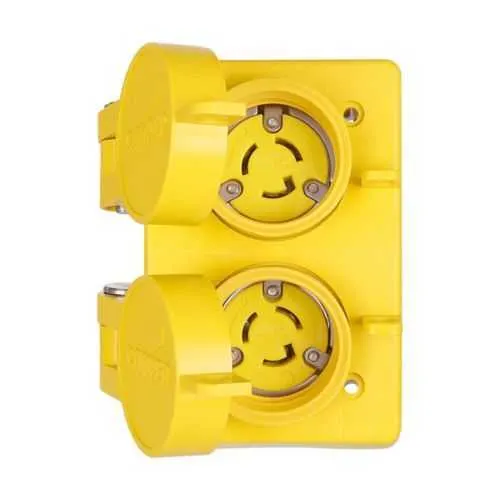

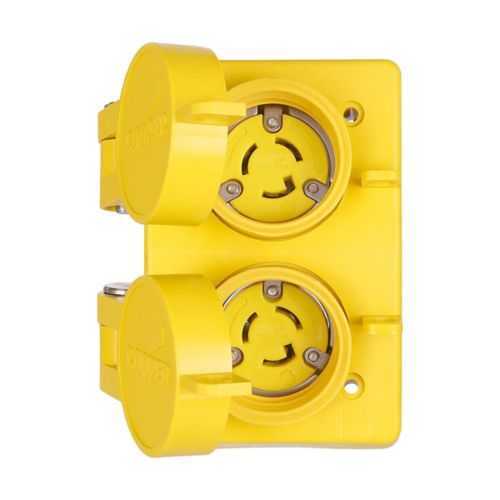

Eaton 65W47DPLXBK Watertight Locking Receptacle - cULus Listed
Part Number: 65W47DPLXBK
Quick Summary
Eaton Arrow Hart watertight locking duplex receptacle delivers secure power in industrial enclosures and outdoor equipment. A common pain point is moisture ingress causing corrosion, downtime, and costly maintenance in washdown or harsh plant environments. It carries cULus Listed certification and rugged environmental ratings including IP66 and NEMA 3/4X/12, ensuring compliance and reliability in wet or dusty conditions. For procurement teams, the locking feature reduces accidental disconnects, while back-wire wiring speeds installation and simplifies servicing, delivering predictable uptime and lower labor costs. This product also integrates with #14-10 AWG conductors and supports L5-15 configurations for versatile, mission-critical power connections.
Product Information
Extended Description
65W47DPLXBK Eaton: Eaton Arrow Hart watertight locking receptacle, #14-10 AWG, 15A, Industrial, 125V, Back and side wiring, Black, Duplex, Watertight, L5-15, Two-pole, Three-wire, grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking duplex receptacle
Catalog Number
65W47DPLXBK
UPC
032664708633
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.29 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L5-15
Number Of Poles
Two-pole
Number of wires
3 Grounding
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
125 V
Environmental resistance
NEMA 3R NEMA 4X NEMA 12 NEMA 4 IP66 NEMA 3
Allowable wire size
#14-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Duplex receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Watertight locking design → reduces moisture ingress and failure → ideal for washdown zones and outdoor enclosures. Back-wire capability for #14-10 AWG conductors → speeds installation and simplifies future servicing while maintaining a secure termination in control panels and field boxes. Glass-filled nylon body with nickel-plated bronze contacts → delivers durable, corrosion-resistant performance in rugged environments and under frequent plug/unplug cycles. 125 V, 15 A rating with L5-15 locking configuration → ensures compatibility with common industrial power setups and prevents accidental disconnections in vibrating equipment or portable applications. cULus Listed and IP66/NEMA protection (including 3R, 4X, 12) → supports regulatory compliance and diverse installation scenarios from outdoor enclosures to washdown rooms, reducing lifecycle risk and warranty costs. Torque ratings for conductors (#10-14 AWG: 14-16 lbf-in; #8 AWG: 20 lbf-in) → provides consistent terminations and minimizes rework in high-volume installations. Color is black and wiring method is back → aligns with standard industrial conduit systems and helps maintain a neat, code-compliant work area. The device’s extra-heavy-duty industrial specification grade and face/body material of thermoplastic, glass-filled nylon → translates to lower replacement frequency and better resistance to impact, chemical exposure, and UV light in exposed sites.
Get a Quick Quote for a Eaton 65W47DPLXBK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 65W47DPLXBK?
Enquire Now
FAQs
The 65W47DPLXBK supports back wiring for #14-10 AWG conductors and is designed for secure terminations in industrial applications. The torque spec for termination is 14-16 in-lbf for #10-14 AWG and 20 in-lbf for #8 AWG, ensuring reliable connections with reduced risk of loosening under vibration.
This receptacle is 15A, 125V, with a locking L5-15 configuration. It is designed as a two-pole, three-wire device with grounding, suitable for standard 125V industrial power distribution systems and secure mating in portable or fixed installations.
Yes. The unit is rated IP66 and carries NEMA ratings including 3R, 4X, and 12, providing excellent protection against moisture, dust, and washdown conditions, making it appropriate for outdoor enclosures and damp industrial areas.
The receptacle is cULus Listed and features IP66 and multiple NEMA ratings (3R, 4X, 12), delivering regulatory compliance and robust environmental protection for harsh industrial environments.
The locking design reduces accidental disconnections and wear, while watertight construction minimizes corrosion-related failures. Combined with faster back-wire installations and durable materials, this can lower maintenance costs and downtime, delivering a favorable return on investment over the device’s lifecycle.
