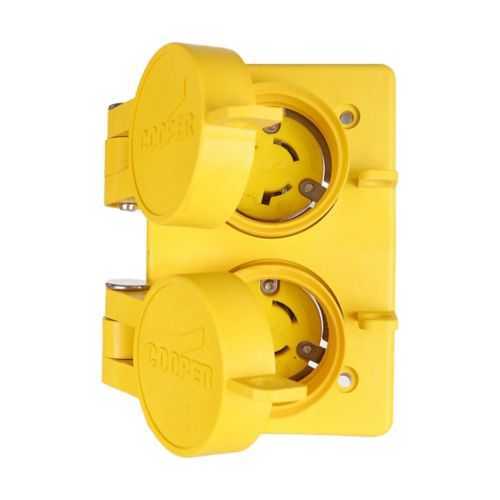

Eaton 65W49DPLX Watertight Locking Duplex Receptacle - cULus
Part Number: 65W49DPLX
Quick Summary
The Eaton 65W49DPLX watertight locking duplex receptacle delivers secure 250 V power in harsh industrial settings. Installers struggle with moisture, debris, and dangerous connections; this unit mitigates those issues with a watertight seal, back-wire termination, and a true locking mechanism that resists accidental unplugging in vibration-prone equipment. It carries cULus Listed certification and is designed for wet service with NEMA ratings 12, 4, 4X and IP66 washdown compatibility, ensuring dependable operation where others fail. With support for #18-10 AWG conductors and a glass-filled nylon body, it minimizes field rework while improving uptime. The nickel-plated bronze contacts boost long-term conductivity, while the rugged housing withstands temperature cycling and impact typical of manufacturing floors. This combination delivers tangible business value by reducing downtime and maintenance costs in demanding environments.
Product Information
Extended Description
65W49DPLX Eaton: Eaton Arrow Hart watertight locking receptacle, #18-10 AWG, 15A, Industrial, 250V, Back wiring, Yellow, Duplex, Watertight, L6-15, Two-pole, Three-wire, grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking duplex receptacle
Catalog Number
65W49DPLX
UPC
040893687582
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.29 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L6-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
250 V
Environmental resistance
NEMA 12 NEMA 4 NEMA 3 NEMA 4X NEMA 3R IP66
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Yellow
Contact material
Nickel plated bronze
Application
Industrial
Design type
Duplex receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
The watertight seal design reduces moisture ingress, extending the life of electrical connections in washdown zones and outdoor equipment, which translates to fewer unplanned outages and lower maintenance costs. The locking duplex configuration provides a secure connection under vibration, minimizing disruptive unplugging and ensuring consistent power delivery for critical machinery. Back-wiring support for #18-10 AWG conductors enables fast, reliable field terminations, reducing installation time and the risk of loose terminations that can cause heat buildup. With a thermoplastic glass-filled nylon body and nickel-plated bronze contacts, the receptacle delivers durable mechanical strength and superior conductivity in harsh environments, supporting longer intervals between service and lower replacement parts costs. Compliance with cULus and IP66/NEMA ratings gives engineers confidence in meeting safety and environmental requirements across multiple facilities, including food processing, material handling, and outdoor equipment applications. The unit’s compact 6.75 inch depth and 4.25 by 4 inch footprint simplify retrofit into existing enclosures, while back-wire accessibility supports cleaner, safer installations and easier future upgrades in industrial control panels.
Get a Quick Quote for a Eaton 65W49DPLX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 65W49DPLX?
Enquire Now
FAQs
The 65W49DPLX supports back wiring with #18-10 AWG conductors and is designed for straightforward field terminations. For conductor sizes #10-14 AWG, use torque ratings of 14-16 in-lbf, and for #8 AWG, torque increases to 20 in-lbf to ensure a secure connection. This design minimizes field rework, improves safety, and reduces downtime during panel upgrades or commissioning.
This receptacle is rated for 15A at 250V with a locking L6-15 configuration, two poles, and grounding. It supports three wires (grounding included) and is suitable for industrial outlets in environments requiring secure, vibration-resistant connections. The product also aligns with multiple NEMA configurations and IP66/washdown protection for harsh environments.
Yes. The 65W49DPLX is designed for washdown and harsh industrial uses, featuring IP66 and compatibility with NEMA 12, 4, 4X, and 3R environments. Its yellow housing and watertight design help protect against moisture, dust, and chemical exposure, making it appropriate for food processing floors, outdoor equipment, and heavy manufacturing areas.
The receptacle is cULus Listed, indicating compliance with safety and performance standards across North America. This certification, along with IP66 and NEMA ratings, provides assurance for regulatory acceptance, reduces red-teaming during audits, and supports universal compatibility in mixed-brand facilities.
The locking mechanism minimizes accidental disconnections, reducing downtime on critical equipment. Back-wire terminations simplify installation and future upgrades, lowering labor costs. Durable materials (glass-filled nylon housing and nickel-plated bronze contacts) resist corrosion and wear, extending service intervals and lowering replacement parts and maintenance costs over the life of the installation.
