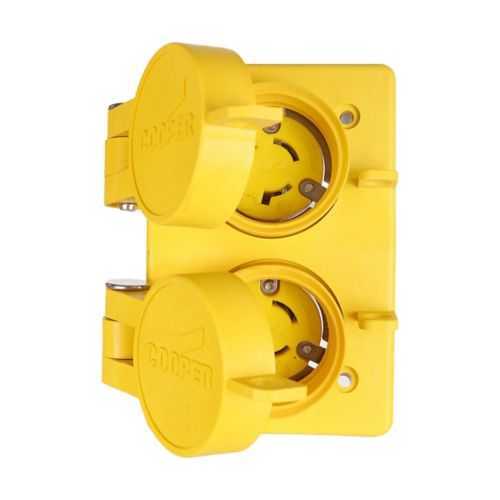

Eaton 65W49DPLXBK Watertight Locking Receptacle - IP66
Part Number: 65W49DPLXBK
Quick Summary
Eaton 65W49DPLXBK watertight locking duplex receptacle provides secure power connections for industrial enclosures and washdown environments. In rugged facilities, moisture, dust, and vibration challenge electrical installations, risking downtime and safety. The unit is cULus Listed with IP66 and NEMA 4X protection, offering reliable performance in wet or corrosive areas. Back-wiring supports #18-10 AWG conductors, while a locking duplex design simplifies installation and reduces field rework. Its thermoplastic, glass-filled nylon body, and nickel-plated bronze contacts deliver durability in harsh conditions. Designed for extra heavy-duty industrial use, the receptacle supports two-pole, three-wire grounding configurations, helping streamline panel wiring and improve overall system reliability for automation and power-distribution applications.
Product Information
Extended Description
65W49DPLXBK Eaton: Eaton Arrow Hart watertight locking receptacle, #18-10 AWG, 15A, Industrial, 250V, Back wiring, Black, Duplex, Watertight, L6-15, Two-pole, Three-wire, grounding, Thermoplastic, glass-filled nylon
Product Name
Eaton Arrow Hart watertight locking duplex receptacle
Catalog Number
65W49DPLXBK
UPC
032664708657
Product Length/Depth
6.75 in
Product Height
4 in
Product Width
4.25 in
Product Weight
1.29 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
L6-15
Number Of Poles
Two-pole
Number of wires
Grounding 3
Receptacle type
Locking
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Voltage rating
250 V
Environmental resistance
NEMA 4X NEMA 3R IP66 NEMA 3 NEMA 4 NEMA 12
Allowable wire size
#18-10 AWG
Wiring method
Back
Color
Black
Contact material
Nickel plated bronze
Application
Industrial
Design type
Duplex receptacle
Device grade
Extra heavy-duty industrial specification grade
Face/body material
Glass filled nylon
Material
Thermoplastic, glass filled nylon
Special features
Watertight
Type
Locking receptacle
Feature: Watertight locking design prevents water ingress and accidental disconnections in challenging environments. Business Impact: This reduces unplanned downtime, protects valuable automation equipment, and lowers maintenance trips in washdown zones and outdoor installations. Application: Suited for conveyors, pumps, and industrial enclosures where secure, vibration-resistant power connections are required to keep lines up and running. Feature: Back wiring for #18-10 AWG with clearly defined torque values (14-16 lbf-in for #10-14 AWG; 20 lbf-in for #8 AWG). Business Impact: Facilitates fast, repeatable terminations and consistent electrical contact pressure, which translates to longer connector life and fewer field failures. Application: Panel terminations in automation cabinets and distributed power enclosures that demand dependable wiring. Feature: IP66 rated environmental protection with NEMA 4X/NEMA 3R options and a rugged housing. Business Impact: Provides robust dust ingress resistance and water spray protection, reducing corrosion risk and downtime in wet or corrosive settings. Application: Outdoor equipment housings, washdown stations, and food or chemical processing lines. Feature: Glass-filled nylon thermoplastic body with nickel-plated bronze contacts. Business Impact: Delivers high-strength, impact resistance and reliable conductivity even in harsh temperatures, leading to lower replacement costs. Application: Industrial control panels, switchgear housings, and slippery or damp environments where durability matters. Feature: L6-15 locking configuration, two-pole, three-wire grounding, 15A at 250V. Business Impact: Ensures safe, compliant power delivery and simplifies installation in mixed-voltage automation ecosystems. Application: Locking receptacle in automation panels and equipment requiring secure power taps for motors and drives.
