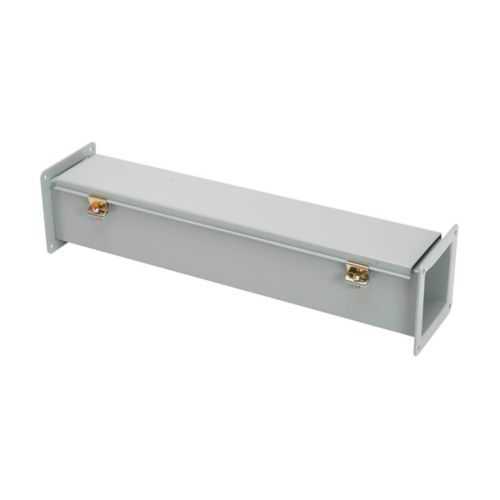

Eaton 66120-12FW Wireway - NEMA 12, UL Listed
Part Number: 66120-12FW
Quick Summary
Eaton B-Line wireway 66120-12FW provides rugged cable management for industrial enclosures. Long runs and dense wiring often complicate installations, driving downtime and costly rework. UL Listed and CSA C22.2 certified, with a NEMA 12 interior rating, this 6x6x120 inch wireway is built for reliability in harsh environments. The hinged cover, gasketed retaining screws, and seamless poured-in-place construction translate to quicker commissioning and sustained protection. With ANSI 61 gray finish and 14 gauge steel, it pairs durability with easy compatibility in standard electrical rooms, control panels, and process equipment. This solution supports scalable cable routing while aligning with maintenance-friendly design and cost-sensible integration strategies.
Product Information
Extended Description
66120-12FW Eaton: Eaton B-Line series wireway, 6" height, 120" length, 6" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
66120-12FW
UPC
782051324921
Product Length/Depth
120 in
Product Height
6 in
Product Width
6 in
Product Weight
68.725 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured to body w/ gasketed retaining screw
Type
12FW wireway
Feature: 120 inch length and 6x6 inch footprint align with typical panel spacing and long cable runs. Business Impact: Reduces field splicing and misrouting, accelerating assembly and simplifying future upgrades. Application: Control panels and enclosure banks where extended runs are common. Feature: 14 gauge steel with ANSI 61 gray finish. Business Impact: Delivers robust mechanical protection and corrosion resistance in indoor environments while maintaining consistent aesthetics. Application: Industrial manufacturing floors and data centers with harsh ambient conditions. Feature: Hinged closure with gasketed retaining screws. Business Impact: Maintains a tight seal to preserve interior cleanliness and reduce maintenance intervals. Application: Enclosures in dusty or workshop environments requiring reliable ingress protection. Feature: NEMA 12 rating. Business Impact: Provides dust and limited moisture protection, promoting longer service life and lower repair costs. Application: Indoor electrical rooms, process areas, and equipment cabinets. Feature: Wireway hanger mounting method and seamless poured-in-place construction. Business Impact: speeds installation, ensures structural integrity, and minimizes field adjustments. Application: Overhead or wall-mounted wiring runs in new builds or retrofits. Feature: Cover secured to body with gasketed retaining screws. Business Impact: Protects sensitive wiring during vibration and maintenance, reducing fault opportunities. Application: Heavy-duty industrial installations with frequent access needs.
Get a Quick Quote for a Eaton 66120-12FW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 66120-12FW?
Enquire Now
FAQs
The 66120-12FW is designed for the Eaton B-Line family and adheres to the 12FW wireway type specifications. It uses a wireway hanger mounting method and features a hinged cover with a gasketed retaining screw, ensuring seamless integration with other B-Line components and standard enclosure footprints. This compatibility minimizes field modifications and supports scalable wiring between panels and racks.
To achieve an effective seal, use the gasketed retaining screws included with the cover and verify the gasket seating against the body. Confirm the ANSI 61 gray finish and 14 gauge steel body are clean and free of debris before assembly. Periodic checks during maintenance should re-seal any gaps after cabinet openings to preserve dust and moisture protection.
Yes. The 66120-12FW carries a NEMA 12 rating, designed for interior environments with dust and light moisture exposure. While not an IP-rated product, it provides reliable protection for typical indoor electrical rooms, control panels, and process equipment cabinets when used as directed and paired with appropriate accessories.
The 66120-12FW is UL Listed and CSA C22.2 certified, signaling adherence to established safety and performance standards. These certifications support compliance with regulatory procurement criteria, customer safety requirements, and internal QA processes, reducing risk during installation and enabling smoother audits and inspections.
Expect reduced downtime from faster installation and easier future upgrades due to the long 120 inch run and modular B-Line components. The hinged, gasketed cover minimizes maintenance touchpoints, while the sturdy 14 gauge steel and seamless construction extend service life, lowering replacement and warranty costs over the system’s lifetime.
