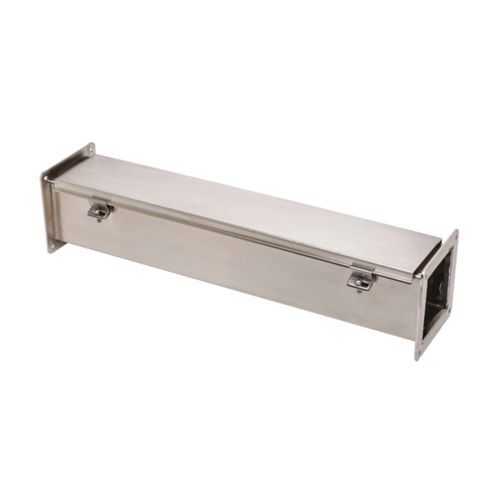

Eaton 66120-4XSFW Wireway - NEMA 4X, 304 Stainless
Part Number: 66120-4XSFW
Quick Summary
Eaton 66120-4XSFW Wireway is a rugged enclosure backbone for durable wire routing in industrial facilities. It addresses a common pain point: exposed cabling that’s vulnerable to moisture, dust, and mechanical damage, leading to downtime. The design carries essential protections with NEMA 4X rating and CSA C22.2 UL Listed certification, ensuring reliable performance in wet or harsh environments. Crafted from 304 stainless steel with 16-gauge walls, the unit resists corrosion while maintaining a clean appearance. The hinged cover with screw clamps allows fast access, and the wireway hanger mounting simplifies installation. This solution integrates seamlessly with Eaton’s B-Line wireway ecosystem, delivering long-term value through durability, safety, and predictable lifecycle costs.
Product Information
Extended Description
66120-4XSFW Eaton: Eaton B-Line series wireway, 6" height, 120" length, 6" width, 4XSFW wireway, Wireway hanger, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 16 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
66120-4XSFW
UPC
782051134537
Product Length/Depth
120 in
Product Height
6 in
Product Width
6 in
Product Weight
53.417 lb
Certifications
CSA C22.2. UL Listed
Material thickness
16 gauge
Finish color
#4 brushed
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured by hinges, screwclamps&s.s. hardware
Type
4XSFW wireway
Feature: 304 stainless steel construction with 16 gauge wall provides robust corrosion resistance and structural integrity. Business Impact: Extends service life in challenging environments and reduces maintenance cycles. Application: Ideal for outdoor installations, washdowns, and corrosive industrial settings where reliability is critical. Feature: Hinged closure with screw clamps and stainless hardware enables secure sealing and rapid access. Business Impact: Decreases downtime during inspections or modifications and supports fast rework without tools. Application: Useful in process lines, service corridors, and equipment rooms where frequent access is required. Feature: Large 120 in length with 6 in by 6 in cross-section offers substantial routing capacity. Business Impact: Supports long cable runs with minimal splicing and improved organization, reducing install time. Application: Suitability for long-run installations in manufacturing plants and facilities with dense cabling. Feature: Wireway hanger mounting simplifies installation and eliminates complex mounting subsystems. Business Impact: Reduces field labor and synchronization with existing support structures, accelerating project timelines. Application: Compatible with standard B-Line wiring supports and retrofit projects. Feature: Seamless poured-in-place construction and 16 gauge thickness enhance rigidity and surface finish. Business Impact: Improves durability under vibration and cleaning regimes, lowering lifecycle costs. Application: Environments with frequent cleaning, high traffic, or impact exposure. Feature: CSA C22.2 UL Listed certifications and NEMA 4X rating provide compliance assurance. Business Impact: Facilitates regulatory approvals, insurance acceptance, and safer operation. Application: Industrial facilities requiring recognized safety and performance standards.
Get a Quick Quote for a Eaton 66120-4XSFW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 66120-4XSFW?
Enquire Now
FAQs
The 66120-4XSFW uses a wireway hanger mounting method and hinges for the cover, with stainless screw clamps and hardware included. Begin by mounting the hanger supports to the structure, then align the 6x6 inch cross-section sections along the desired run. Attach the hinged cover using the provided fasteners, ensuring a watertight seal in accordance with the NEMA 4X rating. The 120 inch length can be joined with compatible sections to extend runs as needed, simplifying future expansion.
Key specs are 120 inches in length, 6 inches in height, and 6 inches in width, with a 16 gauge wall thickness crafted from 304 stainless steel. The unit weighs approximately 53.417 pounds and carries a CSA C22.2 UL Listed certification. The hinged cover and seamless poured-in-place construction contribute to durability and ease of maintenance in demanding environments.
Yes. The wireway is rated NEMA 4X and constructed from 304 stainless steel, making it appropriate for outdoor installations and washdown environments where moisture, dust, and corrosive exposure are concerns. Its hinged cover with stainless hardware supports frequent access while maintaining enclosure integrity.
The 66120-4XSFW is CSA C22.2 certified and UL Listed, with a NEMA 4X rating. These certifications support regulatory compliance, safety requirements, and reliability in industrial settings, helping simplify audits and insurance considerations for facilities using the B-Line wireway system.
The hinged cover design and stainless hardware enable quick inspections and reconfigurations, reducing downtime. The corrosion-resistant 304 stainless steel and seamless construction extend service life in harsh facilities, lowering replacement frequency and maintenance labor over the life of the installation. Compatibility with standard B-Line components also minimizes integration risk.
