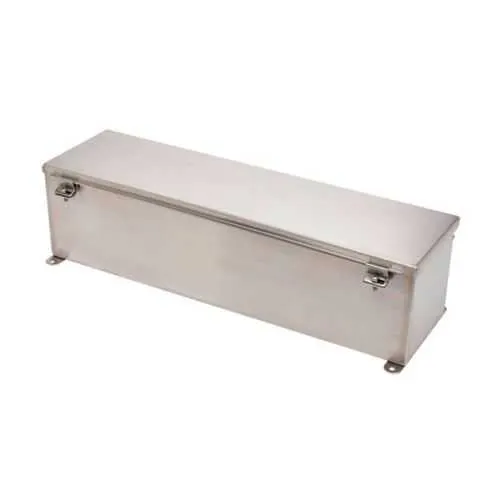

Eaton 6624-4XSWT Wiring Trough - NEMA 4X, Stainless 304
Part Number: 6624-4XSWT
Quick Summary
The Eaton 6624-4XSWT wiring trough provides durable wire management for clean, safe industrial enclosures. Maintenance teams often battle corrosion, moisture, and clutter when wiring runs are exposed to harsh plant environments. UL Listed and CSA C22.2 certified components, combined with a NEMA 4X-rated stainless steel body, help protect assets and workers. With a seamless poured-in-place body, hinged cover, and welded mounting feet, this trough simplifies installation while optimizing space across compact control panels. The 6624-4XSWT supports 14 gauge, 304 stainless steel construction and a #4 brushed finish, delivering reliability with long-term cost savings for industrial automation projects.
Product Information
Extended Description
6624-4XSWT Eaton: Eaton B-Line series wiring trough, 6" height, 24" length, 6" width, 4XSWT wiring trough, Welded external mounting feet, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 14 gauge
Product Name
Eaton B-Line series wiring trough
Catalog Number
6624-4XSWT
UPC
782051172201
Product Length/Depth
24 in
Product Height
6 in
Product Width
6 in
Product Weight
16.403 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
#4 brushed
Closure type
Hinged
Special features
Cover heldby semi-hinges,screw clamps,s.s hardware
Type
4XSWT wiring trough
Feature: 304 stainless steel, 14 gauge thickness provides superior corrosion resistance and structural durability. Business Impact: Extends service life in damp, washdown, or chemically aggressive environments, reducing replacement costs and downtime. Application: Food & beverage, chemical processing, and outdoor installations benefit from long-lasting performance. Feature: 6" height x 6" width x 24" length, 14 gauge, seamless body. Business Impact: Optimizes enclosure footprint while supporting dense cable runs, improving cable organization and reducing installation time. Application: New builds and retrofit projects where space is at a premium. Feature: Hinged cover with screw clamps and semi-hinges plus welded external mounting feet. Business Impact: Fast access for maintenance and inspections, secure mounting, and reduced labor during installation. Application: Panel assemblies in manufacturing lines and process plants. Feature: NEMA 4X rated with brushed #4 finish. Business Impact: Enhanced protection against moisture, dust, and corrosion; aesthetic finish lowers maintenance barriers and cleaning costs. Application: Environments with frequent washdowns and rigorous cleaning protocols. Feature: Seamless poured-in-place construction. Business Impact: Eliminates crevices that trap dirt and moisture, simplifying cleaning and compliance checks. Application: Enclosures in sanitary or high-hygiene settings.
Get a Quick Quote for a Eaton 6624-4XSWT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 6624-4XSWT?
Enquire Now
FAQs
The 6624-4XSWT is engineered for Eaton’s B-Line series, featuring welded external mounting feet and a 24" length that aligns with common enclosure footprints. It supports standard mounting patterns and provides a secure, quick-install solution with a hinged cover for easy access.
Key specs include 6" height, 6" width, 24" length, 14 gauge stainless steel, 304 grade material, #4 brushed finish, hinged cover, welded external mounting feet, seamless poured-in-place construction, and a NEMA 4X rating for robust environmental protection.
NEMA 4X indicates excellent protection against windblown dust and water, corrosion, and washdowns. Paired with 304 stainless steel, it is ideal for corrosive or wet environments found in manufacturing, food processing, and chemical processing facilities.
The trough is UL Listed and CSA C22.2 certified, ensuring electrical safety and adherence to recognized international standards. This supports procurement decisions, regulatory compliance, and reduces risk during audits.
Stainless steel construction and a seamless design minimize corrosion and cleaning needs, lowering maintenance time. The hinged cover and robust mounting feet speed installation and inspections, reducing downtime and extending service life, which translates to lower total cost of ownership over the project lifetime.
