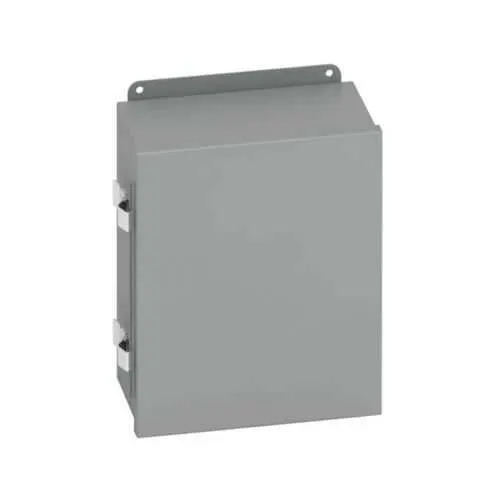

Eaton 664-12CHQRC JIC Panel Enclosure - NEMA 12 UL 508A
Part Number: 664-12CHQRC
Quick Summary
Eaton B-Line series JIC panel enclosure is a compact wall-mounted solution for electrical control panels. Operators often contend with tight spaces and gasket wear that compromise protection and service life. This model delivers UL 508A safety compliance and a NEMA 12 rating, backed by a 16-gauge carbon steel shell with ANSI 61 gray paint and a seamless poured-in-place gasket for reliable dust and splash protection. The wall-mount design with external feet simplifies installation in crowded switchgear rooms and machine centers, while the hinged cover and cont. pianohinge improve clearance and maintenance access. Together, these characteristics translate into safer, faster panel upgrades and reduced downtime in industrial enclosures & electrical infrastructure applications.
Product Information
Extended Description
664-12CHQRC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 12, Hinged cover, 12CHQRC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-12CHQRC
UPC
782051702866
Product Length/Depth
4 in
Product Height
6 in
Product Width
6 in
Product Weight
3.9 lb
Certifications
UL 508A NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHQRC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. pianohinge, panelmountprov.,pull drawn catch
NEMA Rating
12
Country of origin
US
The enclosure uses compact 6 in x 6 in x 4 in dimensions to fit tight control-housing footprints, enabling efficient panel layouts and easier service access, which translates to reduced installation time and space costs in machine assemblies. It carries a NEMA 12 rating and UL 508A compliance, delivering robust protection against dust and non-heavy splash while meeting stringent electrical safety standards for industrial environments, lowering risk of equipment downtime. Built from 16-gauge carbon steel with ANSI 61 gray painted finish, the unit resists wear in harsh environments, extending service life and reducing replacement frequency for long-term total cost of ownership improvements. A seamless poured-in-place gasket and hinged cover with cont. pianohinge provide reliable sealing and long-term durability, minimizing maintenance intervals and fugitive dust ingress during routine access and inspections. External mounting feet offer flexible installation options, facilitating wall or equipment-adjacent mounting and improving cable routing and accessibility for panel wiring and diagnostics. The small single-door design, panel-mount provisions, and pull-drawn catch streamline integration with existing enclosures and control panels, aligning with typical automation infrastructure projects and retrofit scenarios.
Get a Quick Quote for a Eaton 664-12CHQRC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-12CHQRC?
Enquire Now
FAQs
For installation, use the wall-mount configuration with external mounting feet to secure the enclosure in tight spaces. The hinged cover and continuous piano hinge simplify opening and access during maintenance, while the 6x6x4 inch footprint fits common control panel layouts. Ensure mounting surfaces accommodate carbon steel weight and provide proper clearance for cable entry and gasket seating.
Yes. The 664-12CHQRC is designed to meet UL 508A safety requirements and bears a NEMA 12 rating, offering dust and light splash protection. Its carbon steel construction with a durable ANSI 61 gray finish provides reliable performance in harsh industrial environments, making it a solid choice for control panels and electrical enclosures in manufacturing facilities.
The enclosure measures 6 inches in height, 6 inches in width, and 4 inches in depth, with an approximate weight of 3.9 pounds. Its small single-door design and external mounting feet support quick, space-conscious installation in congested control rooms or machine installations.
The seamless poured-in-place gasket provides consistent sealing against dust and light liquids, while the hinged door with a cont. piano hinge reduces door sag and misalignment over time. This combination minimizes maintenance interruptions, maintains enclosure integrity, and supports longer service intervals in busy industrial environments.
Durable 16-gauge carbon steel with a robust finish resists corrosion and wear, lowering replacement costs. The hinged access and external feet simplify wiring and inspections, reducing labor time during upgrades or retrofits. Overall, expect lower downtime, improved reliability of control panels, and a favorable total cost of ownership in automation and electrical infrastructure projects.
