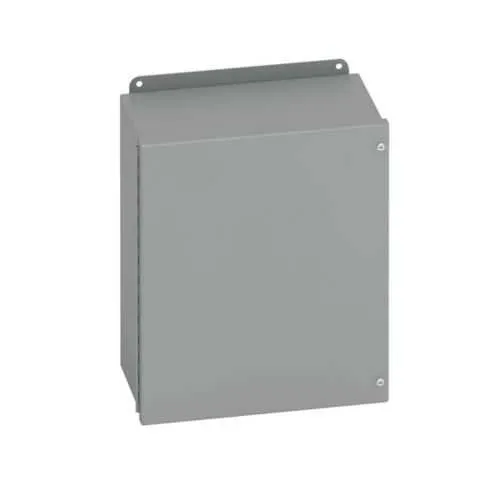

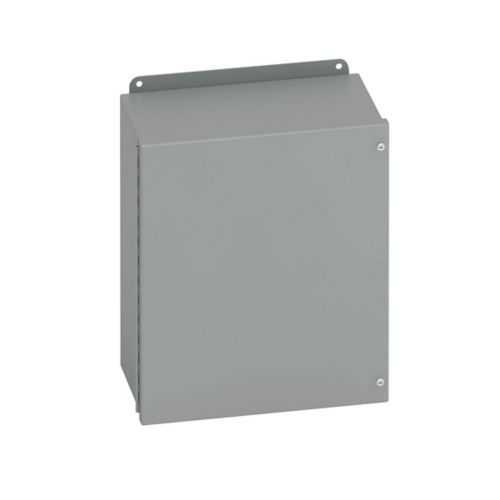

Eaton 664-12CHSC JIC panel enclosure - NEMA 4X
Part Number: 664-12CHSC
Quick Summary
Eaton 664-12CHSC JIC panel enclosure protects electrical controls in harsh environments. Designers and technicians rely on rugged enclosures to keep sensitive components safe in dusty, washdown, and outdoor settings. This small, wall-mount unit carries UL 508A and CSA C22.2 certifications and a NEMA 4X rating, signaling suitability for tough industrial spaces and weather exposure. By combining a hinged cover with external mounting feet and a durable 16-gauge carbon steel body, it delivers fast, repeatable installation, long-term reliability, and predictable maintenance costs. Leveraging Eaton's B-Line series, it also helps standardize enclosure strategy across facilities and simplifies spare-part alignment with existing panels.
Product Information
Extended Description
664-12CHSC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 4X, Hinged cover, 12CHSC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-12CHSC
UPC
782051702880
Product Length/Depth
4 in
Product Height
6 in
Product Width
6 in
Product Weight
3.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount prov.,plated screws
NEMA Rating
4X
Country of origin
US
Feature: NEMA 4X protection with an oil-resistant gasket reduces ingress of water, dust, and chemicals. Business impact: boosts uptime by protecting internal drives and controls in harsh environments. Application: outdoor equipment, washdown areas, and damp factories. Feature: 6x6x4 in compact footprint with wall mounting feet external saves wall space and enables quick installation. Business impact: lowers labor costs and improves panel density. Application: tight-engineered control panels in OEM machinery. Feature: 16 gauge carbon steel construction with a hinged external-mount door provides durability and serviceability. Business impact: minimizes replacement costs and speeds field service. Application: industrial control cabinets and process lines. Feature: UL 508A and CSA C22.2 certifications plus NEMA 4X rating ensure regulatory compliance and reliable performance. Business impact: reduces risk during audits and supports facility-wide safety standards. Application: plant-wide control enclosures in manufacturing and energy sectors. Feature: External mounting feet and cont. piano hinge with plated screws enable field-ready upgrades. Business impact: simplifies retrofits and equipment upgrades. Application: retrofit projects on existing B-Line installations.
Get a Quick Quote for a Eaton 664-12CHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-12CHSC?
Enquire Now
FAQs
The enclosure is designed for wall mounting, featuring external mounting feet that simplify installation on a vertical surface. This arrangement reduces the need for additional brackets and aligns with standard B-Line series mounting footprints, enabling quick integration into existing enclosures and control panels.
Yes. The enclosure carries UL 508A and CSA C22.2 certification marks in addition to a NEMA 4X rating, ensuring compliance for industrial electrical installations, outdoor use, and challenging environments while supporting safety and regulatory audits.
The 664-12CHSC enclosure measures 6 inches in height, 6 inches in width, and 4 inches in depth. It weighs 3.9 pounds and uses 16 gauge carbon steel with a painted ANSI 61 gray finish.
Yes. The NEMA 4X rating, oil-resistant gasket, and carbon steel construction provide reliable protection against wind, rain, dust, and chemical exposure, making it suitable for outdoor installations and washdown areas when used with compatible components.
It is part of the Eaton B-Line series, designed for compatibility with external mounting feet, hinged covers, and panel-mount provisions. Retrofit projects and new installations benefit from consistent mounting interfaces and fast panel finishes, reducing lead times and spare-part complexity.
