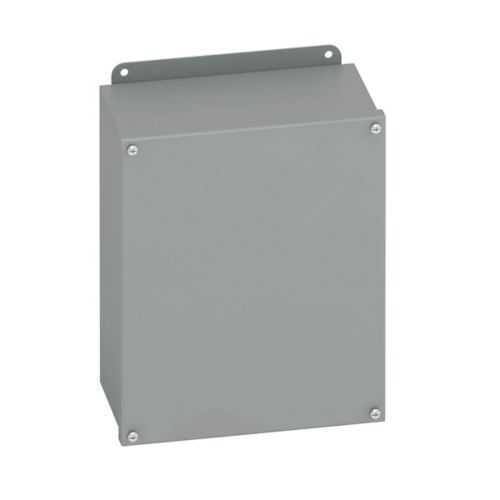

Eaton 664-12SC JIC Panel Enclosure - NEMA 12 Rating
Part Number: 664-12SC
Quick Summary
Eaton 664-12SC JIC panel enclosure is a compact solution for protecting electrical components in industrial control panels. Designers and technicians often battle corrosion, gasket failures, and space constraints during installation; this enclosure addresses those challenges with a rugged carbon steel body and an oil-resistant gasket. It carries UL 50, CSA C22.2, and a NEMA 12 rating to support indoor, dust- and oil-resistant service. By combining a wall-mount design with external mounting feet and a small single-door format, it enables faster, safer installations. For customers prioritizing reliability and compliance, this enclosure delivers durable protection while maintaining accessible serviceability and scalable integration into existing control architectures.
Product Information
Extended Description
664-12SC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 12, Screw cover, 12SC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-12SC
UPC
782051320053
Product Length/Depth
4 in
Product Height
6 in
Product Width
6 in
Product Weight
3.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12SC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Captive plated screws, panel mount provisions
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: The 664-12SC uses a carbon steel body with a 16 gauge wall and an oil-resistant gasket, delivering a robust enclosure that resists oil exposure and everyday wear. This translates to longer service intervals, reduced maintenance costs, and improved uptime for manufacturing lines and process equipment where enclosure integrity matters. Application: compact, wall-mounted panels in automotive, food and beverage, and general manufacturing settings. Feature → Business Impact → Application: A 6 in height by 6 in width by 4 in depth footprint fits tight control panels without sacrificing protection, enabling more compact layouts and easier retrofit projects. The small single-door design simplifies access for wiring and component replacement, accelerating commissioning and troubleshooting in machine centers and packaging lines. Feature → Business Impact → Application: External mounting feet and wall mounting capability provide flexible installation options, reducing field mounting time and eliminating the need for additional brackets. This is ideal for OEMs and integrators who must deploy multiple enclosures across a line or retrofit existing panels in confined spaces. Feature → Business Impact → Application: Captive plated screws and panel mount provisions streamline assembly and maintenance, decreasing hardware loss and ensuring consistent panel integrity during service intervals. This supports faster changeouts, safer locks, and predictable headroom for future I/O expansions in control cabinets. Feature → Business Impact → Application: NEMA 12, UL 50 and CSA C22.2 certifications guarantee compliance with indoor, dust- and oil-resistant environments, reducing audit risk and enabling procurement teams to standardize enclosures across multiple facilities. This is particularly valuable for cost-controlled projects requiring repeatable specifications and supplier reliability. Feature → Business Impact → Application: The ANSI 61 gray painted finish and carbon steel construction balance durability with cost efficiency, delivering a protective enclosure that withstands routine cleaning and light chemical exposure common in industrial environments. This supports long-term asset protection and predictable maintenance budgeting.
Get a Quick Quote for a Eaton 664-12SC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-12SC?
Enquire Now
FAQs
The 664-12SC is designed for wall mounting with external mounting feet and screw-covered access. Its 6x6x4 in dimensions fit compact control panels, while the small single-door configuration simplifies wiring and access. This enclosure accommodates standard electrical components and mounting patterns used in typical control cabinet layouts, reducing field adaptation time.
Key specs include a 6 in H x 6 in W x 4 in D footprint, 3.7 lb weight, carbon steel construction with a 16 gauge wall, and an oil-resistant gasket. Certifications include UL 50, CSA C22.2, and a NEMA 12 rating, validating indoor, dust- and oil-resistant service and overall conformity to recognized standards.
The 664-12SC is a NEMA 12 enclosure intended for indoor applications where dust and oily exposure are common but not for outdoor weather exposure. For outdoor or harsher environments, consider enclosures with higher NEMA ratings (such as NEMA 4/4X) or additional weatherproofing measures to ensure reliable operation and long-term protection.
The enclosure uses captive plated screws and panel mount provisions to simplify maintenance. The screw cover provides secure closure, while the external feet enable flexible installation in tight spaces. Together, these features reduce maintenance time, minimize hardware loss, and support quick component swaps during routine servicing or upgrades.
Investing in the 664-12SC yields measurable value from reduced downtime and maintenance due to durable carbon steel construction, reliable sealing with oil-resistant gasket, and straightforward installation. Standardized NEMA 12 compliant enclosures also simplify procurement, training, and part replacement across multiple machines, delivering lower total cost of ownership over the equipment lifecycle.
