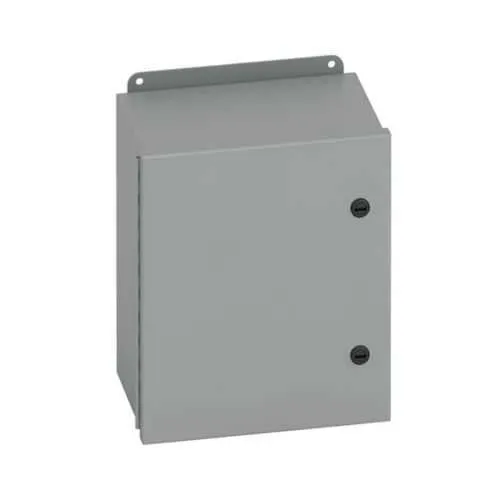

Eaton 664-4QT JIC Panel Enclosure - NEMA 4
Part Number: 664-4QT
Quick Summary
The Eaton 664-4QT JIC panel enclosure is a compact wall-mount enclosure designed for industrial control panels. It addresses the persistent challenge of protecting sensitive components from dust, moisture, and accidental contact in harsh environments. UL 50, CSA C22.2, and NEMA ratings underpin its compliance and rugged performance across regulated facilities. Built from 16-gauge carbon steel with a seamless gasket, it delivers durable protection while enabling fast installation and reliable service. Its small footprint and external mounting feet make it a practical fit for space-constrained panels, aligning with cost- and time-saving projects.
Product Information
Extended Description
664-4QT Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-4QT
UPC
782051881714
Product Length/Depth
4 in
Product Height
6 in
Product Width
6 in
Product Weight
6.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
The 664-4QT uses a compact 6 in high by 6 in wide by 4 in deep footprint, delivering a 6.6 lb enclosure that fits tight control panels without compromising strength. This small form factor reduces cabinet depth requirements and helps create room for wiring and labeling, making retrofits and new installations in machine rooms more efficient. It also supports a broad range of small-component layouts, enabling flexible panel design while maintaining serviceability. With a NEMA 4 rating, seamless gasket, and painted ANSI 61 gray finish, the enclosure delivers reliable ingress protection against dust and water spray, reducing unplanned downtime and maintenance costs. The hinged cover with continuous piano hinge and 1/4-turn latches enables quick, tool-assisted access, speeding routine inspections and panel servicing. External mounting feet simplify precise orientation during wall mounting, improving installation accuracy and reducing site labor. The 16-gauge carbon steel wall also provides rigidity against impact while keeping weight manageable for field work. Finally, UL 50 and CSA C22.2 compliance give engineers confidence in regulatory readiness for regulated industries, while its overall design supports scalable panel upgrades over the equipment lifecycle.
Get a Quick Quote for a Eaton 664-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-4QT?
Enquire Now
FAQs
For installation, plan wall mounting using the external mounting feet to achieve proper alignment and level positioning. The 6x6x4 inch footprint pairs with a 16-gauge carbon steel body and a hinged cover that permits quick access. Ensure adequate clearance for the continuous piano hinge and 1/4-turn latches, and confirm compatibility with existing panel layouts to optimize wiring routes and labeling.
Key specs include a 6 inch height, 6 inch width, and 4 inch depth, with a 6.6 lb weight. It is manufactured from 16-gauge carbon steel, finished in ANSI 61 gray paint, and features a seamless gasket and hinged cover. The enclosure is rated NEMA 4 and carries UL 50 and CSA C22.2 certifications, supporting reliable operation in controlled environments.
Yes. The NEMA 4 rating provides protection against windblown dust and water ingress from splashes, while the seamless gasket and painted carbon steel construction offer durable resistance in factory settings. Its compact size is ideal for confined spaces, and the external feet support secure wall mounting that stays stable in vibration-prone environments.
The enclosure carries UL 50 and CSA C22.2 certifications along with a NEMA 4 rating. These credentials indicate compliance with recognized safety and performance standards, which is crucial for regulated sectors such as manufacturing, process industries, and facilities requiring certified electrical enclosures for reliability, risk mitigation, and permit-ready installations.
Maintenance is streamlined by the hinged cover, continuous piano hinge, and 1/4-turn latches, which reduce teardown time during inspections. The lightweight 6.6 lb body and external feet simplify mounting and reconfiguration, cutting labor costs. Combined with durable 16-gauge carbon steel and a seamless gasket, the risk of frequent replacements decreases, delivering a favorable total cost of ownership over the lifecycle of electrical infrastructure.
