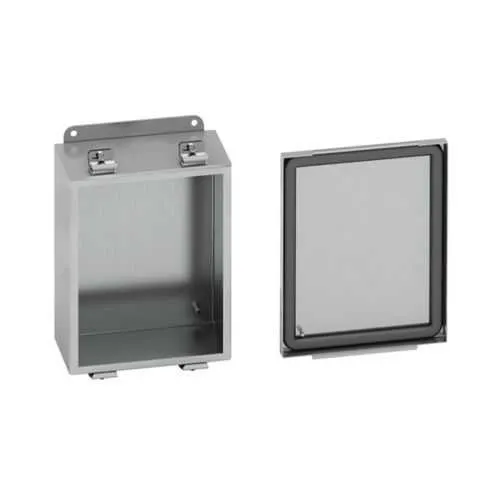

Eaton 664-4XALC JIC Enclosure - NEMA 4X Aluminum
Part Number: 664-4XALC
Quick Summary
The Eaton 664-4XALC JIC panel enclosure houses electrical gear in harsh environments. Operators and engineers often struggle with ingress protection, corrosion risk, and mounting compatibility when sourcing rugged enclosures. UL 50, CSA C22.2, and NEMA 4X ratings provide reliable, code-compliant protection in factories and outdoor sites. The aluminum construction with a 14-gauge wall, a compact 6x6x4 in footprint, and a wall-mount design simplify installation while reducing weight and shipment costs. With a screw-cover front and external mounting feet, it delivers quick serviceability and flexible mounting options, ensuring long service life in demanding industrial settings.
Product Information
Extended Description
664-4XALC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 4X, Screw cover, 4XALC enclosure, Wall mount, Small single door, External mounting feet, Aluminum, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-4XALC
UPC
782051700923
Product Length/Depth
4 in
Product Height
6 in
Product Width
6 in
Product Weight
2 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Aluminum
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XALC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4X
Country of origin
US
Feature: Aluminum construction with 14 gauge wall provides robust mechanical protection while maintaining lighter weight. Business Impact: Easier handling, faster field deployment, and lower shipping costs. Application: Ideal for compact panel installations where weight and space are critical. The aluminum finish also resists corrosion, extending enclosure life in challenging environments. Feature: NEMA 4X rating with seamless gasket protection delivers reliable ingress protection against water, dust, and corrosion. Business Impact: Reduced downtime and maintenance due to superior sealing. Application: Suitable for washdown areas, outdoor installations, and harsh indoor spaces. Feature: Small single-door, screw-cover design enables quick access while maintaining enclosure integrity. Business Impact: Accelerated maintenance and reduced labor time during routine checks. Application: Frequent parameter changes or component swaps in tight wall spaces. Feature: External mounting feet and wall mounting method provide flexible, tool-friendly installation. Business Impact: Faster installs and adaptable mounting on uneven or constrained walls. Application: Field deployments with varying mounting geometries. Feature: Panel mount provisions and stainless door clamps add versatility for internal components and door security. Business Impact: Improves compatibility with accessories and long-term door security. Application: Custom control panels requiring secure access and robust mounting options.
Get a Quick Quote for a Eaton 664-4XALC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-4XALC?
Enquire Now
FAQs
The 664-4XALC uses a wall-mount method with external mounting feet, allowing straightforward installation on standard walls or supports. Its 6x6x4 in footprint fits compact control panels, and the screw-cover front simplifies access while preserving enclosure integrity. This design minimizes required hardware and facilitates alignment during mounting.
This enclosure carries UL 50 and CSA C22.2 certifications, with an NEMA 4X rating. These standards confirm mechanical integrity, electrical enclosure safety, and protection against windblown dust, rain, and corrosion. Meeting these certifications helps streamline compliance during commissioning and reduces risk during inspections in harsh environments.
The enclosure measures 6 inches in height and width, with a 4-inch depth, forming a compact 6x6x4 in footprint. It weighs 2 pounds and is crafted from aluminum with a 14-gauge wall thickness. The finish is a #4 brushed gray, designed for durable, low-maintenance service life.
Yes. The 664-4XALC is rated NEMA 4X, featuring a seamless poured-in-place gasket and aluminum construction that resist corrosion and washdown exposure. This makes it well-suited for outdoor installations or damp indoor spaces where reliable sealing and long-term protection are required.
Key features include a screw cover for quick access, external mounting feet for flexible mounting, and a compact wall-mount design that reduces installation footprint. The panel mount provisions and stainless door clamps further simplify integration of internal components while maintaining reliable door security during operation.
