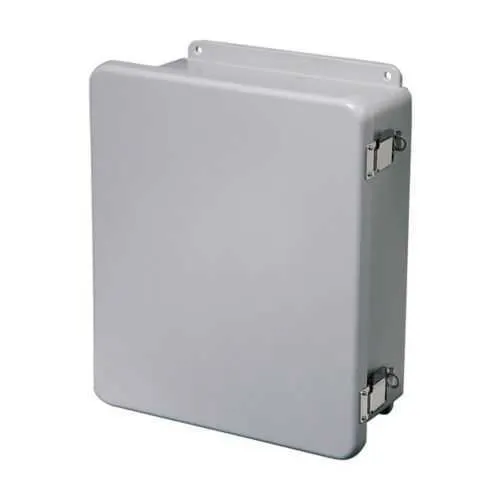

Eaton 664-4XFCHQRC JIC panel enclosure - NEMA 4X rugged
Part Number: 664-4XFCHQRC
Quick Summary
The Eaton B-Line series JIC panel enclosure protects electrical components in industrial control panels and service cabinets. The rugged fiberglass housing delivers durable protection in challenging environments while keeping installation straightforward. For engineers wrestling with gasket integrity, mounting flexibility, and lock security, this enclosure addresses those pain points with a hinged cover, external mounting feet, and padlock provisions. It carries a NEMA 4X rating for washdown and corrosive environments and meets UL 50 and CSA C22.2 requirements, underscoring compliance and safety. By combining reliable weather resistance with easy wall mounting and seamless gasket performance, the unit supports faster deployments, lower maintenance costs, and longer service life for critical systems.
Product Information
Extended Description
664-4XFCHQRC Eaton: Eaton B-Line series JIC panel enclosure, 7.50" height, 4.75" length, 7.50" width, NEMA 4X, Hinged cover, 4XFCHQRC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-4XFCHQRC
UPC
782051523904
Product Length/Depth
4.75 in
Product Height
7.5 in
Product Width
7.5 in
Product Weight
2.8 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
The enclosure uses fiberglass to deliver high strength with lightweight handling, reducing tool wear and installation time while resisting corrosion in demanding environments. This translates to lower total cost of ownership as maintenance cycles stretch and downtime is minimized. Its wall-mount design, external mounting feet, and robust hinge mechanism enable rapid field setup, simplifying retrofits and new builds alike, especially in tight spaces where service access matters. The seamless poured-in-place gasket and stainless pull drawn catch enhance sealing reliability, decreasing moisture ingress and unauthorized access while maintaining smooth operation over the enclosure’s service life. Padlock provisions add a simple, scalable security layer without compromising quick access for technicians during maintenance windows. Dual-grade certifications (UL 50 / CSA C22.2) reinforce compliance for regulated industries, supporting both safety and regulatory performance.
Get a Quick Quote for a Eaton 664-4XFCHQRC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-4XFCHQRC?
Enquire Now
FAQs
Yes. This JIC panel enclosure is designed for wall mounting with external mounting feet, providing flexible installation options for tight spaces. The 7.5 in width and height accommodate common control panel footprints, while the hinged door facilitates quick service access without disassembly.
Sealing is provided by a seamless poured-in-place gasket, which minimizes moisture intrusion and maintains enclosure integrity during frequent washdowns. Coupled with the NEMA 4X rating, this design supports reliable operation in corrosive or humid environments and reduces gasket-related maintenance.
The enclosure meets UL 50, NEMA, and CSA C22.2 standards, ensuring electrical safety and regulatory compliance across North American markets. This is critical for applications in regulated industries and for equipment installed in facilities requiring strict safeguarding of electrical enclosures.
Industries such as manufacturing, food & beverage, water treatment, and packaging benefit due to washdown compatibility, corrosion resistance, and lightweight handling. It is ideal for indoor or outdoor control panels, service cabinets, and junction points that demand rugged protection without added weight.
The fiberglass construction resists corrosion and reduces maintenance intervals, while the sealed gasket and security provisions minimize downtime and unauthorized access. Lightweight handling speeds installation and retrofit projects, contributing to lower labor costs and extended service life for critical automation assets.
