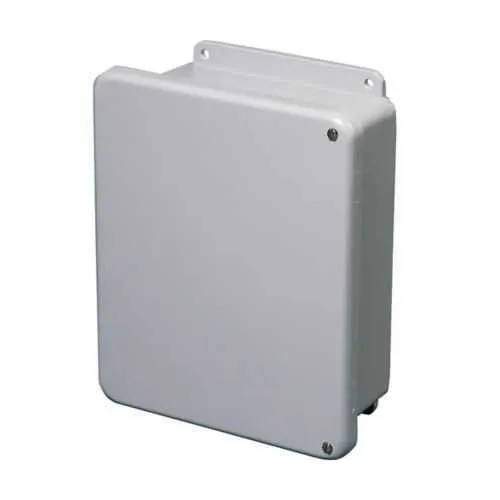

Eaton 664-4XFCHSC JIC Panel Enclosure - NEMA 4X
Part Number: 664-4XFCHSC
Quick Summary
The Eaton 664-4XFCHSC JIC panel enclosure protects electrical controls in industrial panels. Installers often grapple with weatherproofing, corrosion, and space constraints in compact control cabinets. UL 50, NEMA 4X, and CSA C22.2 certifications back up its safety and reliability in harsh environments. This fiberglass, wall-mounted solution with external mounting feet and a hinged cover delivers robust protection while simplifying mounting and service. Using it in B-Line series installations supports durability, reduces maintenance cycles, and improves overall uptime for mission-critical automation projects.
Product Information
Extended Description
664-4XFCHSC Eaton: Eaton B-Line series JIC panel enclosure, 7.50" height, 4.75" length, 5.43" width, NEMA 4X, Hinged cover, 4XFCHSC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-4XFCHSC
UPC
782051523775
Product Length/Depth
4.75 in
Product Height
7.5 in
Product Width
5.43 in
Product Weight
2.8 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Stainless screws
NEMA Rating
4X
Country of origin
US
Fiberglass construction resists corrosion in humid or chemical environments, delivering a longer service life and lower replacement costs. Application: wash-down areas and manufacturing floors where metal enclosures deteriorate quickly. The enclosure carries a NEMA 4X rating, with UL 50 and CSA C22.2 certifications, providing dependable environmental protection and regulatory compliance. This reduces risk and audits for harsh environments and outdoor locations. The hinged cover with a seamless poured-in-place gasket ensures weatherproof sealing, which minimizes ingress and maintenance while enabling easy field servicing. Wall-mount with external mounting feet offers flexible installation, saving space and simplifying retrofits in existing control layouts. The medium single-door design, stainless screws, and gray fiberglass finish support quick field servicing and durable operation in demanding facilities. Lightweight at 2.8 lb further eases on-site handling during installation and relocations.
Get a Quick Quote for a Eaton 664-4XFCHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-4XFCHSC?
Enquire Now
FAQs
Yes. The 664-4XFCHSC is designed for wall-mount installations and features external mounting feet for flexible placement. Its compact 7.5 in height and 5.43 in width provide a small footprint that fits standard control panels, while the hinged cover enables straightforward access. This combination helps streamline retrofits and new installs in space-constrained environments.
The enclosure is molded from fiberglass and finished in gray, offering excellent resistance to corrosion. It carries a NEMA 4X rating and is UL 50 and CSA C22.2 certified, ensuring protection against dust, water, and wash-downs. The seamless poured-in-place gasket enhances sealing, reducing ingress in demanding facilities and improving reliability of housed electronics.
Absolutely. Its fiberglass construction, NEMA 4X rating, and seamless gasket are ideal for wash-down and humid environments. The enclosure’s size accommodates compact PLCs and I/O modules, while the hinged cover and external feet simplify maintenance and field servicing. This makes it well-suited for manufacturing lines, process equipment, and other rugged automation applications.
Key certifications for this model include UL 50, NEMA 4X rating, and CSA C22.2. UL 50 confirms enclosure safety and performance, NEMA 4X validates weather and corrosion protection, and CSA C22.2 supports compliance in North American facilities. Together, they reduce risk in regulated environments and streamline supplier qualification for industrial automation projects.
Choosing fiberglass with a NEMA 4X rating reduces corrosion-related maintenance and parts replacement, extending service life in harsh environments. The lightweight 2.8 lb design simplifies handling, while external feet ease retrofits and installation. Over the life of the equipment, this translates to lower maintenance labor, fewer downtime events, and a favorable total cost of ownership for critical control systems.
