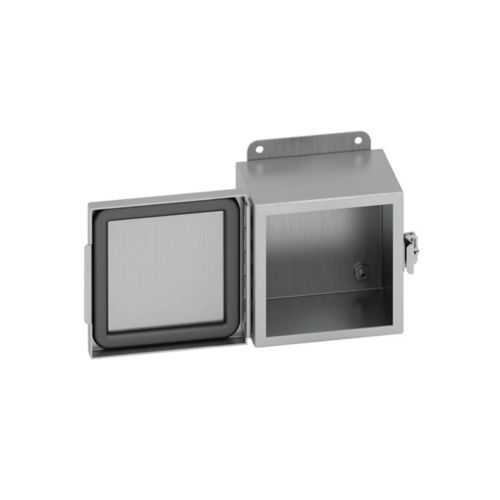

Eaton 664-4XSCHC JIC Panel Enclosure - NEMA 4X
Part Number: 664-4XSCHC
Quick Summary
Eaton 664-4XSCHC JIC panel enclosure protects control panels in industrial environments. This wall-mount solution addresses corrosion, washdown exposure, and gasket failure that can trigger costly maintenance and downtime. The enclosure carries UL 50, CSA C22.2, and NEMA 4X certifications, reflecting safety and reliability in demanding conditions. Built from 304 stainless steel with a 16 gauge wall and a seamless poured-in-place gasket, it resists corrosion and leaks. External mounting feet simplify installation and service, while the hinged cover, cont. piano hinge, and stainless door clamps enable quick access. For engineers pursuing long-term value, this enclosure integrates with Eaton B-Line components to support robust protection and predictable uptime.
Product Information
Extended Description
664-4XSCHC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 4X, Hinged cover, 4XSCHC enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-4XSCHC
UPC
782051702842
Product Length/Depth
4 in
Product Height
6 in
Product Width
6 in
Product Weight
3.9 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSCHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Material and finish: The enclosure uses 304 stainless steel with a 16 gauge wall, offering superior corrosion resistance and durability in washdown and outdoor environments, reducing replacement costs and downtime. This tiny yet rugged footprint is ideal for compact control panels in chemical plants or food processing facilities. Storage and access are streamlined by the hinged cover and continuous piano hinge, enabling rapid servicing without compromising enclosure integrity. Application: Great for automation panels in harsh environments where cleanability and resistance to moisture are critical.
Get a Quick Quote for a Eaton 664-4XSCHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-4XSCHC?
Enquire Now
FAQs
The enclosure is designed for wall mounting with external mounting feet, enabling secure installation on compatible walls. It features a hinged cover and continuous piano hinge to provide fast, tool-free access to internal components, which minimizes downtime during maintenance and upgrades. Confirm mounting hole spacing to ensure compatibility with adjacent equipment.
Yes. The 664-4XSCHC carries a NEMA 4X rating and is made from 304 stainless steel, offering excellent corrosion resistance and ingress protection in washdown and outdoor settings. A seamless poured-in-place gasket enhances sealing, while UL 50 and CSA certifications validate safety and performance for regulated facilities.
The enclosure measures 4 in in depth, 6 in in height, and 6 in in width, with a weight of 3.9 lb. It is crafted from 304 stainless steel with a 16 gauge wall, finished in a #4 brushed gray aesthetic. Mounting is wall-based with external feet, and the door is a small single hinged design.
The 664-4XSCHC is certified to UL 50, CSA C22.2, and NEMA standards. These certifications ensure electrical safety, reliability, and compliance with recognized industry guidelines, supporting safe installation in regulated environments and providing assurance for continued long-term performance in industrial settings.
The combination of a cont. piano hinge, hinged cover, external mounting feet, and corrosion-resistant 304 stainless steel reduces field labor during installation and maintenance. The robust sealing and durable construction lower leakage and component replacement risks, delivering lower lifecycle costs and longer service intervals for industrial automation projects.
