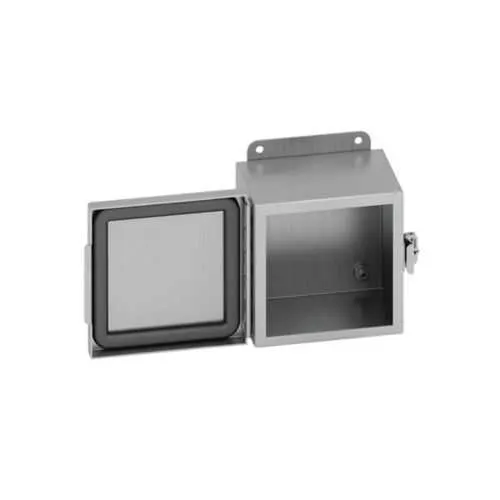

Eaton 664-4XSS6CHC JIC panel enclosure - NEMA 4X
Part Number: 664-4XSS6CHC
Quick Summary
Eaton 664-4XSS6CHC JIC panel enclosure safely houses control electronics in harsh industrial environments. Operators and maintenance teams often struggle with corrosion, ingress, and gasket failures in demanding locations. This enclosure carries UL 50, CSA C22.2, and NEMA ratings that validate protective performance across indoor and washdown settings. Built for wall mounting with external feet and a hinged cover, it minimizes installation time while maximizing safety. By combining 316 stainless steel with a seamless poured in-place gasket, it delivers long-term durability and lower lifecycle costs, helping manufacturers meet stringent reliability standards without sacrificing accessibility. Additionally, the compact 6x6x4 inch footprint fits tight control panels in space-constrained environments, reducing enclosure real estate while maintaining expansion headroom.
Product Information
Extended Description
664-4XSS6CHC Eaton: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 4X, Hinged cover, 4XSS6CHC enclosure, Wall mount, Small single door, External mounting feet, 316 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-4XSS6CHC
UPC
782051094787
Product Length/Depth
4 in
Product Height
6 in
Product Width
6 in
Product Weight
3.9 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSS6CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Feature: 316 stainless steel construction with a 16 gauge wall thickness delivers outstanding corrosion resistance and rugged durability in demanding environments. Business impact: this reduces maintenance frequency and extends enclosure life, delivering lower total cost of ownership. Application: ideal for washdown zones, chemical plants, and outdoor control panels where harsh conditions prevail. Feature: Seamless poured-in-place gasket and a hinged door with a cont. piano hinge. Business impact: this combination provides a tight seal against dust, water, and chemical splashes, minimizing leak paths and downtime. Application: suitable for process lines, food & beverage facilities, and outdoor installations that require reliable ingress protection. Feature: External mounting feet and wall-mount design. Business impact: simplifies mounting alignment, reduces installation time, and enhances vibration resistance in manufacturing floors and external equipment housings. Application: wall installations with easy leveling and secure fastenings in tight spaces. Feature: Small single-door configuration with hinged closure and stainless steel door clamps. Business impact: straightforward access for wiring and inspection while maintaining a compact footprint to optimize control cabinet layouts. Application: compact control panels in space-constrained environments where quick service matters. Feature: UL 50, CSA C22.2, and NEMA 4X compliance. Business impact: ensures regulatory alignment and safety, reducing certification overhead and risk. Application: applications across North America in sectors like industrial automation, water treatment, and packaging lines.
Get a Quick Quote for a Eaton 664-4XSS6CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-4XSS6CHC?
Enquire Now
FAQs
To install, mount the enclosure on a flat wall using the external mounting feet, ensuring level attachment and adequate clearance for wiring. The hinged cover provides convenient access during wiring and inspection, while the stainless steel door clamps secure the door without obstructing service. Use silicone or gasket-compatible sealant as needed to preserve the seamless gasket’s integrity, and verify compliance with UL 50 and CSA C22.2 requirements for your facility.
NEMA 4X protection indicates the enclosure is corrosion resistant, waterproof against hose-directed water, and suitable for outdoor or washdown environments. Coupled with 316 stainless steel construction and a seamless gasket, the enclosure resists moisture, dust, and contaminants, maintaining integrity of internal controls and electrical components in harsh conditions.
Yes. The 316 stainless steel material, NEMA 4X rating, and seamless gasket make it well suited for washdown areas common in food and beverage facilities. Its external feet and wall-mount design simplify installation in tight spaces, while the compact 6x6x4 inch footprint helps fit small control panels without compromising protection or service access.
The enclosure is rated UL 50, complies with CSA C22.2, and meets NEMA 4X requirements. This combination supports regulatory compliance and safety for North American installations, aiding auditors during facility assessments and helping ensure consistent protection across industrial automation and process environments.
The 316 stainless steel construction and seamless gasket reduce corrosion risk and ingress, lowering failure rates and maintenance intervals. The hinged door and external feet enable faster servicing and easier diagnostics, while the compact form factor saves enclosure space and can defer cabinet upgrades, delivering lower total cost of ownership over the asset life cycle.
