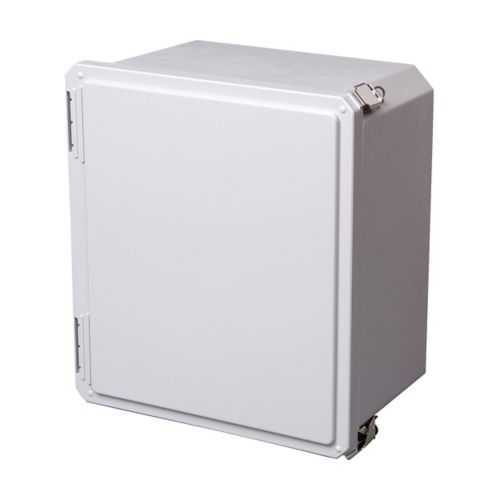

Eaton 664-SDFQR JIC Panel Enclosure - NEMA 4X
Part Number: 664-SDFQR
Quick Summary
The Eaton 664-SDFQR JIC panel enclosure secures control panels in harsh environments. Engineers often struggle with moisture intrusion, corrosion, and difficult field access in wet or dusty facilities. UL 50, NEMA 4X protection, and CSA C22.2 certification support reliability, safety, and code compliance across harsh applications. Its wall‑mount fiberglass body with a hinged cover and seamless gasket reduces installation time while standing up to aggressive environments. Optional external feet and padlock provisions add security and mounting versatility, delivering long‑term value for panel installations in industrial automation. This combination supports consistent performance in control rooms, manufacturing lines, and outdoor installations where weather resilience is essential.
Product Information
Extended Description
664-SDFQR Eaton: Eaton B-Line series JIC panel enclosure, 7.41" height, 4.31" length, 7.79" width, NEMA 4X, Hinged cover, SDFQR enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
664-SDFQR
UPC
782051524253
Product Length/Depth
4.31 in
Product Height
7.41 in
Product Width
7.79 in
Product Weight
2.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
SDFQR enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Fiberglass construction provides corrosion resistance and weather durability, reducing maintenance costs in humid or saline environments. The enclosure carries a NEMA 4X rating and UL 50/CSA C22.2 certifications, delivering reliable protection for electrical components in harsh facilities. In manufacturing and outdoor automation, this combination minimizes downtime and ensures regulatory compliance while preserving access for routine servicing. The rugged finish helps prevent field corrosion and reduces warranty disputes, making it a practical choice for long-term control panel housing. With a hinged cover and a seamless poured-in-place gasket, the enclosure blocks moisture and dust ingress while enabling quick, tool-free access for inspections and maintenance. The padlock provision and stainless pull-drawn catch strengthen security and durability in restricted areas. These design choices shorten commissioning and service cycles, reducing on-site downtime and improving instrument integrity. Optional external mounting feet add mounting versatility for uneven walls or equipment frames. Wall mounting with a medium single door design provides straightforward wiring access without compromising enclosure integrity. The compact 7.41 in height, 7.79 in width, and 4.31 in depth footprint balances space efficiency with interior room for common PLCs, relays, and power devices; it weighs only 2.5 lb for easier field handling. Compatibility with Eaton B-Line series ensures a cohesive enclosure ecosystem across facilities and simplifies spare-parts planning. Finish color gray and unfinished surface support on-site labeling and field customization. Industry professionals value this enclosure for predictable ROI: reduced corrosion-related outages, faster service, and simpler compliance documentation for UL 50 and CSA audits. Ideal for process control, water treatment, and material handling applications, it protects critical signals and controls in harsh environments while enabling flexible installation. By combining rugged protection with installation versatility, the 664-SDFQR supports faster project timelines and lower lifecycle costs for industrial automation initiatives. This combination also helps compliance teams demonstrate adherence to installed-base standards during audits.
Get a Quick Quote for a Eaton 664-SDFQR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 664-SDFQR?
Enquire Now
FAQs
The 664-SDFQR supports wall mounting and offers optional external mounting feet for attachment to uneven walls, equipment frames, or mounting rails. This flexibility simplifies retrofits and new installations in tight spaces, ensuring secure anchoring while preserving access to the hinged cover for quick servicing. Always verify wall backing and gasket seating to maintain NEMA 4X integrity.
Key dimensions are 7.41 inches in height, 7.79 inches in width, and 4.31 inches in depth. The enclosure weighs approximately 2.5 pounds, offering a compact yet sturdy housing for small control panels. Its fiberglass construction delivers corrosion resistance, and the gray unfinished finish supports field labeling and customization as needed.
Yes. The enclosure carries a NEMA 4X rating and UL 50/CSA C22.2 certifications, providing robust ingress protection against moisture, dust, and corrosion in outdoor or washdown environments. The hinged cover with a seamless gasket further prevents environmental contaminants from reaching internal components, making it suitable for process automation and outdoor control applications.
Security is addressed with padlock provisioning and a robust hinged closure. The stainless pull-drawn catch ensures smooth operation and corrosion resistance, helping deter tampering in restricted areas. These features deliver controlled access while maintaining quick serviceability for maintenance or upgrades.
Fiberglass construction offers long-term corrosion resistance, reducing repainting and replacement costs. The 664-SDFQR’s weather sealing simplifies compliance documentation for UL 50 and CSA audits and lowers maintenance downtime. For ROI, expect faster installations, fewer field failures, and scalable compatibility across multiple lines using Eaton’s B-Line system.
