Eaton 6660-4XSFW Wireway - NEMA 4X Stainless Steel
Part Number: 6660-4XSFW
Quick Summary

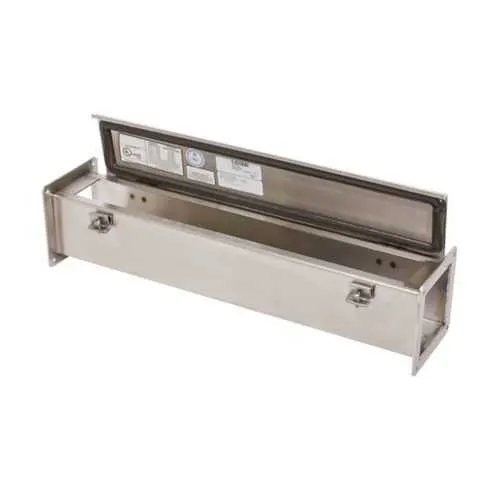

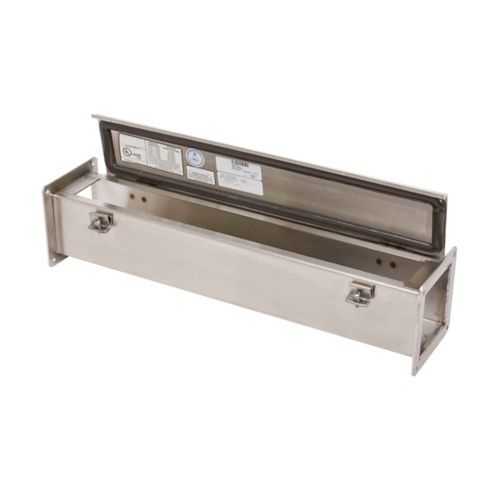

Eaton B-Line wireway protects and routes control wiring in industrial enclosures. In harsh facilities, traditional wiring channels can corrode or accumulate contaminants, leading to maintenance headaches and downtime. It carries a NEMA 4X rating and CSA C22.2 UL Listed certifications, ensuring reliable protection in demanding environments. With a 60 inch length, 6 inch height and width, 16 gauge 304 stainless steel construction, and a hinged cover, it offers easy installation and long-term reliability. By integrating with standard B-Line accessories and wireway hangers, it reduces installation time and total cost of ownership while improving wiring management and compliance.
Product Information
Extended Description
6660-4XSFW Eaton: Eaton B-Line series wireway, 6" height, 60" length, 6" width, 4XSFW wireway, Wireway hanger, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 16 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
6660-4XSFW
UPC
782051134520
Product Length/Depth
60 in
Product Height
6 in
Product Width
6 in
Product Weight
27.719 lb
Certifications
CSA C22.2. UL Listed
Material thickness
16 gauge
Finish color
#4 brushed
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover secured by hinges, screwclamps&s.s. hardware
Type
4XSFW wireway
Feature: 304 stainless steel construction with 16 gauge thickness provides strong corrosion resistance and structural integrity. Business Impact: Extends service life in humid or corrosive environments, reducing replacement and maintenance costs. Application: Ideal for manufacturing floors, process lines, and outdoor installations where exposure is a concern. Feature: Hinged, screw-clamp secured cover delivers quick access without sacrificing protection. Business Impact: Minimizes downtime during wiring inspections and upgrades, improving maintenance efficiency. Application: Frequent field modifications or expansion projects in automation systems. Feature: 60 in length with 6 in by 6 in footprint enables long continuous runs, reducing joint failures. Business Impact: Fewer joints mean lower leakage risk and faster installation. Application: Large-scale control panels and equipment rooms. Feature: 16 gauge wall and 304 stainless steel deliver robust enclosure protection. Business Impact: Compliance with demanding industry standards while maintaining durability under load. Application: Food & beverage, pharma, and heavy industrial environments. Feature: Wireway hanger mounting facilitates straightforward installation. Business Impact: Shorter installation times and easier retrofits, lowering labor costs. Application: New builds and facility upgrades where retrofit wiring is common. Feature: NEMA 4X rating and CSA C22.2 UL Listed certification provide regulatory compliance. Business Impact: Reduces risk of non-compliance penalties and ensures safety and reliability. Application: Enclosed industrial spaces with washdown or corrosive conditions.
Get a Quick Quote for a Eaton 6660-4XSFW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 6660-4XSFW?
Enquire Now
FAQs
Installation typically starts with mounting the wireway to suitable supports using the included wireway hanger hardware. Align the hinged cover for full access, secure with screws or clamps as specified, and verify continuity and grounding per your control panel requirements. The 60 in length supports long runs with fewer joints, speeding up deployment.
Key specifications include NEMA 4X protection rating, 304 stainless steel construction, 16 gauge wall thickness, and a hinged cover. The unit measures 60 in in length with a 6 in height and width, and carries CSA C22.2 and UL Listed certifications for safety and compliance.
Yes. The 6660-4XSFW uses 304 stainless steel and is rated NEMA 4X, providing strong resistance to corrosion, moisture, and washdown conditions. This makes it suitable for process industries, seafood and beverage facilities, and other environments where exposure is a concern.
The unit is part of Eaton’s B-Line wireway family and is compatible with standard wireway hangers, hinged-cover accessories, and EnviroShield wireway solutions. When planning a retrofit or new build, reference Eaton’s datasheets and the EnviroShield flyer for compatible components and installation guidance.
The combination of a hinged cover for rapid access, corrosion-resistant stainless steel, and a longer 60 in run minimizes maintenance interruptions and joint failures. These features translate to reduced downtime, longer service life, and lower total cost of ownership in demanding facilities.
