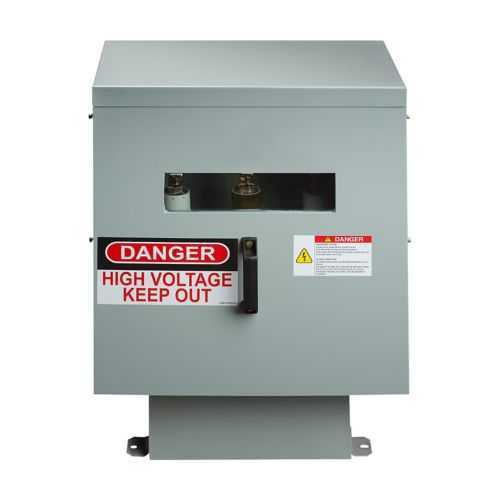

Eaton 675413MVF3 LV Unipak Capacitor Bank - 675 kVAR
Part Number: 675413MVF3
Quick Summary
The Eaton LV Unipak capacitor bank is a fixed, three‑phase power factor correction solution for large motor systems. Sizing, enclosure protection, and ongoing maintenance can create reliability risks and downtime if not addressed upfront. This model supports rugged NEMA-rated enclosures and weatherproof sealing, enabling indoor or outdoor installations with reduced ingress risk. By leveraging 4160 V operation and a 675 kVAR rating, it helps facilities meet grid support requirements while limiting utility penalties. For procurement teams, the combination of a compact footprint, accessible maintenance features, and industry-standard mounting options translates into faster deployments, lower lifecycle costs, and predictable performance in demanding environments.
Product Information
Extended Description
675413MVF3 Eaton: Eaton UNIVAR XV, Fixed Capacitor Banks, 4160V, Three-phase, 675 kVAR, Three-fuse, NEMA 1, 3R, and 12, 14 ga. steel finished with durable baked-on enamel, Viewing window, top and side entry, removable front cover
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
675413MVF3
UPC
786685260648
Product Length/Depth
20.42 in
Product Height
41.94 in
Product Width
26.68 in
Product Weight
295 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Catalog Notes
The wiring enclosure is gasketed to create a weatherproof, dustproof seal. Universal mounting flanges are provided for floor installation. The elimation of knockouts permits indoor/outdoor use.
Type
UNIVAR XV
Fuse type
Three-fuse
Options
Viewing window, top and side entry, removable front cover
Phase
Three-phase
Product Category
Fixed Capacitor Banks
Voltage rating
4160 V
Enclosure
NEMA 1, NEMA 3R, NEMA, NEMA 12
Enclosure material
14 gauge steel finished with durable baked-on enamel
Rating
675 kVAR
Feature: UNIVAR XV fixed capacitor bank is designed to deliver consistent reactive power compensation across three‑phase systems. Business Impact: Improves power factor, reduces kVAR penalties, and enhances overall electrical efficiency. Application: Suitable for large motor and process loads where PF correction contributes to energy savings and reduced utility charges. The system’s compatibility with 4160 V networks supports integration into existing substations without expensive transformer changes. Feature: Three‑fuse protection and a secure enclosure provide safer startup and easier maintenance. Business Impact: Minimizes fault propagation and simplifies troubleshooting, lowering downtime costs. Application: Critical in industrial plants with high inrush currents and frequent switching. Feature: Viewing window, top and side entry, removable front cover enable quick inspection and serviceability. Business Impact: Cuts maintenance time and improves reliability through rapid diagnostics. Application: Plant floor deployments where technicians must verify capacitor status without disassembly. Feature: Enclosure options include NEMA 1, NEMA 3R, and NEMA 12 with gasketed sealing for weatherproofing. Business Impact: Enables indoor/outdoor use with dust and moisture protection, reducing environmental risk. Application: Outdoor substations and indoor switchgear rooms. Feature: 14 gauge steel enclosure with baked-on enamel finish offers durability in harsh environments. Business Impact: Extends service life and lowers corrosion-related maintenance costs. Application: Harsh manufacturing floors and outdoor installations, where rugged construction matters.
Get a Quick Quote for a Eaton 675413MVF3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 675413MVF3?
Enquire Now
FAQs
This unit is a three‑phase, 4160 V capacitor bank rated at 675 kVAR with three‑fuse protection. It supports NEMA 1, 3R, and 12 enclosure configurations and features top and side entry with a removable front cover for easy service. Universal floor mounting flanges enable flexible installation, while gasketed enclosures provide weatherproof operation for indoor or outdoor environments.
Key specs include 4160 V voltage rating, 675 kVAR rating, three‑phase configuration, and a three‑fuse design. The unit is part of Eaton UNIVAR XV fixed capacitor banks and has a viewing window for status checks and a gasketed enclosure for protection. Dimensions are 20.42 in (L) × 26.68 in (W) × 41.94 in (H), with an estimated weight of 295 lb.
Yes. The 675413MVF3 is designed for indoor or outdoor use with gasketed sealing and weatherproof capability. Enclosures support NEMA 1, 3R, and 12 ratings, and the top/side entry and removable front cover simplify outdoor maintenance. These features help protect the capacitor bank in harsh environments while meeting facility reliability requirements.
By delivering 675 kVAR of reactive power at 4160 V, the bank improves power factor, reduces peak current, and lowers utility penalties. The unit’s rugged enclosure and maintenance features shorten downtime during inspections, while the viewing window enables proactive monitoring. Overall, this translates to measurable energy savings, improved equipment uptime, and lower total cost of ownership.
The model is covered by Eaton's warranty policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. For field support, Eaton’s specification sheet outlines installation guidance, electrical connections, and safety considerations to ensure proper commissioning and long-term reliability.
