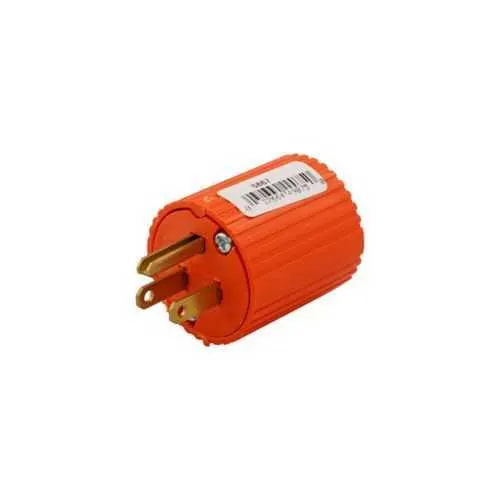

Eaton 6867-BOX Straight Blade Plug - UL NOM 6221 02
Part Number: 6867-BOX
Quick Summary
Eaton 6867-BOX straight blade plug is a back-wire, 15A, 125V industrial plug for panel wiring. Engineers struggle with back-wire terminals that loosen over time, causing arcing and downtime in control panels. This unit carries UL NOM and Federal Specification Classification 6221 02, validating its reliability in demanding environments. It also supports secure screw connections and orange thermoplastic housing for quick identification, improving installation speed and reducing wiring errors. Designed for industrial wiring devices and standard 5-15P configurations, it delivers a robust, ready-to-wire solution for OEM panels and field installations. The 0.67-inch cord range accommodates typical #18-12 AWG conductors, while the 14 lbf-in torque rating ensures consistent retention without over-tightening.
Product Information
Extended Description
6867-BOX Eaton: Eaton straight blade plug , #18-12 AWG, 15A, Industrial, 125V, Back wire, Orange, Brass, Thermoplastic, 5-15P, Two-pole, two-wire, grounding, Screw, 0.67", Thermoplastic, ED Box
Product Name
Eaton straight blade plug
Catalog Number
6867-BOX
UPC
032664490750
Product Length/Depth
2.38 in
Product Height
3.75 in
Product Width
2.38 in
Product Weight
0.2 lb
Certifications
UL NOM Federal Specification Classification 6221 02
Device type
Plug
Type
Plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Standard grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.67"
Material
Thermoplastic
Packaging type
ED Box
Color
Orange
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-15P
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Thermoplastic
Receptacle type
Two-pole, two-wire, grounding
Residential Buyers Guide B-54
Commercial and residential straight blade vinyl receptacles
Eaton Specification Sheet - 6867-BOX
Feature: Amperage rating of 15A and voltage rating of 125V with NEMA configuration 5-15P. Business Impact: Standardizes power connections across industrial assets, reducing part variety and compatibility risk. Application: Suitable for control panels, automation cabinets, and power distribution blocks. This reduces downtime and accelerates onboarding of new equipment. Feature: Brass contact material and thermoplastic body deliver durable, corrosion-resistant performance in harsh environments. Business Impact: Longer service life minimizes maintenance costs and replacement cycles. Application: Ideal for high-traffic electrical cabinets and industrial environments where reliability is critical. Feature: Back-wire termination plus screw-in option for three-wire connections. Business Impact: Faster, more secure terminations with predictable torque, cutting assembly time and rework. Application: Field upgrades and new installations with #18-12 AWG conductors. Feature: Orange color-coding and ED Box packaging support quick identification and safe handling in busy facilities. Business Impact: Improves wiring accuracy and reduces misconnection risk during panel assembly. Application: OEM panel builds and distribution-ready stock. Feature: Torque rating of 14 lbf-in guides installers to proper tightness, preventing looseness and arcing. Business Impact: Consistent electrical performance and reduced service calls. Application: High-demand industrial panels requiring reliable connections. Feature: Certifications including UL NOM and Federal Specification 6221 02 provide regulatory assurance. Business Impact: Compliance coverage simplifies audits and supports industry-standard safety programs. Application: Industrial manufacturing, logistics hubs, and energy-intensive equipment environments.
Get a Quick Quote for a Eaton 6867-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 6867-BOX?
Enquire Now
FAQs
Installation is straightforward: prepare #18-12 AWG conductors, insert into the back-wire terminals, and secure with the included screws. The design supports a quick connect without sacrificing torque, reducing installation time on control panels. The 14 lbf-in torque spec helps technicians achieve consistent results across multiple terminations, minimizing rework in busy electrical rooms.
The 6867-BOX carries UL NOM and Federal Specification Classification 6221 02, which confirms compliance with applicable safety and performance standards for industrial wiring devices. This certification supports audit readiness and helps ensure continued regulatory alignment when used in industrial panels, OEM assemblies, and service upgrades.
Yes. The device is a two-pole, three-wire plug configured for NEMA 5-15P compatibility, rated at 15A and 125V. This makes it suitable for common industrial and commercial power supplies, reducing the need for adapters and ensuring reliable acceptance in standard outlets for control equipment and machines.
Use conductors in the #18-12 AWG range. The plug supports back-wire termination for speed, with additional screw terminations for secure, durable connections. Torque should be applied to 14 lbf-in to maintain proper compression and prevent loosening, which helps minimize arcing and maintenance intervals in harsh environments.
You’ll gain reduced downtime due to more reliable back-wire terminations and quicker installation, lowering labor costs during panel builds and field upgrades. The durable brass contacts, thermoplastic body, and UL NOM 6221 02 compliance also translate to longer service life and fewer replacement parts, delivering a favorable total cost of ownership in manufacturing environments.
