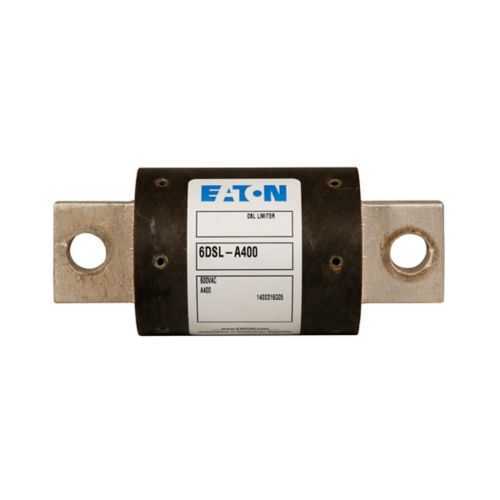

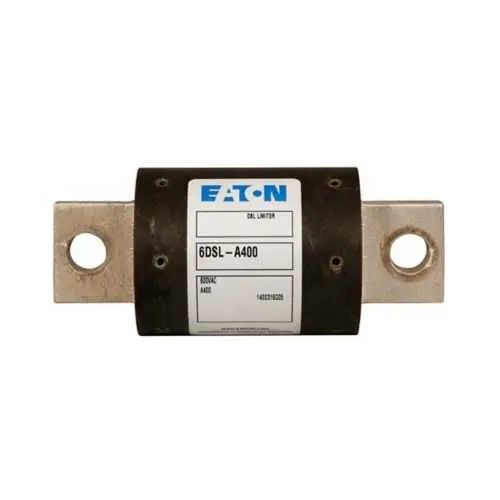

Eaton 6DSL-A400 CDC Cable Limiter - IEEE C37.41
Part Number: 6DSL-A400
Quick Summary
The Eaton 6DSL-A400 CDC cable limiter provides reliable current limiting protection for low-voltage feeders and motor circuits. Engineers often struggle with nuisance trips and space constraints in feeder cables; this unit delivers precise interruption while fitting compact rack layouts. It carries IEEE Std C37.41 compliance and is rated 600 V with a 200 kA interrupt rating, supporting reliable coordination in industrial feeders. Designed for compatibility with Eaton Bussmann series devices and other low-voltage protection schemes, it simplifies procurement while enhancing system reliability and uptime. Compact dimensions and a standard mounting footprint simplify panel integration, with a 5.75 in length and 2.5 in width that support tight installations. Customers also benefit from clear warranty terms and accessible technical datasheets to expedite sourcing and compliance checks.
Product Information
Extended Description
6DSL-A400 Eaton: Eaton Bussmann series, Low voltage DSL type current limiting fuse, 400A, 600V, 200 kA interrupt
Product Name
Eaton Bussmann series CDC cable limiter
Catalog Number
6DSL-A400
UPC
786670249283
Product Length/Depth
5.75 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
3.95 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEEE Std. C37.41
Amperage Rating
400 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Quantity
1
Special features
Cable limiter
With a 400 A amperage rating and a 200 kAIC interrupt rating at 600 V, the 6DSL-A400 delivers rapid fault interruption to protect cables and equipment. This capability minimizes fault energy, reduces arc flash exposure, and extends component life. It supports reliable service in factory feeders, switchgear buses, and machine-control circuits where fast, selective clearing is essential. The durable DSL-type design ensures consistent performance across repetitive duty cycles in challenging industrial environments. Designed as a cable limiter, it confines the fault current path to the affected segment, improving selective coordination across panels and downstream devices. The outcome is fewer nuisance trips and lower repair costs after a fault incident. Engineers can deploy it in motor starters, drive systems, and critical cable runs where protection boundaries must be clearly defined. The result is faster fault isolation and minimized collateral damage, even in dense wiring schemes. IEEE Std C37.41 compliance provides confidence in performance under short-circuit conditions, while the 600 V rating aligns with common low-voltage industrial systems. This combination supports compliance with utility and OEM specifications during panel builds and retrofits. The device pairs with standard Eaton Bussmann series protection to streamline testing and approvals. In practice, this means consistent protection that technicians can document quickly during commissioning. Physical footprint includes a length of 5.75 in, width of 2.5 in, and height of 2.5 in, with a weight of 3.95 lb, enabling straightforward installation in crowded enclosures. The compact form factor and standard mounting footprint reduce panel modification time and simplify retrofits across existing cabinets. Installation compatibility extends to both new builds and modernization projects where space is at a premium. The device's cable-oriented design supports tidy routing and protective harnessing in dense installations. Warranty terms (one year from installation or 18 months from shipment) help mitigate procurement risk and provide service continuity. Accessible technical datasheets and the Eaton Selling Policy 25-000 support maintenance planning and compliance checks. The unit integrates smoothly with Eaton Bussmann series devices and other low-voltage protection schemes, offering a clear upgrade path and consistent protection performance. Customer support and field engineering resources are available to validate configurations.
Get a Quick Quote for a Eaton 6DSL-A400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 6DSL-A400?
Enquire Now
FAQs
Install using the device's standard mounting footprint and terminals, ensuring the enclosure accommodates the 5.75 in length, 2.5 in width, and 2.5 in height. Connect following the enclosure diagrams and terminal torque guidelines, and verify a 400 A rating at 600 V. Adhere to IEEE C37.41 short-circuit practices and label clearly to define protection boundaries.
Key specs include a 400 A amperage rating, 200 kAIC interrupt rating, 600 V voltage rating, and IEEE Std C37.41 compliance. Additional details: weight 3.95 lb, dimensions 5.75 in L x 2.5 in W x 2.5 in H, catalog number 6DSL-A400, and UPC 786670249283. These factors support reliable, selective protection in industrial panels.
Yes. The 6DSL-A400 is designed for motor control centers, feeder protection, and critical cable runs where rapid, selective interruption is essential. Its cable limiter capability confines fault energy, reduces collateral damage, and improves uptime. It also integrates with Eaton Bussmann series protection to streamline commissioning and maintenance.
The device carries IEEE Std C37.41 compliance and is rated for 600 V, aligning with common low-voltage industrial systems. It is part of the Eaton Bussmann series with documented warranty terms, aiding panel builds and retrofits to meet utility and OEM requirements while simplifying verification and audits.
Warranty is one year from installation or 18 months from shipment, whichever occurs first. Documentation and datasheets are readily available, aiding commissioning and audits. By limiting fault energy and reducing downtime, the 6DSL-A400 lowers maintenance costs and improves plant uptime over the equipment's life.
