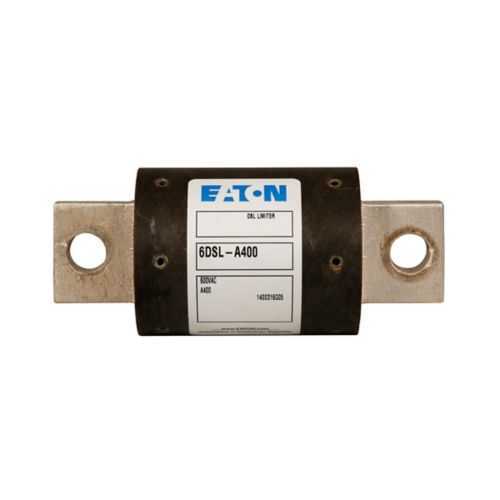

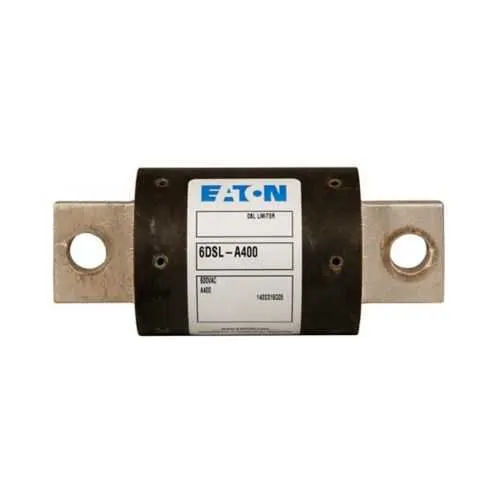

Eaton 6DSL-E2500 Cable Limiter Industrial - 200 kAIC
Part Number: 6DSL-E2500
Quick Summary
Eaton 6DSL-E2500 Cable Limiter Industrial protects feeders by rapid current limiting in heavy-duty power distribution systems. Engineers often wrestle with nuisance trips and undersized protections; this device delivers precise fault isolation while simplifying maintenance schedules. IEEE Std. C37.41 certification ensures reliable performance under fault conditions, while the Eaton Bussmann lineage supports compatibility with standard protection schemes. Together with a compact footprint and Eaton's warranty coverage, it translates to lower total cost of ownership and faster project readiness.
Product Information
Extended Description
6DSL-E2500 Eaton: Eaton Bussmann series, Low voltage DSL type current limiting fuse, 2500A, 600V, 200 kA interrupt
Product Name
Eaton Bussmann series CDC cable limiter
Catalog Number
6DSL-E2500
UPC
786670000570
Product Length/Depth
10.75 in
Product Height
4.75 in
Product Width
4.75 in
Product Weight
8.4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
IEEE Std. C37.41
Amperage Rating
2500 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Quantity
1
Special features
Cable limiter
Bussmann series Fuseology
Eaton Specification Sheet - 6DSL-E2500
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: High amperage rating and large interrupt capacity protects critical feeders in demanding installations. Business impact: reduces the risk of equipment damage and downstream faults, enabling safer, more reliable operations. Application: large motor feeders and heavy-duty distribution panels benefit from dependable 2500 A capacity and 200 kAIC interrupt rating. Feature: DSL-type current-limiting fuse technology provides fast fault clearance. Business impact: minimizes energy let-through, lowers arc flash exposure, and shortens outage times. Application: essential for cables routed in compact enclosures or crowded switchgear cabinets where space is at a premium. Feature: Compact, balanced dimensions (10.75 in L, 4.75 in H/W) simplify panel layout. Business impact: easier installation, reduced enclosure depth, and faster retrofit projects. Application: retrofit in existing Eaton Bussmann series protection schemes with minimal footprint impact. Feature: Certifications and standards alignment, including IEEE Std. C37.41, support regulatory compliance. Business impact: streamlines procurement for utility and industrial deployments, reducing engineering qualification time. Application: projects requiring documented performance under fault conditions. Feature: Warranty and support from Eaton, with established service policies. Business impact: lowers lifecycle risk and provides clear guidance for maintenance intervals. Application: ongoing aftermarket support and extended protection across multiple sites.
Get a Quick Quote for a Eaton 6DSL-E2500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 6DSL-E2500?
Enquire Now
FAQs
The 6DSL-E2500 is designed for straightforward panel mounting within standard enclosures. Verify enclosure depth allows the 10.75 in length, secure the unit per the manufacturer’s mounting pattern, and connect the cables using appropriate lug connections rated for 2500 A. Ensure adequate clearance for heat dissipation and follow lockout/tagout procedures during installation.
With a 2500 A amperage rating and a 200 kAIC interrupt rating at 600 V, this cable limiter rapidly limits fault current to protect cables and equipment. This combination reduces arc energy, minimizes downstream damage, and improves availability for heavy-load feeders common in motors and large distribution panels.
Yes, the 6DSL-E2500 carries IEEE Std. C37.41 certification, indicating performance reliability under fault conditions. It is designed to integrate with Eaton Bussmann protection schemes and standard low-voltage protection architectures, helping ensure consistent coordination with upstream devices.
Industrial power distribution, data centers, and large electrical rooms benefit from cable limiter protection. The device minimizes let-through energy during faults, protects feeders and cables, and supports uptime by reducing the likelihood and duration of abnormal outages in high-load environments.
Eaton provides a standard warranty per Selling Policy 25-000, typically one year from installation or eighteen months from shipment, whichever occurs first. This coverage, coupled with Eaton’s technical support, helps prevent unexpected replacement costs and supports maintenance planning across sites.
