Eaton 7.2WKNHO224 Bussmann motor fuse - BS 2692-1
Part Number: 7.2WKNHO224
Quick Summary
Eaton Bussmann motor fuse protects medium voltage motors in industrial facilities, ensuring reliable start-up and shutdown. When fuses fail to interrupt faults quickly, downtime and equipment damage can drive up costs. This device is designed to meet BS 2692-1 compliance, aligning with industry standards for safe operation in motor circuits, and it supports back-up protection with a robust, non-indicating design. By integrating the WKNH fuse type and compatible fuse clip, it delivers dependable fault clearance in demanding environments. The solution also supports streamlined sourcing and installation within existing electrical protection schemes, helping engineers improve uptime and overall plant reliability.
Product Information
Extended Description

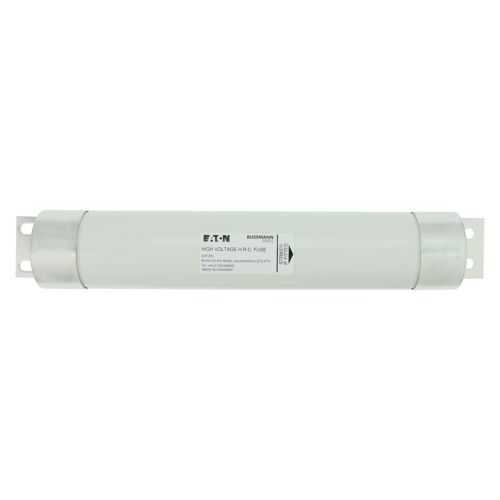

7.2WKNHO224 Eaton: Motor fuse-link, medium voltage, 224 A, AC 7.2 kV, 76 x 403mm, back-up, BS, with striker HS
Product Name
Eaton Bussmann series medium voltage motor fuse
Catalog Number
7.2WKNHO224
Model Code
7.2KV 224A 3" MOTOR START FUSE
UPC
051712837842
EAN
5027590488846
Product Length/Depth
403 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
4793 g
Warranty
Not Applicable
Compliances
BS 2692-1
Amperage Rating
224 A
Interrupt rating
40 kAIC
Voltage rating
7.2 kV
Application
Motor protection
Barrels
1
Class
Class back-up
Construction size
76 x 403 mm
Fuse indicator
Non Indicating
Fuse type
WKNH
Used with
A3354730 Nickel-plated copper fuse clip
Packaging type
Standard
Type
fuse
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
