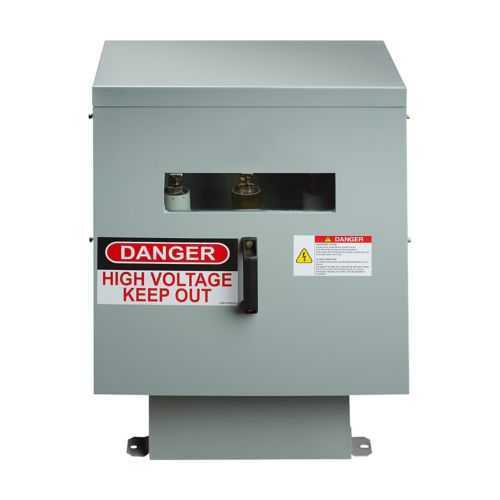

Eaton 700483MVF3 LV Unipak capacitor bank - NEMA 1, 3R, 12 enclosure
Part Number: 700483MVF3
Quick Summary
Eaton LV Unipak capacitor bank provides fixed capacitors for power factor correction in industrial power distribution. For engineers facing rising reactive power charges and motor efficiency targets, this unit offers a scalable remedy. Designed for three-phase systems at 4,800 V with a 700 kVAR rating, it ships in rugged NEMA 1, 3R, and 12 enclosures suitable for indoor or outdoor use. The viewing window, top and side entry, and removable front cover simplify maintenance and commissioning, while the durable baked-on enamel finish supports long service life. In short, it helps facilities reduce utility penalties and improve equipment reliability through efficient PF correction and predictable maintenance cycles.
Product Information
Extended Description
700483MVF3 Eaton: Eaton UNIVAR XV, Fixed Capacitor Banks, 4800V, Three-phase, 700 kVAR, Three-fuse, NEMA 1, 3R, and 12, 14 ga. steel finished with durable baked-on enamel, Viewing window, top and side entry, removable front cover
Product Name
Eaton LV Unipak capacitor bank
Catalog Number
700483MVF3
UPC
786685261737
Product Length/Depth
20.42 in
Product Height
41.94 in
Product Width
26.68 in
Product Weight
295 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Catalog Notes
The wiring enclosure is gasketed to create a weatherproof, dustproof seal. Universal mounting flanges are provided for floor installation. The elimation of knockouts permits indoor/outdoor use.
Type
UNIVAR XV
Fuse type
Three-fuse
Options
Viewing window, top and side entry, removable front cover
Phase
Three-phase
Product Category
Fixed Capacitor Banks
Voltage rating
4800 V
Enclosure
NEMA 1, NEMA 3R, NEMA, NEMA 12
Enclosure material
14 gauge steel finished with durable baked-on enamel
Rating
700 kVAR
Feature UNIVAR XV fixed capacitor bank for three-phase power factor correction → Business impact reduces reactive power and utility charges while stabilizing voltage profiles in large plants → Application ideal for feeders and motor circuits in manufacturing facilities. Feature 4800 V three-phase rating → Business impact supports integration with high-voltage distribution networks and allows scalable PF correction for big loads → Application suitable for industrial power systems and substations. Feature 700 kVAR rating with three-fuse protection → Business impact delivers robust PF correction with protective coordination to minimize fault propagation and downtime → Application across pumps, compressors, and heavy machinery with predictable performance. Feature Enclosure options include NEMA 1, 3R, and 12 with gasketed weatherproof seals → Business impact enables indoor and outdoor installation with reduced environmental risk and easier maintenance → Application across factory floors, outdoors, and space-constrained installations. Feature Viewing window, top and side entry, and removable front cover → Business impact streamlines inspection and servicing without full de-energization, shortening maintenance windows → Application for fast commissioning and reduced downtime. Feature 14 gauge steel enclosure with baked-on enamel and universal mounting flanges → Business impact enhances durability and simplifies floor mounting, lowering lifecycle costs → Application in rugged industrial environments with long service life. Feature Warranty of one year from installation or 18 months from shipment → Business impact reduces risk and simplifies procurement planning → Application across asset management programs and service contracts.
