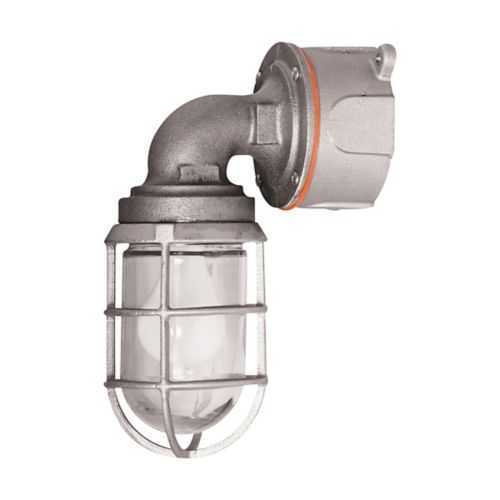

Eaton 707A7 Industrial Globe and Guard - IP66
Part Number: 707A7
Quick Summary
The Eaton Crouse-Hinds Pauluhn 707A7 industrial globe and guard provides reliable illumination for industrial spaces. A common challenge is choosing a fixture that withstands harsh environments while meeting safety codes. This model meets NEC/CEC standards, IP66 ingress protection, and ordinary-location classifications, with copper-free aluminum components for corrosion resistance. Installed on walls, it supports a 150 W incandescent lamp at 300 VAC with a 50/60 Hz supply. This combination translates to reliable performance, reduced maintenance, and safer operations in manufacturing, processing, and warehouse environments. Designed for wall mounting, the unit uses a medium base socket and supports up to A-21 size lamps. Its copper-free aluminum guard and glass globe balance durability with clear illumination for operators.
Product Information
Extended Description
707A7 Eaton: Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Glass globe, With cast copper-free aluminum guard, Incandescent, Copper-free aluminum, A-21 max. lamp size, Wall mount, 300 Vac, 150W
Product Name
Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard
Catalog Number
707A7
UPC
662276384965
Product Length/Depth
6.75 in
Product Height
11.75 in
Product Width
5.13 in
Product Weight
2.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting Method
Wall
Lamp type
Incandescent
Wattage
150W
Lamp size - max
A-21
Box depth
2"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Copper-free aluminum
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds 707A7 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1385 - Pauluhn 707 Wall Mount Incandescent
Eaton Specification Sheet - 707A7
IP66 protection and a copper-free aluminum guard form the core of the 707A7 design. The rugged enclosure shields a glass globe from dust, water, and incidental impact, reducing downtime and extending service intervals. In industrial environments such as manufacturing floors and warehouses, this level of protection translates directly into higher uptime and safer operator conditions. Material choice matters where corrosion is a concern. The copper-free aluminum guard resists humidity, chemicals, and repeated cleaning, lowering maintenance costs and avoiding frequent part replacements. For retrofit projects or new builds in damp spaces, this guard design simplifies compliance with cleanliness and sanitation standards. Electrical compatibility is built in. With a medium base socket and a maximum 150W incandescent lamp, the 707A7 accommodates common inventory while delivering predictable brightness. The 300 Vac, 50/60 Hz ratings ensure compatibility with standard industrial power systems, helping to minimize wiring changes during installation. Compact mounting footprint supports easy integration. Wall mounting, a 2" box depth, and the 6.75" length with 11.75" height allow for clean installations in restricted spaces, while a 2.8 lb weight simplifies handling and replacement. The combination of dimensions and mounting method reduces installation time and the need for custom brackets. Compliance and sourcing support procurement. NEC/CEC standards and IP66 protection align with typical facility code requirements for non-hazardous locations. The rugged globe and guard are compatible with existing Pauluhn catalog assets, and Eaton provides installation instructions and data sheets to de-risk projects.
Get a Quick Quote for a Eaton 707A7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 707A7?
Enquire Now
FAQs
The 707A7 is designed for wall mounting with a medium base socket and a maximum 150 W incandescent lamp. It operates at 300 Vac and 50/60 Hz, suitable for standard industrial power distribution. Ensure the wall surface can support the fixture’s 2 inch box depth and that wiring runs comply with NEC/CEC guidelines. Use the provided installation sheets for step-by-step mounting and connection details to minimize commissioning time.
Key specs include IP66 ingress protection, glass globe with a copper-free aluminum guard, 150W lamp maximum, medium base, 300 Vac, and 50/60 Hz operation. These translate to dust and water resistance, compatibility with common incandescent inventories, and safe operation in ordinary-location environments. The result is predictable brightness, reduced maintenance, and compliance with standard industrial electrical practices.
Yes. With ordinary-location classification, IP66 protection, and a rugged copper-free guard, the 707A7 is well-suited for warehouses and manufacturing floors where dust, moisture, and occasional impact are factors. Its wall-mount design and 150W incandescent option provide reliable, easy-to-replace illumination without complex electrical upgrades, supporting efficient workflow and operator safety.
The 707A7 complies with NEC/CEC standards and carries IP66 protection for durable service in ordinary locations. These certifications matter for regulatory compliance, insurance requirements, and safer plant operations. The fixture’s rating aligns with typical facility codes, reducing procurement risk and speeding up project approvals.
The copper-free aluminum guard and glass globe resist corrosion and environmental exposure, which reduces maintenance cycles and part replacements. Its compatibility with standard lamps and power conditions minimizes stocking needs and downtime during lamp changes, delivering a favorable total cost of ownership and faster time-to-value in plant modernization projects.
