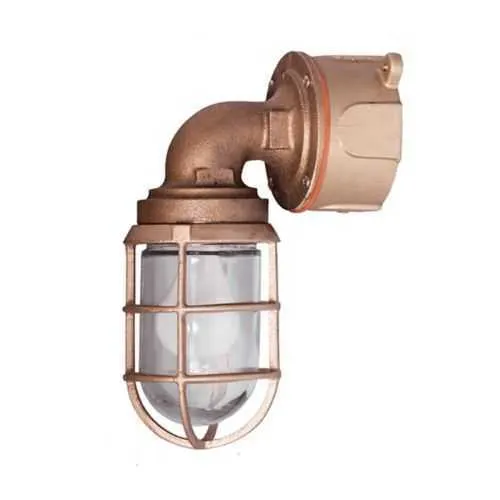

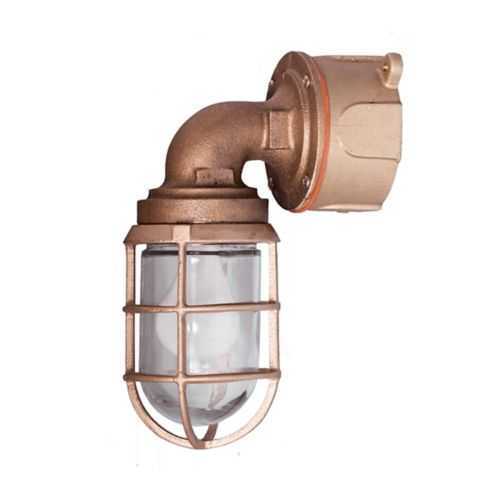

Eaton 707B7 Industrial Globe and Guard - IP66
Part Number: 707B7
Quick Summary
The Eaton 707B7 industrial globe and guard delivers rugged wall-mounted illumination for industrial facilities. Engineers often battle damaged globes and brittle guards in harsh environments, increasing downtime and maintenance costs. This luminaire meets IP66 ingress protection and NEC/CEC standards, and is suited for Ordinary/Non-Hazardous Locations. With brass guard and glass globe, it accepts up to a 150W incandescent lamp and uses a medium base, ensuring straightforward bulb replacement and long service life. The unit is designed for wall mounting, 300 VAC supply, and 50/60 Hz operation, making it a practical choice for warehouses, workshops, and other industrial spaces where uptime matters.
Product Information
Extended Description
707B7 Eaton: Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Glass globe, With cast brass guard, Incandescent, Brass, A-21 max. lamp size, Wall mount, 300 Vac, 150W
Product Name
Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard
Catalog Number
707B7
UPC
662276385078
Product Length/Depth
6.75 in
Product Height
11.75 in
Product Width
5.13 in
Product Weight
7.25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Lamp type
Incandescent
Wattage
150W
Lamp size - max
A-21
Box depth
2"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds 707B7 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1385 - Pauluhn 707 Wall Mount Incandescent
Eaton Specification Sheet - 707B7
Brass guard construction provides robust protection against impacts and corrosion, reducing maintenance downtime in busy production areas and outdoor-adjacent spaces. The IP66 rating delivers dependable dust and water resistance, safeguarding critical lighting in dusty or damp environments and supporting compliance in Ordinary/Non-Hazardous Locations. A glass globe offers clear illumination with durable heat and impact resistance, enabling reliable visibility in high-contrast industrial tasks that demand consistent brightness. The 150W incandescent lamp with a medium base delivers familiar, easily replaceable bulbs and straightforward maintenance, helping minimize inventory complexity and downtime during bulb changes. Wall-mount compatibility and a 2" box depth streamline retrofit and new installs, reducing installation time and non-conformance risk. Operating at 300 VAC and 50/60 Hz, the fixture aligns with standard plant power, enabling plug-and-play integration with existing electrical infrastructure.
Get a Quick Quote for a Eaton 707B7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 707B7?
Enquire Now
FAQs
Installation requires a suitable wall surface and a 2" electrical box depth. Mount the unit using the wall-mount bracket, connect to a 300 VAC supply, and ensure the globe and brass guard are seated securely. Use a medium-base socket and install a compatible A-21 lamp up to 150W. Verify IP66 seals after wiring for dust and water ingress protection.
Key specs include 6.75 in depth, 11.75 in height, 5.13 in width, and 7.25 lb weight. Material is brass with a glass globe and a cast brass guard. It uses a medium base, accepts up to 150W incandescent lamps (A-21), and operates at 300 VAC and 50/60 Hz. Ingress protection is IP66, and it is rated for Ordinary/Non-Hazardous Locations.
Yes. The 707B7 is specified for Ordinary/Non-Hazardous Locations, making it suitable for warehouses, workshops, and general industrial spaces where robust capability and dependable lighting are required without hazardous location restrictions.
The fixture complies with NEC/CEC standards and is rated IP66 for ingress protection, ensuring dust-tight and water-resistant performance. Its Ordinary/Non-Hazardous Location classification aligns with typical factory and facility lighting applications, supporting regulatory compliance and safe operation in standard industrial environments.
Maintenance benefits come from a durable brass guard and glass globe that resist impact and corrosion, reducing replacement frequency. The 150W incandescent lamp is widely available, supporting low bulb-costs and quick replacements. Wall-mount design minimizes retrofit time, lowering total installation costs and improving uptime in warehouses and maintenance bays.
