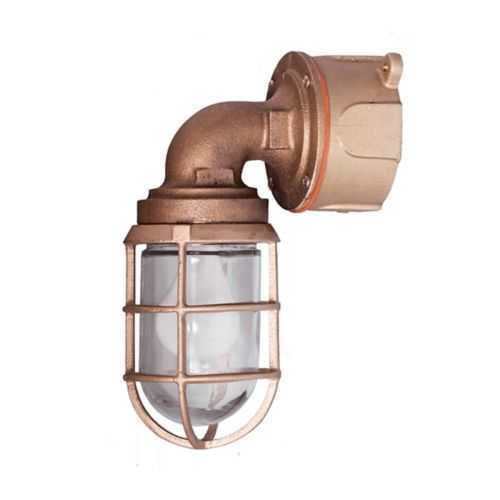

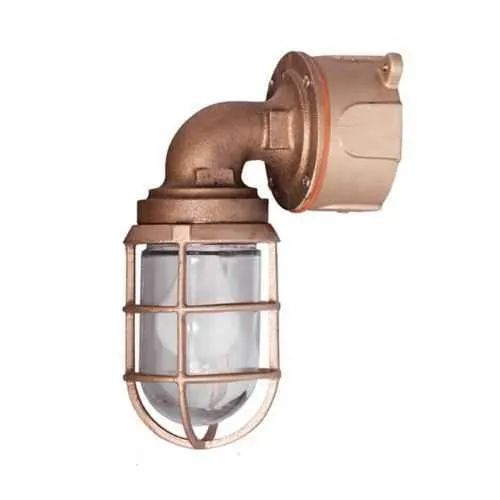

Eaton 707B7TGRN Globe & Guard Wall Mount - IP66
Part Number: 707B7TGRN
Quick Summary
The Eaton 707B7TGRN Globe & Guard is a rugged wall-mount lighting fixture designed for industrial environments. In demanding spaces, unreliable lighting leads to safety risks and maintenance bottlenecks. It carries IP66 ingress protection, NEC/CEC compliance, and an Ordinary/Non-Hazardous location rating to meet common codes. Designed for compatibility with up to 150 W A-21 incandescent lamps, this brass-guarded globe unit delivers long life and predictable performance, reducing downtime. For engineers and procurement teams, the combination of rugged protection and straightforward wall-mounted installation translates to lower maintenance costs and faster project delivery in factories, warehouses, and other industrial facilities.
Product Information
Extended Description
707B7TGRN Eaton: Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Green glass globe, With cast brass guard, Incandescent, Brass, A-21 max. lamp size, Wall mount, 4-pole terminal block, 300 Vac, 150W
Product Name
Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard
Catalog Number
707B7TGRN
UPC
662276385108
Product Length/Depth
6.75 in
Product Height
11.75 in
Product Width
5.13 in
Product Weight
9.55 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Lamp type
Incandescent
Wattage
150W
Lamp size - max
A-21
Box depth
2"
Base type
Medium
Globe color
Green
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Special features
4-pole terminal block
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1385 - Pauluhn 707 Wall Mount Incandescent
Eaton Specification Sheet - 707B7TGRN
Feature: Brass guard and glass globe protect the lamp from impact and dust intrusion; Business Impact: Reduces bulb breakage and maintenance cycles, improving overall equipment reliability; Application: Ideal for high-traffic manufacturing floors and crowded production lines where durability matters. Feature: Wall mounting with a 2" box depth and medium base; Business Impact: Simplifies retrofits and new installs, enabling quicker commissioning and fewer field modifications; Application: Retrofit projects in brick, concrete, or steel-walled facilities. Feature: 4-pole terminal block; Business Impact: Provides secure, multi-conductor wiring and easier field connections, lowering electrical commissioning time; Application: Factory control panels and enclosures with standard 300 VAC service. Feature: IP66 ingress protection; Business Impact: Withstands dust and powerful water jets during washdowns or harsh environments, reducing cleaning downtime; Application: Laundry, washdown zones, or outdoor-oriented spaces in ordinary locations. Feature: Brass guard and guard material; Business Impact: Superior corrosion resistance and long-term durability in non-hazardous environments; Application: Industrial plants with corrosive dust or humidity concerns. Feature: Glass globe, green color; Business Impact: Consistent light diffusion and distinctive visibility for area lighting; Application: Signage-friendly or marker illumination in industrial settings. Feature: 150W incandescent lamp capacity, A-21 max; Business Impact: Familiar, easy-to-source replacement lamps for reliable maintenance cycles; Application: Standard industrial lighting schemes requiring robust, readily replaceable lamps.
Get a Quick Quote for a Eaton 707B7TGRN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 707B7TGRN?
Enquire Now
FAQs
Installation begins with selecting a suitable wall surface and ensuring a 2" box depth accommodates the unit. Mount the housing to the wall, connect the 4-pole terminal block to a 300 VAC supply, and insert an A-21 max lamp. Secure the brass guard and green glass globe, verify IP66 seals, and test with the supplied instructions to confirm safe operation.
The 707B7TGRN is rated for 300 VAC operation at 50/60 Hz and supports incandescent lamps up to 150W (A-21 max). It uses a 4-pole terminal block for wired connections, and its medium base accepts standard, readily available lamps, simplifying maintenance and stocking.
Yes. This Pauluhn globe and guard is specified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. Its IP66 rating provides robust protection against dust and water jets, making it appropriate for general industrial spaces without hazardous classifications.
Its wall-mount configuration with a compact 2" box depth facilitates retrofits into existing enclosures or walls. The 6.75" length, 11.75" height, and 5.13" width align with common industrial footprints, and the 4-pole terminal block supports straightforward wiring to standard 300 VAC circuits, reducing installation time.
The brass guard and glass globe protect the lamp from impact, reducing replacement frequency in busy facilities. IP66 protection eases cleaning in washdown areas, lowering downtime. Compatibility with readily available 150W incandescent lamps simplifies stocking and maintenance, delivering predictable lifecycle costs and faster project ROI.
