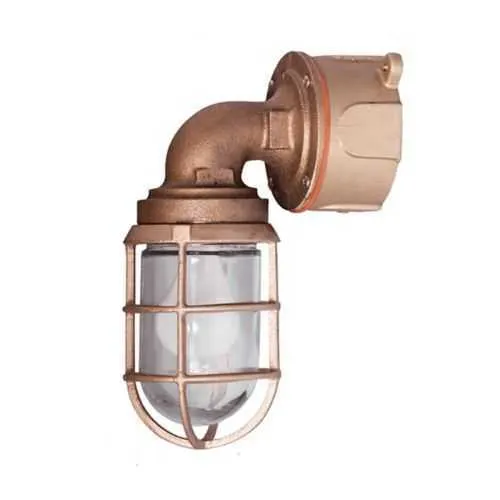

Eaton 707BF Industrial Globe and Guard - IP66
Part Number: 707BF
Quick Summary
Eaton Crouse-Hinds Pauluhn 707 industrial globe and guard provides rugged flush-mount illumination for non-hazardous industrial spaces. Maintenance teams often struggle with fixture durability, glass breakage, and wiring compatibility in harsh environments. This model delivers IP66 ingress protection, NEC/CEC compliance, and Ordinary/Non-Hazardous location suitability, reducing downtime and risk. Designed for flush mounting in 2-3/8 inch box depths, the 707BF aligns with existing Pauluhn housings and offers straightforward replacement paths. Engineers appreciate documented installation resources and compatibility with 50/60 Hz electrical systems, delivering reliable operation and a favorable total cost of ownership. This combination supports higher uptime, predictable maintenance schedules, and safer lighting in manufacturing and processing facilities.
Product Information
Extended Description
707BF Eaton: Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard, Medium base, 2-3/8" box depth, 50/60 Hz, Glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Flush mount, 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard
Catalog Number
707BF
UPC
662276385146
Product Length/Depth
7.25 in
Product Height
11 in
Product Width
5.63 in
Product Weight
8.25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Flush
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Box depth
2-3/8"
Base type
Medium
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Eaton Crouse-Hinds 707BF 3D drawing
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1386 - Pauluhn 707 Flush Mount Incandescent
Eaton Specification Sheet - 707BF
IP66 ingress protection combined with a cast brass guard provides durable protection against dust, water jets, and impact. This translates to higher uptime and reduced maintenance costs in manufacturing floors, processing plants, and outdoor enclosures. In practice, users can rely on fewer lamp replacements and safer operation. Glass globe with brass guard shields the lamp from incidental contact and mechanical abuse, leading to longer lamp life and safer maintenance in high-traffic facilities. Two 27W incandescent lamps on a medium base deliver balanced brightness with familiar performance, supporting legacy electrical infrastructures while keeping energy use predictable. The flush mounting with a 2-3/8 inch box depth enables compact retrofits in tight ceilings, control panels, and shallow luminaires, simplifying installation without invasive remodeling. NEC/CEC compliance and IP66 rating reduce regulatory risk and enable quicker approvals in general industry environments. Documentation and compatible accessories, including catalogs, datasheets, and installation sheets, support streamlined procurement and faster field deployment. This combination of robustness and practical design aligns with typical industry renewal cycles and total cost of ownership considerations for mid-market facilities.
Get a Quick Quote for a Eaton 707BF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 707BF?
Enquire Now
FAQs
The 707BF is designed for flush mounting in a 2-3/8 inch box depth with a total footprint that suits Pauluhn housing configurations. It offers a compact 7.25 inch length, 11 inch height, and 5.63 inch width, making it compatible with standard medium-base luminaires and existing Pauluhn 707 series enclosures. The unit is ready for straightforward installation using typical electrical boxes and fixtures in non-hazardous locations, minimizing retrofit complexity.
Electrical specifications include 300 VAC operation at 50/60 Hz. The fixture supports a two-lamp configuration of 27 W each (2 x 27W) using incandescent lamps with an A-19 maximum size on a medium base. This combination provides reliable illumination for industrial spaces while maintaining familiar ballast-free operation, simplifying maintenance and lamp replacement strategies.
Yes. The 707BF is specified for Ordinary/Non-Hazardous Locations and carries NEC/CEC standards. Its IP66 rating ensures protection against dust ingress and water exposure in typical manufacturing and warehousing environments, making it suitable for general production floors, storage areas, and semi-exposed indoor spaces that do not require hazardous-location compliance.
The 707BF complies with NEC/CEC standards and carries an IP66 ingress protection rating. It is designed for ordinary locations, aligning with typical electrical and industrial compliance requirements. The brass guard and glass globe provide mechanical protection for lamp life and operator safety, while the flush-mount design supports code-compliant installations in a broad range of facilities.
The brass guard and glass globe offer robust protection against impact and breakage, reducing lamp replacement frequency and related downtime. The flush-mount design facilitates easier installation and service access, while compatibility with standard incandescent lamps ensures predictable replacement parts and a lower total cost of ownership in mid-market facilities.
