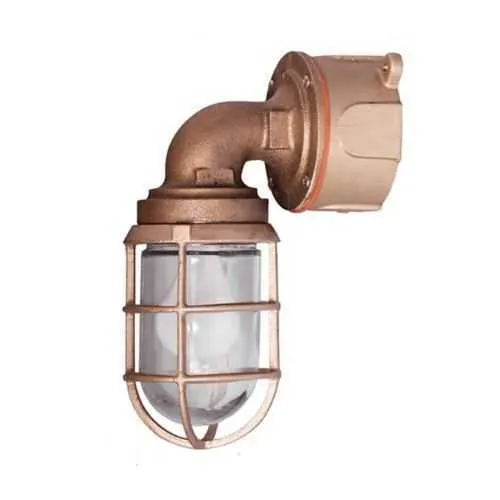

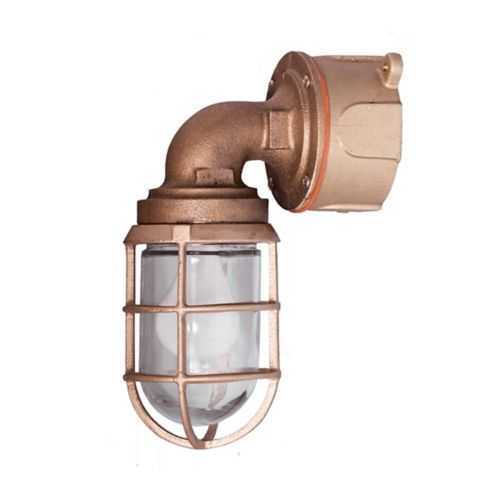

Eaton 707BYEL Industrial Globe and Guard - IP66
Part Number: 707BYEL
Quick Summary
Eaton 707BYEL industrial globe and guard provides rugged wall-mounted illumination for industrial enclosures. Maintenance teams often struggle with protecting glass globes from impact and sealing against dust in harsh environments. This luminaire meets NEC/CEC standards, IP66 ingress protection, and Ordinary/Non-Hazardous Location classifications, helping you stay compliant and reduce downtime. Designed for compatibility with 2x27W incandescent lamps and a medium base, it delivers reliable, long-life performance with minimal maintenance. This makes it a dependable choice for durable industrial lighting fixtures in warehouses, mechanical rooms, and service bays, aligning with procurement goals for uptime and total cost of ownership.
Product Information
Extended Description
707BYEL Eaton: Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Yellow glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Wall mount, 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard
Catalog Number
707BYEL
UPC
662276385245
Product Length/Depth
6.75 in
Product Height
11 in
Product Width
5.13 in
Product Weight
9.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Box depth
2"
Base type
Medium
Globe color
Yellow
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1385 - Pauluhn 707 Wall Mount Incandescent
Eaton Specification Sheet - 707BYEL
The brass body and cast brass guard deliver robust mechanical protection, reducing the risk of glass breakage in busy work environments and extending service intervals. With an IP66 rating, the unit resists dust ingress and water jets, making it suitable for non-hazardous spaces where moisture exposure is a concern, while supporting straightforward installation in walls with a 2" box depth. The luminaire supports 2 x 27W incandescent lamps on a medium base, providing predictable lumen output and broad lamp compatibility, which translates to lower maintenance costs and simplified parts inventory. A yellow glass globe enhances visibility and signaling, and the brass guard combines durability with a traditional aesthetic used across industrial facilities. Its compact footprint—6.75 in depth, 11 in height, 5.13 in width, and 9.7 lb weight—facilitates mounting in tight spaces and eases retrofit projects. Standards compliance (NEC/CEC) and the Ordinary/Non-Hazardous Location classification further support procurement requirements for compliant, reliable lighting in general industrial environments.
Get a Quick Quote for a Eaton 707BYEL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 707BYEL?
Enquire Now
FAQs
Install on a wall using a standard 2" box depth. Plan for a medium base lamp (A-19 max) and ensure the mounting surface can support the 9.7 lb weight. The unit operates at 300 Vac and 50/60 Hz, with an IP66 rating providing protection against dust and water jets in ordinary location environments.
The fixture supports 2 x 27W incandescent lamps with a medium base, suitable for typical industrial inventories. It uses a brass guard and brass housing, with a yellow glass globe. Rated at 300 Vac and 50/60 Hz, it is designed for reliable wall-mounted operation in non-hazardous facilities.
Yes. It is classified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, delivering dependable lighting in general industrial spaces without requiring specialized hazard-area certifications.
The unit accepts incandescent lamps with a 2 x 27W rating and an A-19 max size on a medium base. Replacement bulbs are widely available, enabling straightforward maintenance and predictable lumen output for routine facility lighting.
Downloadable guides include the Pauluhn 700 Globe and Guard catalog pages, IF LBL1385 installation instructions for Pauluhn 707 Wall Mount Incandescent, and the Eaton specification sheet for 707BYEL, providing detailed installation steps and full specifications.
