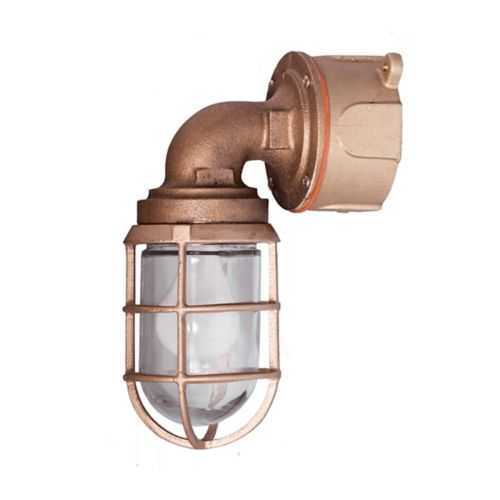

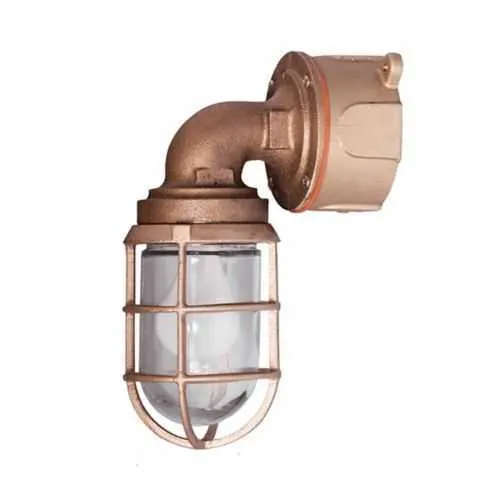

Eaton 707BYEL-C1 Industrial Globe and Guard - IP66
Part Number: 707BYEL-C1
Quick Summary
Eaton 707BYEL-C1 industrial globe and guard provides dependable wall-mounted illumination for industrial spaces. In harsh facilities, glass globes can shatter, compromising visibility and safety; this unit minimizes downtime with a robust brass guard and yellow glass globe. It carries IP66 ingress protection, NEC/CEC compliance, and Ordinary/Non-Hazardous area classification, helping you meet code requirements while reducing maintenance risk. Designed for through-feed wiring and a two-lamp configuration, it accepts up to 2 x 27 W incandescent lamps with a max A-19 size, delivering solid performance in a compact 6.75 in depth. For procurement and maintenance teams, the brass guard and wall-mount design translate to easier installation, lower replacement costs, and longer service life in demanding environments.
Product Information
Extended Description
707BYEL-C1 Eaton: Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard, Medium base, 2" box depth, 50/60 Hz, Yellow glass globe, With cast brass guard, Incandescent, Brass, A-19 max. lamp size, Wall mount, Through feed, 1/2", 300 Vac, 100W
Product Name
Eaton Crouse-Hinds series Pauluhn 707 industrial globe and guard
Catalog Number
707BYEL-C1
UPC
662276385252
Product Length/Depth
6.75 in
Product Height
11 in
Product Width
5.13 in
Product Weight
9.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting Method
Wall
Lamp type
Incandescent
Wattage
2 x 27W
Lamp size - max
A-19
Box depth
2"
Trade size
1/2"
Base type
Medium
Globe color
Yellow
Globe material
Glass
Guard type
With cast guard
Guard material
Brass
Voltage rating
300 Vac
Frequency rating
50/60 Hz
Special features
Through feed
Crouse-Hinds series Pauluhn 700 Globe and Guard catalog pages
IF LBL1385 - Pauluhn 707 Wall Mount Incandescent
Eaton Specification Sheet - 707BYEL-C1
Brass construction and a cast brass guard deliver robust mechanical protection: the guard shields the glass globe from impacts and debris, lowering the risk of lamp failure in busy production areas. This translates to fewer maintenance cycles and longer asset life, with clear financial benefits for conveyors, machine enclosures, and electrical panels. IP66 ingress protection combines with durable materials to resist dust and water exposure, boosting uptime in dusty, washdown-ready environments and helping you meet NEC/CEC requirements without sacrificing performance. Through-feed wiring and a 1/2" trade size simplify installation and retrofit, reducing labor time and project costs for upgrades or relocations. Two 27 W incandescent lamps offer familiar replacement options and good color rendering, while a max A-19 size ensures stock compatibility across facilities. The yellow glass globe enhances visibility for operators, supporting safer, more efficient workflows across non-hazardous zones. Wall mounting, a 6.75 in depth, and a 11 in height deliver a compact form factor that fits tight spaces and supports scalable plant illumination.
Get a Quick Quote for a Eaton 707BYEL-C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 707BYEL-C1?
Enquire Now
FAQs
The 707BYEL-C1 is designed for wall mounting with a 1/2" trade size conduit connection and through-feed wiring. Install on a sturdy wall surface using the provided mounting pattern, ensure 300 VAC supply and 50/60 Hz compatibility, and connect via through-feed wiring to maintain the 2 x 27W incandescent configuration. Use a brass guard for protection and verify IP66 seals after assembly to prevent dust and water ingress.
Key specs include two 27W incandescent lamps (total 54W), max lamp size A-19, brass globe with yellow glass, wall mounting, 300 VAC voltage, and 50/60 Hz frequency. The unit features IP66 ingress protection and an ordinary/non-hazardous area classification, supporting reliable operation in non-hazardous industrial environments with NEC/CEC compliance.
Yes. The luminaire is rated for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards, making it appropriate for general industrial spaces such as equipment rooms and wall-mounted enclosures. Its IP66 protection and brass guard provide robust protection against dust and impact, improving uptime in non-hazardous zones where reliability is critical.
The 707BYEL-C1 features IP66 ingress protection, NEC/CEC standards compliance, and an Ordinary/Non-Hazardous Location classification. Its brass guard and glass globe are designed for impact resistance, while through-feed wiring supports reliable electrical connections. These aspects collectively ensure safer operation, easier compliance, and lower maintenance in typical plant settings.
Maintenance benefits come from a rugged brass guard that minimizes glass globe damage and a durable finish suitable for harsh environments. With two readily available 27W incandescent lamps, stocking and replacing lamps is straightforward, reducing downtime. The IP66 protection and wall-mount design also shorten installation time for retrofits, contributing to lower total cost of ownership and improved plant uptime.
