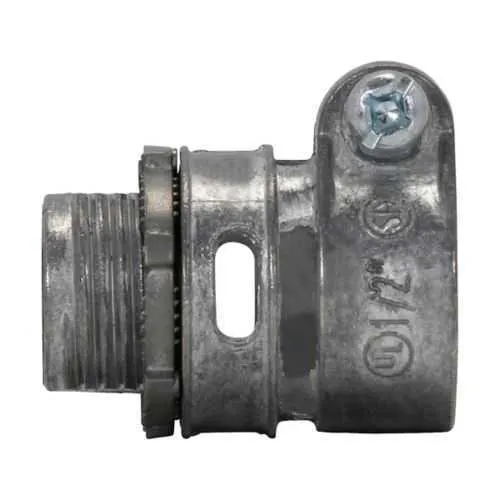

Eaton 709DC Squeeze Type Connector - FMC, Straight, Zinc
Part Number: 709DC
Quick Summary
The Eaton 709DC squeeze type connector securely joins FMC conduit in electrical panels, enabling reliable, vibration-resistant terminations in machine control enclosures. Its straight, non-insulated design minimizes misfits and reduces field rework when installing control wiring, while the 3/4 inch trade size supports standardized sizing in cabinet runs. The product aligns with NEC/CEC standards and UL certification for FMC connectors, while its ordinary/non-hazardous location rating underpins safe operation across industrial environments and maintenance cycles. With a compact footprint and zinc die-cast construction, the 709DC offers durable performance in tight panels and high-traffic installations, helping reduce downtime and total ownership costs through fewer replacements and quicker assemblies.
Product Information
Extended Description
709DC Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Non-insulated, Zinc die cast, 3/4"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
709DC
UPC
784564003348
Product Length/Depth
1.6 in
Product Height
1.23 in
Product Width
1.23 in
Product Weight
0.095 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Zinc die cast
Connector type
Straight
Insulator
Non-insulated
Trade size
3/4"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 709DC
