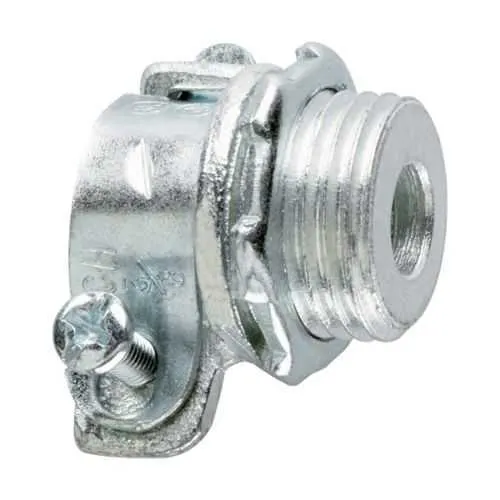

Eaton 712 Squeeze Type Connector - FMC, Straight (NEC/CEC)
Part Number: 712
Quick Summary
The Eaton Crouse-Hinds squeeze type connector provides a robust FMC conduit junction for straight runs in non-hazardous, general duty applications. Installers often confront compatibility gaps, slow assembly, or leaks in tight spaces, and this squeeze-type design minimizes field adjustments. NEC/CEC compliance and area classifications for ordinary locations ensure code-ready installation from the lab to the rack. By leveraging a malleable iron body and a 1-1/2 inch trade size, the connector delivers durable performance with fewer field repairs. For procurement and maintenance teams, this translates to lower inventory variety, predictable assembly times, and long-term cost savings. That means faster panel builds and fewer commissioning delays.
Product Information
Extended Description
712 Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Non-insulated, Malleable iron, 1-1/2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
712
UPC
784564107121
Product Length/Depth
2.5 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
0.79 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Malleable iron
Connector type
Straight
Insulator
Non-insulated
Trade size
1-1/2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC Canadian certification
Connectors and Couplings - FMC Canadian certification
Eaton Specification Sheet - 712
Feature: FMC conduit compatibility with a straight, squeeze-type design. Benefit: simplifies and speeds installation while ensuring a tight, reliable seal in general-duty environments. Application: control panels and equipment racks in ordinary locations where space is constrained and fast wiring is essential. Feature: Malleable iron body provides rugged durability. Benefit: resists impact and wear in industrial environments, reducing replacement costs. Application: harsh factory floors and service sections with occasional vibration. Feature: Non-insulated construction for straightforward assembly. Benefit: eliminates extra insulation steps, cutting labor time and potential insulation damage. Application: clean-room-adjacent or non-hazardous zones where insulation is not required. Feature: Trade size 1-1/2 inch with catalog number 712. Benefit: ensures compatibility with standard FMC conduits and wide compatibility across stocking channels. Application: medium-size feeder runs and cabinet wiring. Feature: Meets NEC/CEC standards and ordinary location classifications. Benefit: lowers regulatory risk and accelerates approvals during audits. Application: industrial automation panels aligned to common electrical codes. Feature: Compact dimensions 2.5 in length and 2.25 in width/height, weight 0.79 lb. Benefit: easy handling, reduced labor for installation, and space-efficient panel layouts. Application: densely populated control cabinets where space is at a premium.
Get a Quick Quote for a Eaton 712
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 712?
Enquire Now
FAQs
To install the 712 squeeze type connector, align the FMC conduit with the straight connector, tightened the squeeze nuts evenly until the body compresses around the conductor, and verify a secure seal. The malleable iron body provides rugged support, while the non-insulated design streamlines assembly in ordinary-location environments.
Key specs include FMC conduit type, straight style, non-insulated configuration, malleable iron material, 1-1/2 inch trade size, catalog number 712, overall dimensions of 2.5 in length, 2.25 in height and width, and a weight of 0.79 lb. It supports NEC/CEC standards and is intended for ordinary/non-hazardous locations.
Yes. The 712 squeeze type connector is designed for ordinary/non-hazardous locations, aligning with NEC/CEC standards and suitable for general automation panels, control cabinets, and other non-hazardous FMC conduit installations.
This connector adheres to NEC/CEC standards, providing code-compliant, reliable connections for FMC conduit in non-hazardous areas. The area classification and compliant construction help streamline audits and installations across U.S. and Canadian facilities.
The 712 connector reduces inventory variety with a standard 1-1/2 inch FMC fit, speeds up panel assembly, and lowers commissioning time. The durable malleable iron body minimizes replacement frequency, delivering lower maintenance costs and faster return on investment for automation projects.
