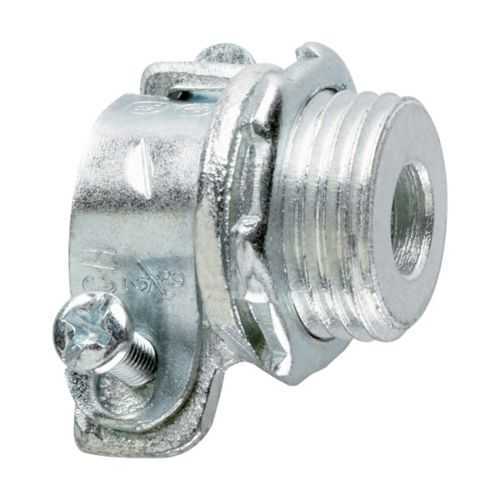

Eaton 713 Squeeze Type Connector - FMC, 2 in Trade - NEC/CEC
Part Number: 713
Quick Summary
Eaton 713 squeeze type connector is a rugged FMC interface designed for straight connections in control panels and equipment. Engineers often struggle with loose fittings and unreliable seals in conduit runs, leading to downtime and maintenance costs. This connector aligns with NEC/CEC standards and is approved for Ordinary/Non-Hazardous Locations, with UL certifications for FMC components, ensuring regulatory and safety compliance. The solution delivers a compact malleable iron housing with predictable installation and compatibility with existing Eaton Crouse-Hinds FMC catalogs, providing long-term reliability. With a 2 inch trade size and straight configuration, it supports robust, versatile wiring for industrial equipment while reducing inventory complexity and installation time.
Product Information
Extended Description
713 Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Non-insulated, Malleable iron, 2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
713
UPC
784564107138
Product Length/Depth
2.75 in
Product Height
2.69 in
Product Width
2.69 in
Product Weight
1.01 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Malleable iron
Connector type
Straight
Insulator
Non-insulated
Trade size
2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 713
Feature: Squeeze-type connector housing in malleable iron provides a rugged, vibration-resistant enclosure. Business Impact: Improves connection integrity in FMC runs, reducing maintenance cycles and unexpected downtime. Application: Ideal for panel wiring and equipment junctions in industrial environments where vibration is common. Feature: Straight connector design simplifies routing and alignment for FMC conduits. Business Impact: Lowers installation time and error rates, enabling faster panel builds and field retrofits. Application: Suitable for direct runs between enclosures and devices with minimal bending. Feature: Non-ins insulated construction with a 2 inch trade size offers straightforward compatibility. Business Impact: Reduces part counts and procurement costs while fitting standard FMC cable schedules. Application: Common in standard control systems and machine wiring where insulation is not required. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification with UL certification. Business Impact: Provides regulatory confidence and safer deployment in typical facility settings, mitigating compliance risk. Application: Suitable for general industry installations in non-hazardous locations. Feature: Comprehensive specification alignment with FMC, straight style, malleable iron, and 2 in trade size. Business Impact: Streamlines design and BOM processes by offering a single, verified connector for typical Eaton/Crouse-Hinds FMC needs. Application: Widely used in control panels, motors, and equipment enclosures requiring durable, code-compliant FMC connections.
Get a Quick Quote for a Eaton 713
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 713?
Enquire Now
FAQs
The 713 is a straight FMC squeeze-type connector with a malleable iron housing designed for 2 in trade size conduit. It mates with standard FMC runs in control panels and equipment enclosures, providing a robust, non-insulated connection. Its compatibility with Eaton Crouse-Hinds FMC catalog parts simplifies design, procurement, and field installations while meeting NEC/CEC requirements for ordinary locations.
Install by aligning the straight connector with the FMC conduit run, ensuring a secure squeeze fit to establish a tight enclosure seal in ordinary locations. Verify the non-insulated interface and malleable iron housing for mechanical strength. Follow NEC/CEC guidelines and UL certification requirements to maintain compliance, and reference Eaton’s specification sheet for exact torque and assembly guidance.
The 713 is specified for Ordinary/Non-Hazardous Locations and does not provide hazardous-location ratings or IP protection in its data. For outdoor or hazardous environments, choose alternative connectors with appropriate weatherproofing and explosion-proof ratings. Always confirm site classification and applicable standards before deployment to ensure safety and compliance.
The 713 is NEC/CEC compliant for ordinary locations and is UL certified for FMC components, with area classification suitable for Ordinary/Non-Hazardous Locations. This combination supports regulatory compliance in typical industrial facilities and commercial settings, helping to streamline approvals, documentation, and ongoing maintenance.
Key specs include a 2 in trade size, FMC conduit type, straight connector style, malleable iron material, and a non-insulated insulator. It weighs approximately 1.01 lb and fits standard FMC runs used in control panels and equipment enclosures. Ensure compatibility with Eaton Crouse-Hinds FMC catalog parts and adhere to NEC/CEC requirements for reliable, code-compliant installations.
