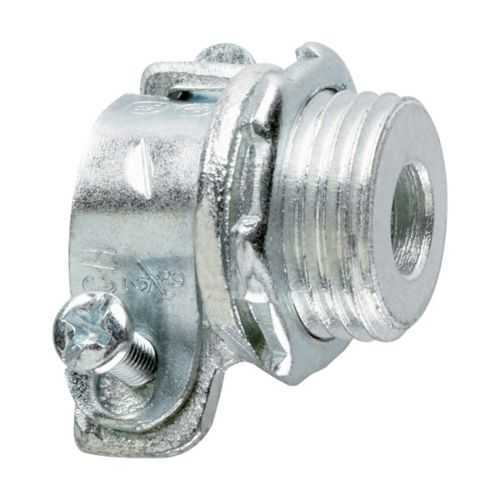

Eaton 714 Squeeze Type Connector - FMC, Non-Insulated, 2-1/2in Trade Size
Part Number: 714
Quick Summary
The Eaton 714 Squeeze Type Connector is a rugged FMC conduit connector that enables straight, secure terminations in non-hazardous locations. Engineers often wrestle with compatibility, installation speed, and regulatory traceability when selecting FMC connectors for critical runs. This model aligns with NEC/CEC standards and carries UL certification for FMC assemblies, while its ordinary/non-hazardous area classification supports safe field use. By combining a durable malleable-iron body with a straightforward squeeze installation, the 714 delivers consistent electrical performance and reduced procurement complexity, making it a reliable choice for Crouse-Hinds series installations and other FMC conduit projects.
Product Information
Extended Description
714 Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Non-insulated, Malleable iron, 2-1/2"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
714
UPC
784564107145
Product Length/Depth
2.94 in
Product Height
3.31 in
Product Width
3.31 in
Product Weight
1.61 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Malleable iron
Connector type
Straight
Insulator
Non-insulated
Trade size
2-1/2"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC UL certification
Connectors and Couplings - FMC UL certification
Eaton Specification Sheet - 714
Feature: Squeeze-type connector in a malleable iron body provides a strong physical grip that tolerates vibration and misalignment. Business Impact: Faster, more predictable installations with fewer reworks and torque-related issues. Application: Straight FMC conduit runs in industrial control panels and equipment bays. Long-tail keywords: FMC conduit connectors, straight squeeze type connector. Feature: 2-1/2-inch trade size and compact footprint streamline field routing and inventory management. Business Impact: Reduced stock variety and faster replacement on-site. Application: Standardized for medium-size FMC runs in machinery and process lines. Long-tail keywords: 2-1/2 trade size, malleable iron conduit connector. Feature: Non-insulated design simplifies inspection and meets industry norms for certain FMC assemblies. Business Impact: Simplified maintenance checks and fewer insulation-related failure modes. Application: Enclosures and junctions in Ordinary/Non-Hazardous Locations. Long-tail keywords: non-insulated connector, enclosure fittings. Feature: NEC/CEC compliance with UL certification reinforces regulatory alignment and safety documentation. Business Impact: Lower risk of non-compliance audits and enhanced customer confidence. Application: Automotive, food & beverage, and general industrial equipment where NEC/CEC are mandated. Long-tail keywords: NEC/CEC compliant, UL listed FMC connectors. Feature: Crouse-Hinds series compatibility ensures seamless integration with existing Eaton/Conduit systems. Business Impact: Faster specification-to-installation cycles and reduced engineering checks. Application: Wiring & Connectivity workflows needing proven compatibility. Long-tail keywords: Crouse-Hinds series connectors, FMC compatibility, wiring & connectivity.
Get a Quick Quote for a Eaton 714
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 714?
Enquire Now
FAQs
The 714 is a straight, squeeze-type connector designed for FMC conduit in non-hazardous locations. Plan for a direct run with a firm grip on the malleable-iron body, ensuring proper alignment before tightening the squeeze mechanism. Its 2-1/2" trade size suits medium-radius runs and simplifies field modifications.
Yes. The Eaton 714 is NEC/CEC compliant and UL certified for FMC connections, supporting regulatory compliance across US and Canadian projects. This helps reduce audit findings and speeds up approval in control panels and equipment housings.
The 714 uses a malleable iron body with a non-insulated insulator and straight connector configuration. This combination provides robust mechanical strength, straightforward assembly, and compatibility with Crouse-Hinds FMC series installations while keeping the footprint compact for 2-1/2" trade-size lines.
Ideal for straight FMC conduit terminations in ordinary/non-hazardous locations such as control panels, machine enclosures, and process equipment. Its Squeeze style and 2-1/2" trade size make it a common choice for medium-length runs requiring durable, quick-install connections within the Crouse-Hinds family.
The squeeze-type design enables faster installations with repeatable results and reduced torque issues. Its UL/NEC/CEC compliance supports ongoing regulatory maintenance, while the non-insulated construction simplifies inspections and future retrofit work, delivering lower lifecycle costs in FMC conduit projects.
