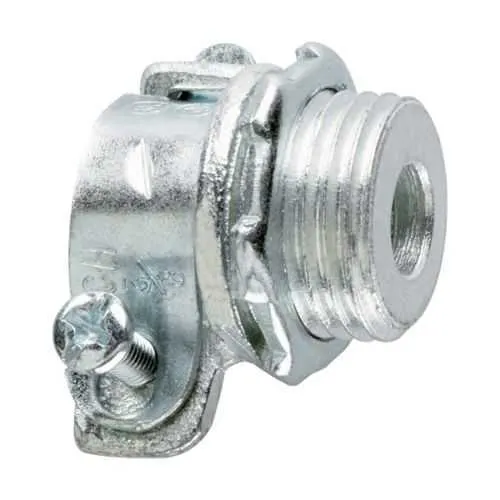

Eaton 715 Squeeze Connector - FMC Straight, 3" Trade Size
Part Number: 715
Quick Summary
The Eaton 715 squeeze type connector is a rugged FMC straight connector designed for secure cable entry in industrial control panels and equipment. Installers often confront misalignment, inconsistent compression, and slow field terminations; this design delivers a repeatable, tool-assisted squeeze for reliable terminations that minimize rework. It complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, supporting code-compliant installations in demanding environments. By leveraging the Eaton Crouse-Hinds family and FMC conduit ecosystems, it enables faster installs, fewer fittings, and lower lifecycle costs for rugged automation projects in manufacturing, process, and packaging environments.
Product Information
Extended Description
715 Eaton: Eaton Crouse-Hinds series squeeze type connector, FMC, Straight, Non-insulated, Malleable iron, 3"
Product Name
Eaton Crouse-Hinds series squeeze type connector
Catalog Number
715
UPC
784564107152
Product Length/Depth
3.19 in
Product Height
3.88 in
Product Width
3.88 in
Product Weight
2.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
FMC
Style
Squeeze
Material
Malleable iron
Connector type
Straight
Insulator
Non-insulated
Trade size
3"
Crouse-Hinds series Connectors and Couplings - FMC catalog page
Connectors and Couplings - FMC Canadian certification
Connectors and Couplings - FMC Canadian certification
Eaton Specification Sheet - 715
Feature: Squeeze-type design provides controlled compression and a repeatable termination, reducing field rework and downtime. Business Impact: Faster installations with lower labor cost and greater reliability across vibration-heavy panels. Application: Ideal for FMC conduit terminations in control cabinets and motor control centers, supporting long-term performance in harsh environments. Long-tail keywords: FMC conduit connectors, squeeze type connectors for FMC, Eaton Crouse-Hinds, malleable iron fittings. Feature: Malleable iron construction delivers superior mechanical strength and durability. Business Impact: Withstands repeated assembly cycles and rough handling in factory floors, improving overall equipment uptime. Application: Industrial automation enclosures where impact resistance matters. Long-tail keywords: durable FMC connectors, malleable iron conduit fittings. Feature: Non-insulated, straight connector design with 3" trade size simplifies routing and reduces parts count. Business Impact: Accelerates layout planning and reduces inventory needs. Application: Compact control panels and enclosure installations in automation lines. Long-tail keywords: straight FMC connectors, 3-inch trade size connectors. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location classification ensure code-conforming installations. Business Impact: Minimizes compliance risk and accelerates approvals for industrial facilities. Application: Panels and cabinets in manufacturing environments with strict codes. Long-tail keywords: NEC compliance, CEC standards, ordinary location wiring. Feature: UPC 784564107152 and Catalog Number 715 enable straightforward procurement and traceability. Business Impact: Streamlined sourcing and consistent bill-of-materials across projects. Application: Global deployments requiring reliable supplier documentation. Long-tail keywords: FMC connector catalog 715, UPC lookup, component traceability.
Get a Quick Quote for a Eaton 715
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 715?
Enquire Now
FAQs
To install the Eaton 715, verify FMC compatibility, prepare the conduit, and align the connector to the mating conduit. Use the appropriate squeeze tool to apply consistent compression until the fit is tight and the connector seats fully. Verify with the catalog specifications (715) and ensure the UPC is recorded for traceability. This reduces rework and ensures a reliable, code-compliant termination in control panels.
Yes. The 715 is designed to meet NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. It is intended for non-hazardous environments, supporting compliant terminations in typical industrial panels and enclosures without special enclosure ratings. Always verify site-specific requirements and local amendments to ensure full compliance.
The 715 connector is a straight, squeeze-type FMC connector made from malleable iron with a non-insulated insulator. It has a 3-inch trade size, a length of 3.19 inches, and overall dimensions of 3.88 inches in width and height, with a weight of 2.2 pounds. UPC is 784564107152, and catalog number is 715, enabling precise ordering and compatibility checks.
Compatibility is best ensured by using the Eaton Crouse-Hinds FMC family components together to maintain consistent termination performance and code compliance. While FMC connectors share a common conduit standard, mixing brands can introduce differences in fit and compression characteristics. For best results, source the entire junction set from Eaton Crouse-Hinds when possible.
The 715 offers faster, tool-assisted terminations that reduce installation time and rework, lowering labor costs. Its durable malleable iron construction improves vibration resistance and long-term reliability in industrial environments, reducing maintenance calls and downtime. Procurement efficiency is supported by a single catalog number and UPC, simplifying BOMs and inventory management.
